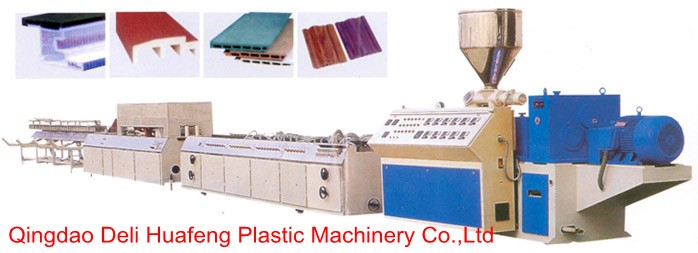

This line is the manufacture facilities of PVC plastic profile material, including window and door series profile plate, sheet, tiny bubble profile and tiny bubble ornament plate. The big shape plastic door and window profile production line is developed by our corporation with introduction of advanced technology form abroad, forming a complete system with twin conical screw extruder, it features high automation degree, smooth work performance, big yield and high efficiency.
|
Item
|
SJYF1
|
SJYF2
|
SJYF3
|
|
Shaping Table Length（mm）
|
1200
|
4000
|
6000
|
|
Vacuum Pump（set）
|
1
|
3
|
4
|
|
Max. Pumping Volume（m/min）
|
0.48
|
10
|
12
|
|
Cross adjustment of Shaping table（mm）
|
80
|
40
|
80
|
|
Up-down Adjustment of Shaping Table（mm）
|
100
|
200
|
200
|
|
Max. Drawing Force（N）
|
3000
|
25000
|
30000
|
|
Max Grip Force（N）
|
2500
|
15000
|
20000
|
|
Drawing Speed（m/min)
|
0.3-4.5
|
0.4-5
|
0.4-4
|
|
Max Cutting Size（mm）
|
100×70
|
210×100
|
210×1200
|
|
Total power（excluding extruder）（kw）
|
5
|
29
|
35
|
|
Overall Dimension（L*W*H）（mm）
|
16000×1200×1600
|
24000×1500×1800
|
28000×1600×1800
|
|
Weight （kg）
|
2000
|
4500
|
6000
|
