Product produced by this line has compact structure, good plastification, high output, long life and other advantages.

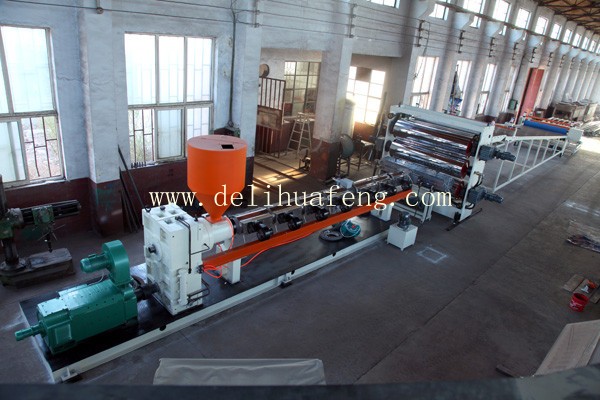

Extruder has high output and stable structure.

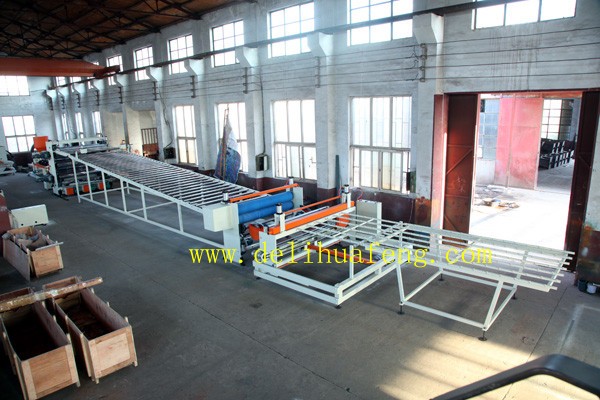

The down stream equipment includes vacuum calibration and cooling unit,hauloff unit, cutting machine and stacker.The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.

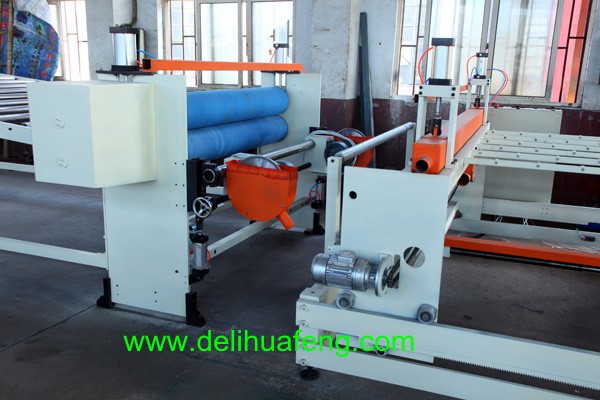

The haul-off unit uses two lines of caterpillar.The lower one is fixed and the upper one can be adjusted according to the plate size.
The cutting machine is equipped with PLC control system which helps to set length and provide accurate automatic cutting.The stacker is covered with rubber grip blocks to prevent products from damage
|
Model Project |
SJBY—1200 | SJBY--1500 | SJBY—2000 |
| Screw diameter / aspect ratio | SJ—90/25~30 | SJ—120/25~33 | SJ—150/25~35 |
| Screw speed ( r.p.m ) | 0~60 | 0~55 | 0~50 |
| Machine center height ( mm ) | 1000 | 1100 | 1100 |
| Output ( kg/h ) | 60~200 | 120~310 | 250~450 |
| Roller specifications ( mm ) | φ300×1500 | φ350×1800 | φ450×2300 |
| Speed (m/min) | 0.5—10 | 0.5—10 | 0.5—10 |
| Total power (kw) | Approximately 130 | Approximately 200 | Approximately 260 |
| The total mass ( kg ) | 10000 | 13000 | 17000 |
| Dimensions ( m ) | 15×3 .2×2 | 18×3.6×2.5 | 23×4.2×2.8 |
