Hollow Wall Winding Pipe Production line

Original Image

Products Visitors:506

Product Name:Hollow Wall Winding Pipe Production line
MODEL:SKRG
SIZE:Min size:21.5X10X2.6
PACKAGE:wood case

Products description: Hollow Wall Winding Pipe Production line

Large-aperture Hollow Wall Winding Pipe Production Line

Save 20% energy, save 30% raw materials, improve 40% efficiency, enhance 30% profit

Fit for HDPE winding type double-wall corrugated pipeline, its technical performance has been confirmed by qualified experts in this industry as supplement in this industry. The pipeline has easy construction, low cost, energy-saving ability, without leakage, as well as light weight, high intensity and high efficiency.
This production line has special design and stable performance, double-wall winding pipeline can be produced if matrix is changed.
● Adopt special high-efficient single-screw extruder advanced shaping and optimized process engineering stem from Germany, ensuring the high-quality and stable extrusion.
●Integrated machine head with spiral rotation is adopted with special design ensuring top-grade quality.
●Adopt advanced PLC computer control system, so the operation is convenient, stable and dependable.
●Special pipeline connection can ensure reliable joint.

Model, Item	Spec of Pipeline(mm)	Extruder				Total installed capacitance of production line(KW)Load rate 50	Max Output (kg/t)	Overall Dimension of unit, Total length of production line (m)length ×width ×height
		Model	L/D Ratio	Motor Power(KW)	Heating Power(KW)
SKRG800	φ300-800	SJ-90×30	30:1	75	30	230	300	21.5×10×2.6
		SJ-65×30	30:1	45	18
SKRG1200	φ300-1200	SJ-90×34	34:1	110	36	330	500	23×10×2.7
		SJ-65×30	30:1	45	18
SKRG1500	φ800-1600	SJ-100×30	30:1	160	36	385	650	28×18×6
		SJ-65×30	30:1	45	18
SKRG2200	φ1500-2200	SJ-120×30	30:1	185	60	420	850	30×20×7
		SJ-65×30	30:1	45	18
SKRG3000	φ2200-3000	SJ-120×30	30:1	220	60	500	1000	32×20×8
		SJ-90×30	30:1	75	30

●With multi-uses in one machine, it can manufacture winding double-wall corrugated pipe and hollow wall winding pipe.

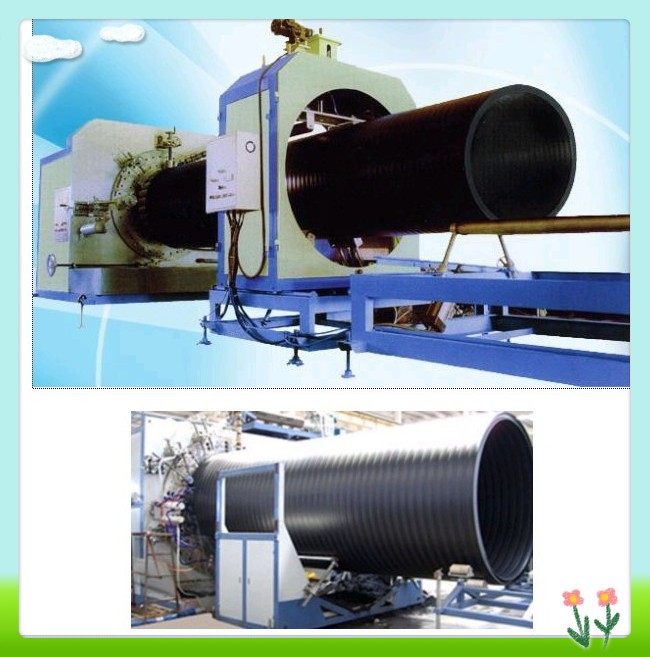

Product Images: Hollow Wall Winding Pipe Production line
