Heating wire has the Uniform compositions, high resistivity, accurate size, long working life, and good technical properties.

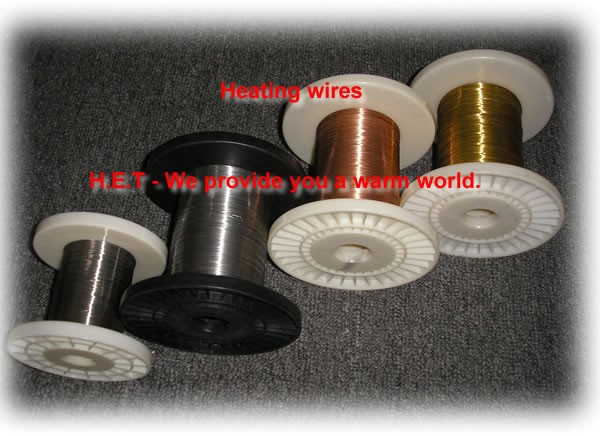

Heating wire
H.E.T Electric heatingg wire is with the high quality alchrome and nickle-chrome alloy which produced by our own company, adopts computer control furnace silk power, winding shaping by the high-speed automatic winding machine. The feature of the product is have withstanding high temperatures, fast temperature rise, long service life, stable resistivity, small power deviation, uniform screw pitch after drawing, and clean surface, widely used in small electric furnace, muffle furnace, heating air-conditioning equipment, all kinds of oven, electrical heated tube, and home appliances ect. Can design and produce all kinds non-standard electric stove strip by customer’s request.
Material
ALCHROME |
NICKECHROME | ||
FULL NAME |
SIMPLE |
FULL NAME |
SIMPLE |
X10CrAl13(oCr13Al1) |
13-1 |
0Cr18Ni9 |
304 |
0Cr10Al2(18SR) |
18-2 |
0Cr19Ni10Mo2Ti |
316 |
00Cr13Al4 |
0013-4 |
00Cr19Ni10Mo2Ti |
316L |
0Cr13Al4 |
13-4 |
Cr25Ni20 |
25-20 |
0Cr15Al5y |
15-5 |
Cr20Ni35D |
20-35D |
0Cr20Al5y |
20-5 |
Cr20Ni35 (N40) |
20-35 |
0Cr25Al5 |
25-5 |
Cr15Ni60 |
15-60 |
0Cr21Al6 |
21-6 |
Cr23Ni60 |
23-60 |
0Cr21Al6NbCo |
21-6NbCo |
Cr20Ni80 |
20-80 |
Type | Cr | NI | Fe |
Cr15Ni60 | 15-18 | 55-61 | rest |
Cr20Ni80 | 20-23 | rest | |
Cr20Ni30 | 18-21 | 30-34 | rest |
Type | Cr15Ni60 | Cr20Ni80 | Cr20Ni30 |
Max continuous service Temp of element(°c): | 1100 | 1150 | 1100 |
Density (g/CM3): | 8.2 | 8.4 | 7.9 |
Melting point (°c) : | 1390 | 1400 | 1390 |
Elongation(%) : | >20 | >20 | >20 |
Resistivity(Ωmm/m2): |
1.12±1.15 | 1.09±1.14 | 1.04±1.06 |
The electrical heating alloys which we supply including nickel base and platinum base alloys. They are widely used in manufacture heating elements in industrical furnace, laboratory furnace and household electrical appliance etc.
