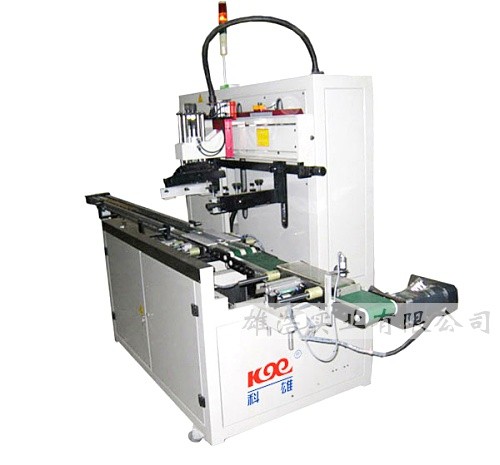

Model |
KX-3050 |
Maximum printing area |
360×120(mm) |
Maximum table surface size |
400×200(mm) |
Maximum screen frame size |
650×250(mm) |
Maximum printing thickness |
0-20(mm) |
Maximum printing speed |
800 times per hour |
Air source |
0.4-0.6Mpa |
Power source |
220V |
Precision |
± |
Machine property:
1. Vertical structure, screen plate lift perpendicularly, printing travel is left/right scratching.
2. Adopt variable frequency motor driver for four directions: top, bottom, left and right.
3. All directions adopt straight line guider.
4. Printing pressure is controlled by Japan SMC cylinder.
5. Micro computer control, human-machine interface, easy and convenient in operation, stable performance.
6. Load material through conveying belt, accurate positioning, and automatic unloading device.
7. Fine adjustment of three directions (X, Y and Z) is set for printing table.
8. Three modes is set for program, containing manual, half automatic and automatic, which will be set according to the production requirements.
9. Be convenient in lifting plate, scraper/covering ink blade, unloading and cleaning.
10. The angle of scraper/covering ink blade is adjustable at will.
11. Left and right screen arm is based on the screen plate, convenient in adjustment.
