Product Model:
JMC-DG60

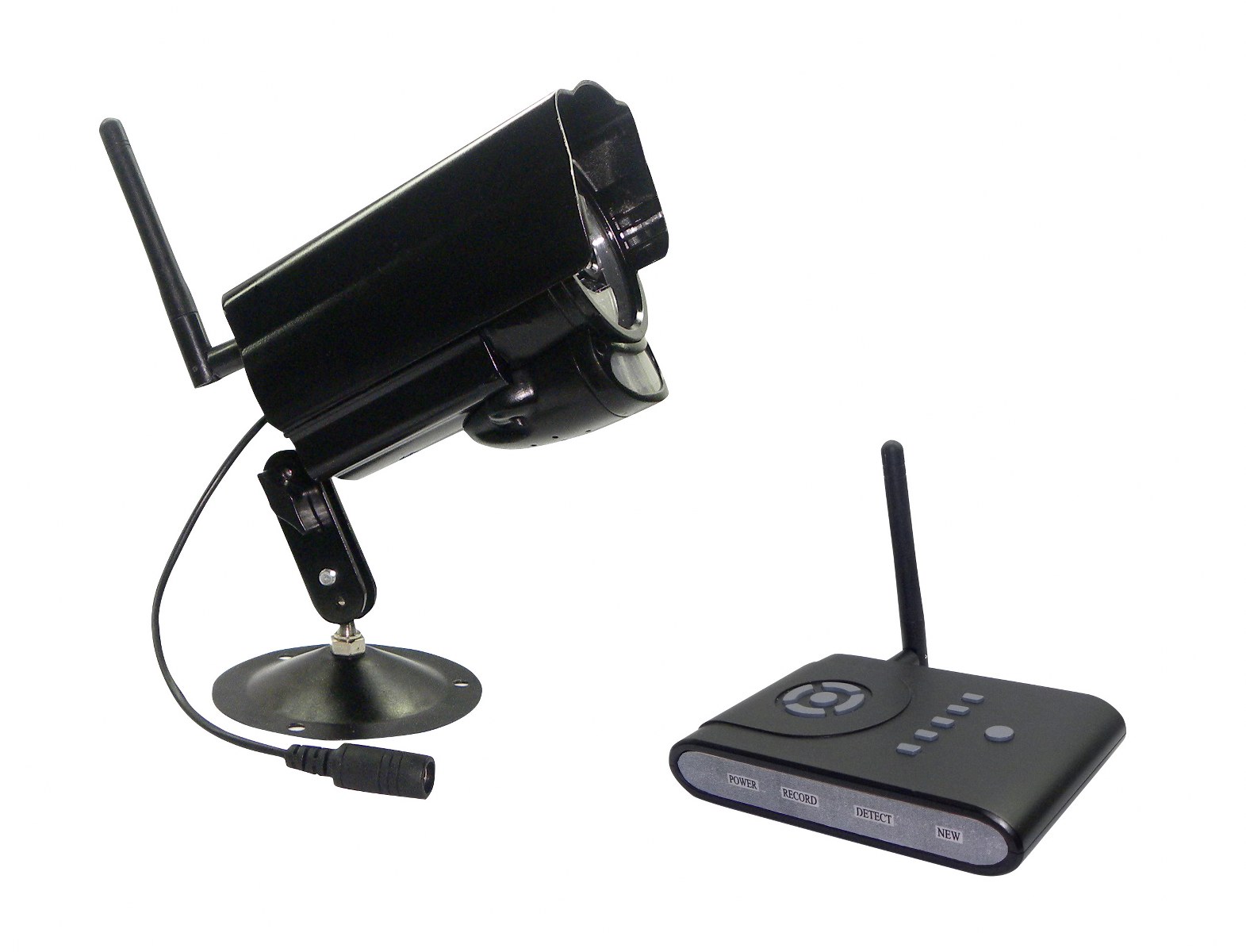

The receiver supports up to four cameras, but this kit is one &one kit.
Features:
>Quad function to display 4 channels Max
>Record upon motion in Quad mode with date/time stamp
>Two way talking
>No interference to wifi by repeated tests
>Night vision to 15 meters
>VGA 10 FPS/QVGA 25 FPS, overwriting optional
Specification:

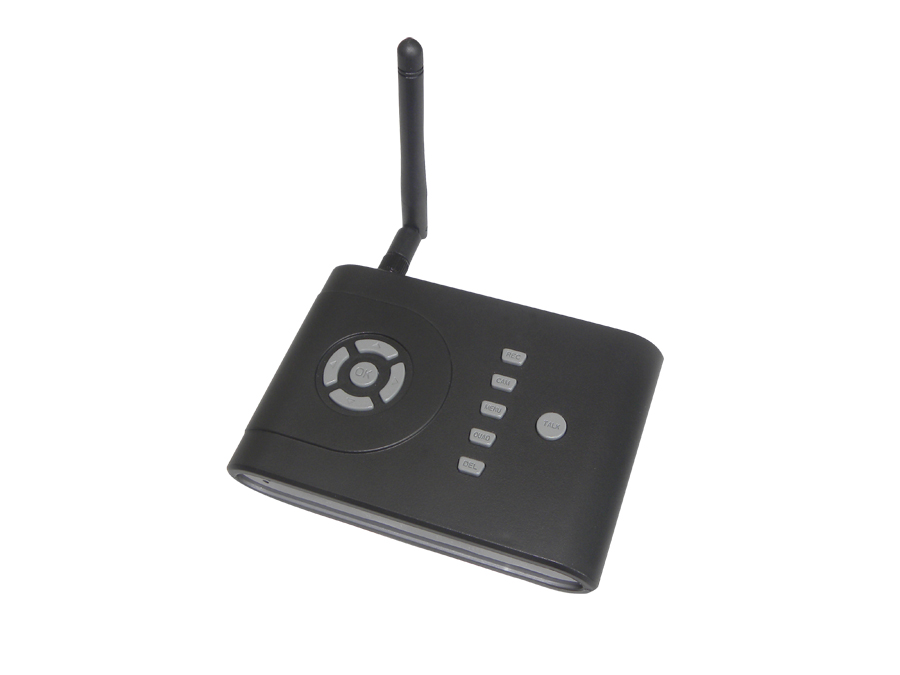

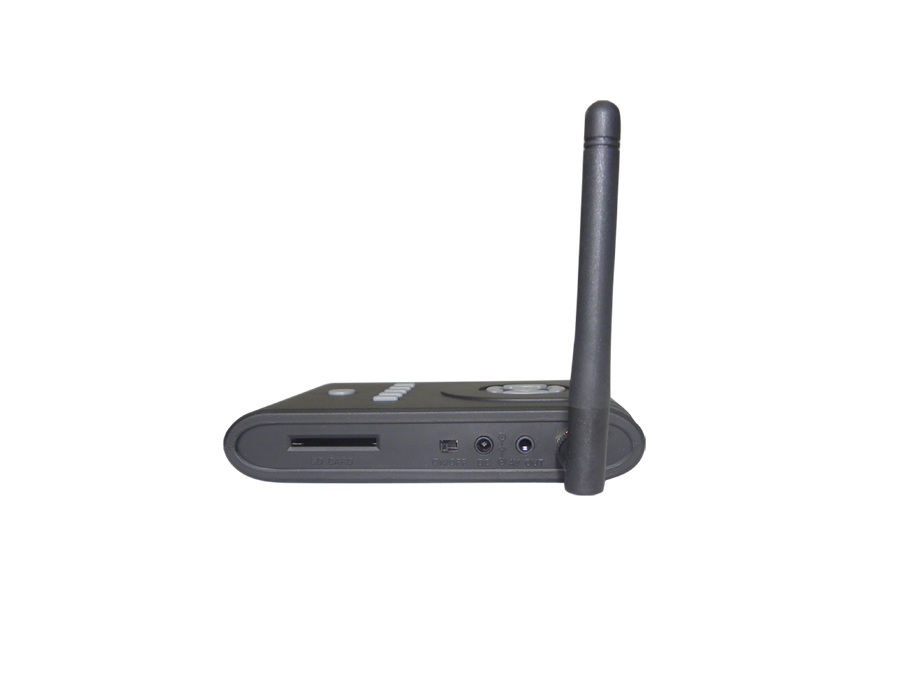

Receiver
Video resolution:640 * 480 (VGA),320*240(QVGA)
Video frame rate:9~25fps
Video file size: Approx.
Detection sensitivity: Max 5meters
Power consume: Max 160mA
Video system: NTSC\PAL adjustable
Video mode: M-JPEG AVI
Photo format: JPEG

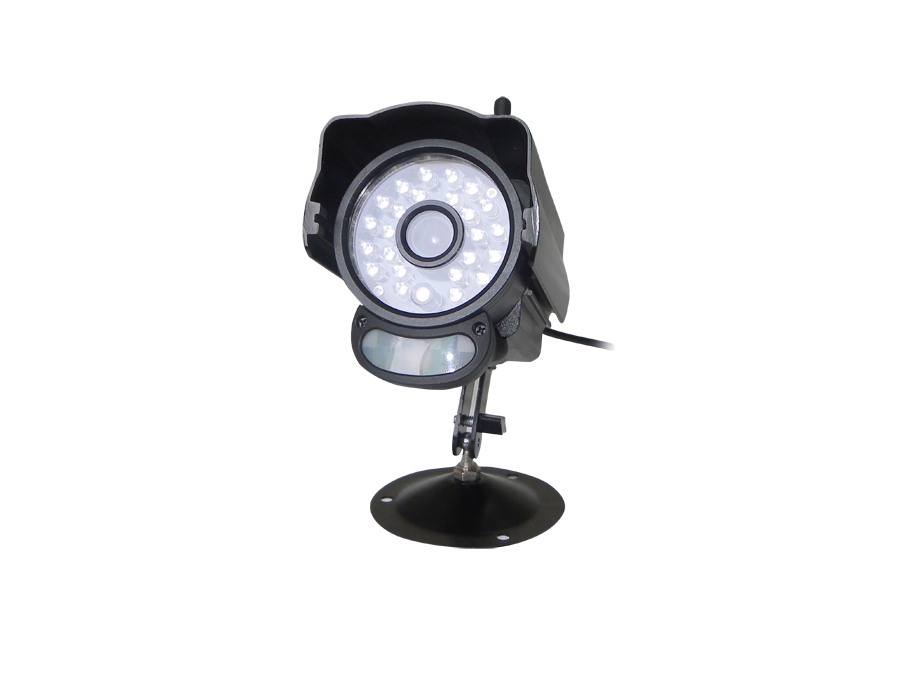

Camera
Sensor: CMOS 1/4"
Resolution:640*480 pixels
View angle:66 degree
Night vision Range:15meters
Power :Max 270mA
Water proof: IPX2

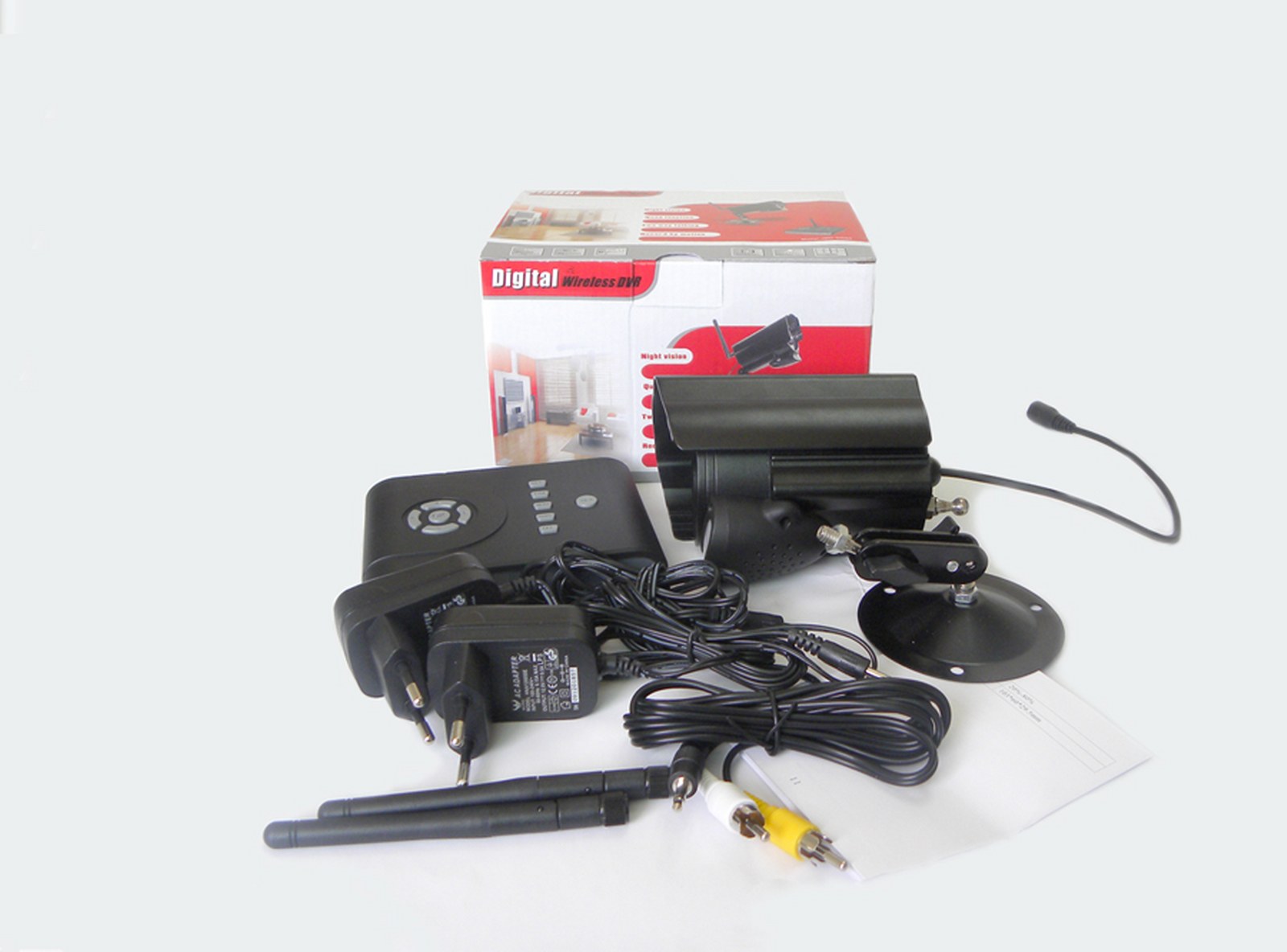

(1) Outdoor camera Size: 110*75*
(2) Receiver Size: 120*84*
(3) Power adapter for outdoor camera;
Input: 100-240V 50/60Hz Output: 12V/500mA Cable Length:
(4) Power adapter for Receiver;
Input: 100-240V 50/60Hz Output: 12V/500MA or
(5) AV Line
(6) User manual
(7) Screws and bracket for the installation of the camera
Packing(DIY Kit):
Package: color box
Package Size: 180*136*
KG/pcs:
Pcs/ctn: 24pcs/ctn
Size of the Carton: 54.7*26.5*
GW:
