Product Info:

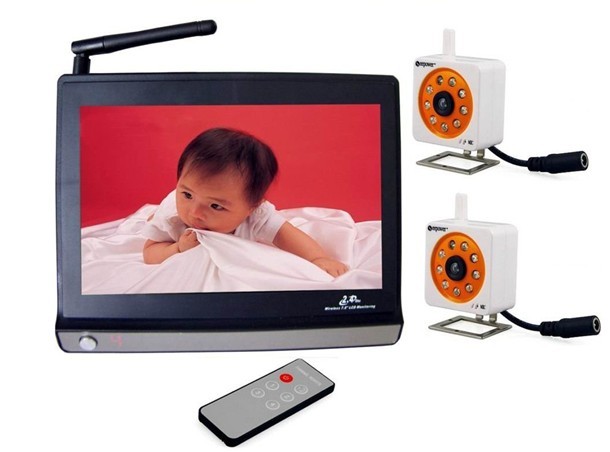

7 inch wireless baby monitor/2.4Ghz wireless baby monitor/2.4Ghz wireless camera
Features:
1. Infra-red LEDs for night-time vision, Effective night vision range:
2. 380TV lines clear picture display,Environmentally Friendly Design.Baby Monitor KIT.
3. 4-channel available to Channel scan and channel skip for multi-camera usage
4. Built-in microphone for audio monitoring 7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor.Receiver inside easy installation
5.PAL/NTSC System.
6. Remote Control with Full Functions.On screen display (OSD) menu
Specification:
Camera Specifications: |
TV System: |
|
PAL/NTSC |
Validity Pixel: |
|
PAL: 628(H) x 582(V) |
Image Device: |
|
Vimicro 0702 Vision CMOS |
Horizontal Definition: |
|
420 TV Lines |
Angular Field of View: |
|
45(f= |
Minimum Illumination: |
|
0 Lux |
|
|
|
Band Width: |
|
|
IR LEDs: |
|
9 IR LEDs |
Synchronization System: |
|
Internal |
Scanning Frequency (H): |
|
PAL: 15.625KHz |
Scanning Frequency (V): |
|
PAL: 50Hz |
Backlight Compensation: |
|
Auto |
Electronic Shutter: |
|
1/50(1/60) ~ 1/100,000 Sec |
White Balance: |
|
Auto |
S/N Ratio: |
|
>48db |
Gamma Correction: |
|
>0.45 |
Operation Temperature: |
|
-10 ~ +50 / +14 ~ +122 |
Transmission Frequency: |
|
ISM 2,400 ~ 2,483MHz |
Power Supply: |
|
DC +12V |
Receiver Specification:
Aspect Ration: |
|
7 inch |
Display Element: |
|
Color TFT LCD |
Video System: |
|
PAL/NTSC |
Active Area: |
|
154.08(mm)*86.58(mm) |
Resolution: |
|
480(H)*RGB*234(V) |
Receiver Channel: |
|
4 Channels |
Brightness: |
|
200cd |
Contrast Ratio: |
|
300:1 |
Db Level: |
|
-90dB |
Composite Video (AV): |
|
One-way AV input |
OSD Language: |
|
English |
Input Voltage: |
|
DC 12V |
Max Power Consumption: |
|
Lower than 8W |
