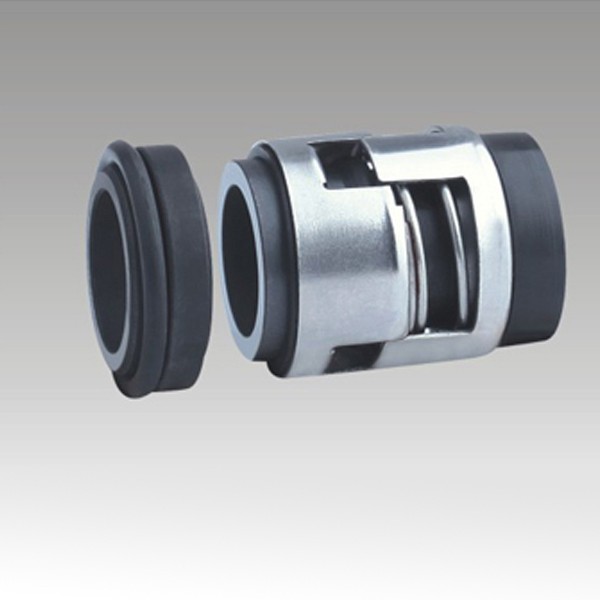

TBGLF-6 is an original Grundfos seal with single spring o-ring
Mounted semi-cartridge seals with push-fit head
Suitable for Grundfos Pumps
WE PROMISS :
1. If you send us request ,
swift reply you in 8 hours !
2. Free sample supply ,
to get your trust !
1. Operational Conditions:
Temperature: -20℃ to +180℃
Pressure: ≤1.2MPa
Speed: ≤10m/s
2. Materials:
Stationary Ring: Carbon, Silicon Carbide, TC
Rotary Ring: Silicon Carbide, TC, ceramic
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel
3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids
