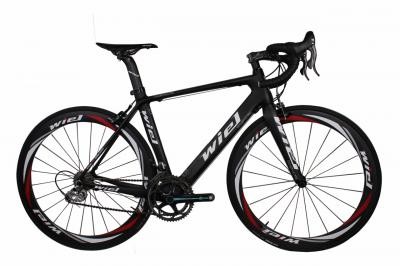

Super light frame, the big down tube, the wide chain stay and the oversized head tube make this frame an amazing comfort and stiffness.
| TECHNICAL SPECIFICATIONS | |
| MODEL | HILL |
| OUT LOOKING | UD MATT FINISH |
| FRAME | WIEL B129 |
| FRAME SIZE | 465/500/535MM ARE IN STOCK |
| FORK | WIEL FK560-3 |
| DOUBLE CONTROL HANDLE | CAMPAGNOLO ATHENA |
| BINDER | CAMPAGNOLO ATHENA |
| CHAIN | CAMPAGNOLO ATHENA |

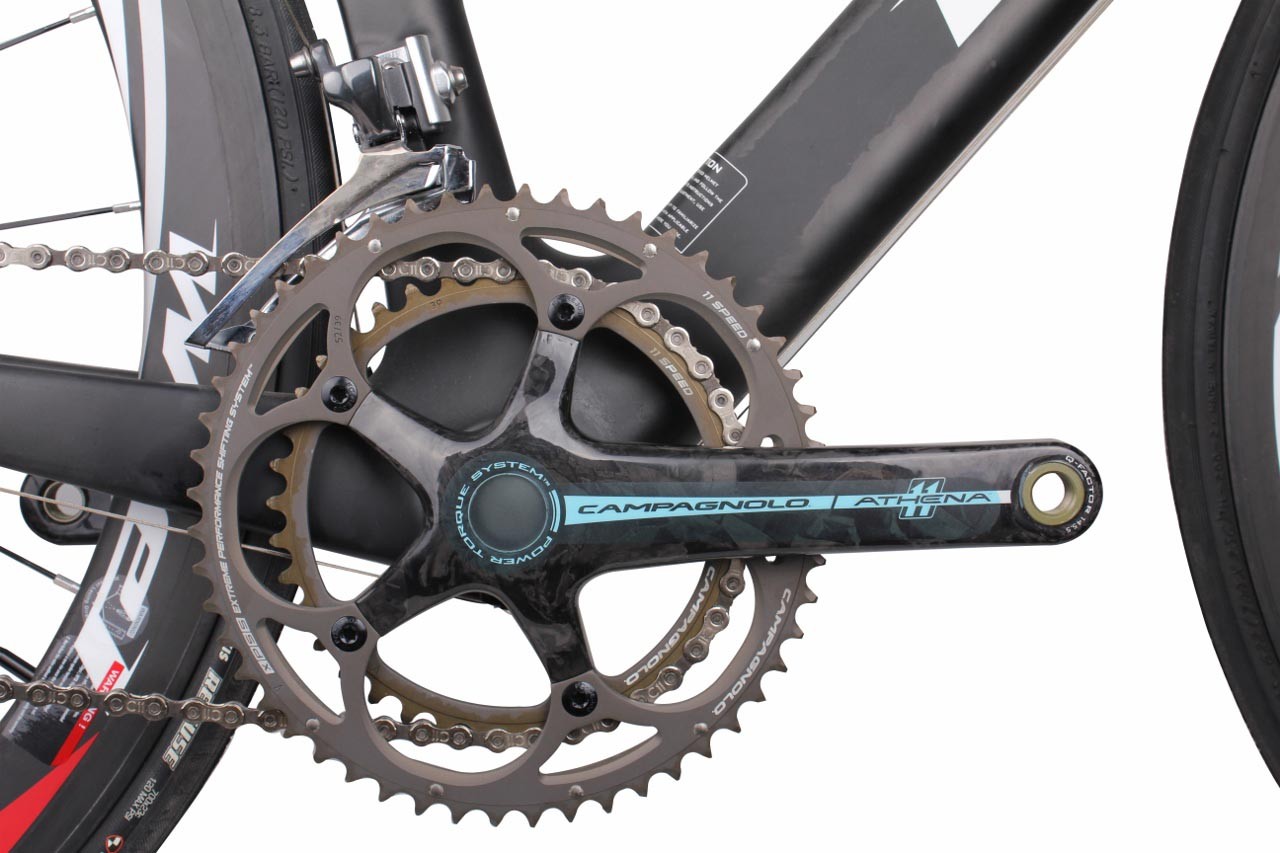

| CRANKSET | CAMPAGNOLO ATHENA |
| FRONT DERAILLEUR | CAMPAGNOLO ATHENA |

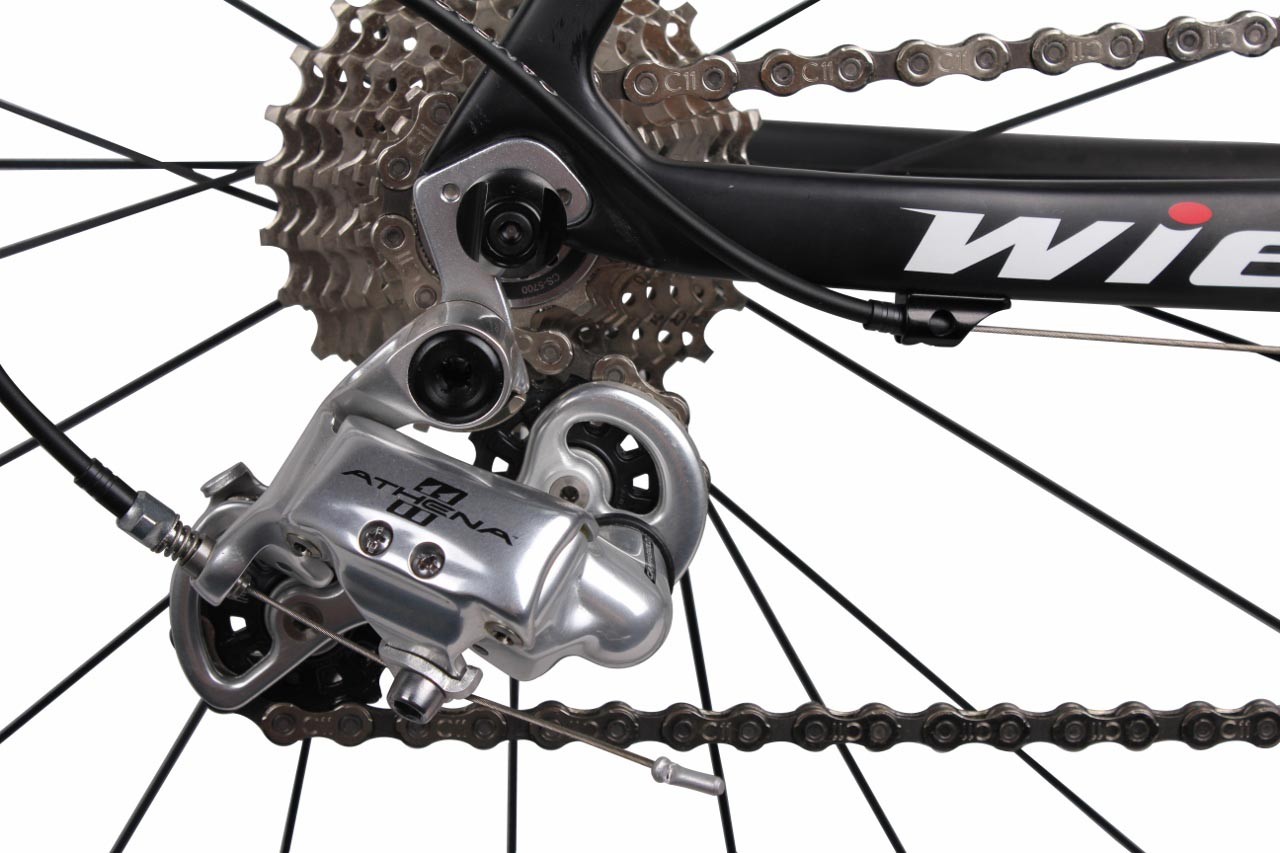

| REAR DERAILLEUR | CAMPAGNOLO ATHENA |
| STEM | WIEL 31.8*90mm |
| HANDLEBARS | WIEL 31.8*420mm |
| SEATPOST | WIEL SP08 |
| SADDLE | WIEL, BLACK |
| CASSETTE | CAMPAGNOLO ATHENA |
| WHEELS | WIEL CARBON 50C |
| TIRE | MAXXIS 700*23C |
| INNER TUBES | MAXXIS 700*19 |
| WEIGHT | 7.5kg |
| GEOMETRY | |||||
| * *Not all sizes available in all markets | |||||
| Size | 465mm | 500mm | 535mm | 555mm | 585mm |
| Seat Tube (BB Center to Top) | 465mm | 500mm | 535mm | 555mm | 585mm |
| Top Tube (effective) | 530mm | 550mm | 570mm | 585mm | 605mm |
| Chain Stay (actual) | 406mm | 406mm | 406mm | 406mm | 406mm |
| Seat Tube Angle | 73.5° | 73° | 72.5° | 72° | 72° |
| Bottom Bracket Drop | 68mm | 68mm | 68mm | 68mm | 68mm |
| Head Tube Length | 135mm | 150mm | 170mm | 185mm | 205mm |
| Head Tube Angle | 72° | 73° | 73° | 73° | 73° |
| Fork Length | 368mm | 368mm | 368mm | 368mm | 368mm |
| Fork Rake | 43mm | 43mm | 43mm | 43mm | 43mm |
| Wheelbase | 973.8mm | 979mm | 986mm | 1000.7mm | 1020.5mm |
| Front-Center | 577.4mm | 583.1mm | 589.6mm | 601.8mm | 623.8mm |
| Handle-Bar Width | 420mm | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm | 170mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
