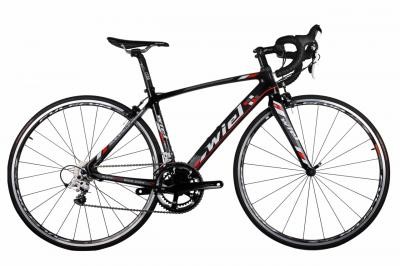

Gorgeous color is belong to the female cyclists, the new geometry angle, small size choice, the complete bicycle is made with high strength carbon fiber and completely by hand, and with an integrated patent technology.Good handling let you know you are also a good athlete when you ride on it. If you love her, buyCoco for her.
|
TECHNICAL SPECIFICATIONS |
|
|
MODEL |
COCO |
|
OUT LOOKING |
3K GLOSSY, RED/PINK |
|
FRAME |
|
|
FRAME SIZE |
430/450/490/530/560MM IN STOCK |
|
FORK |
|
|

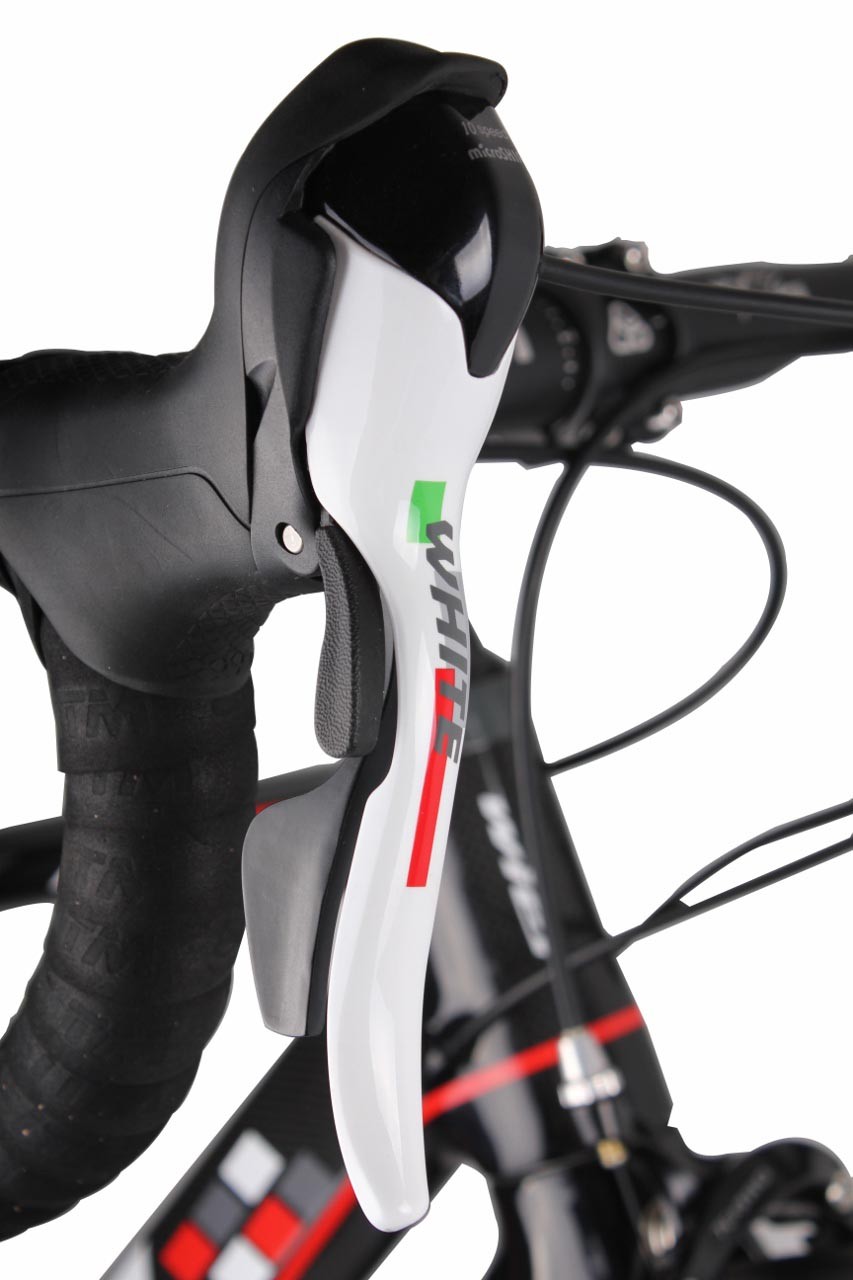

DOUBLE CONTROL HANDLE |
MICROSHIFT |
|

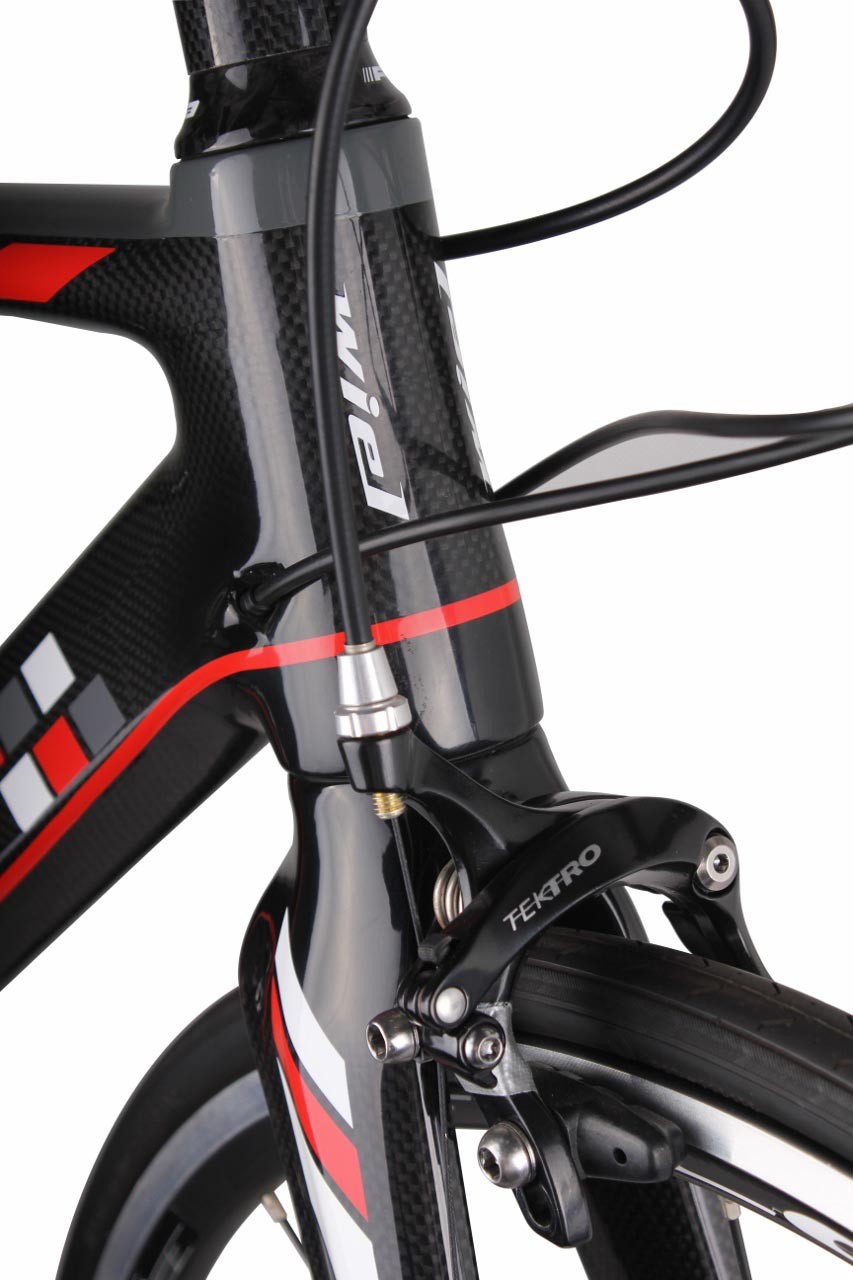

BINDER |
Tektro |
|
CHAIN |
SHIMANO 4601 |
|

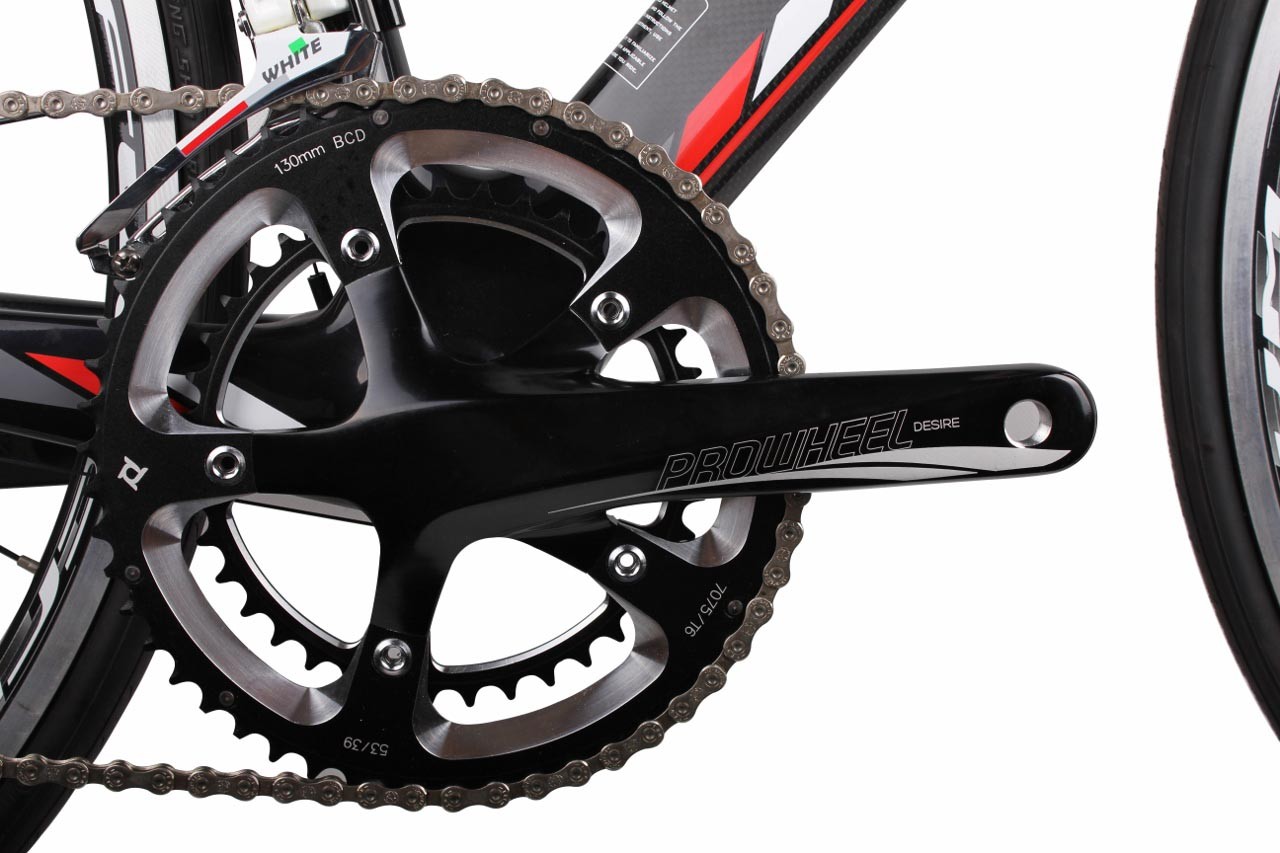

CRANKSET |
PROWHEEL |
|
FRONT DERAILLEUR |
MICROSHIFT |
|

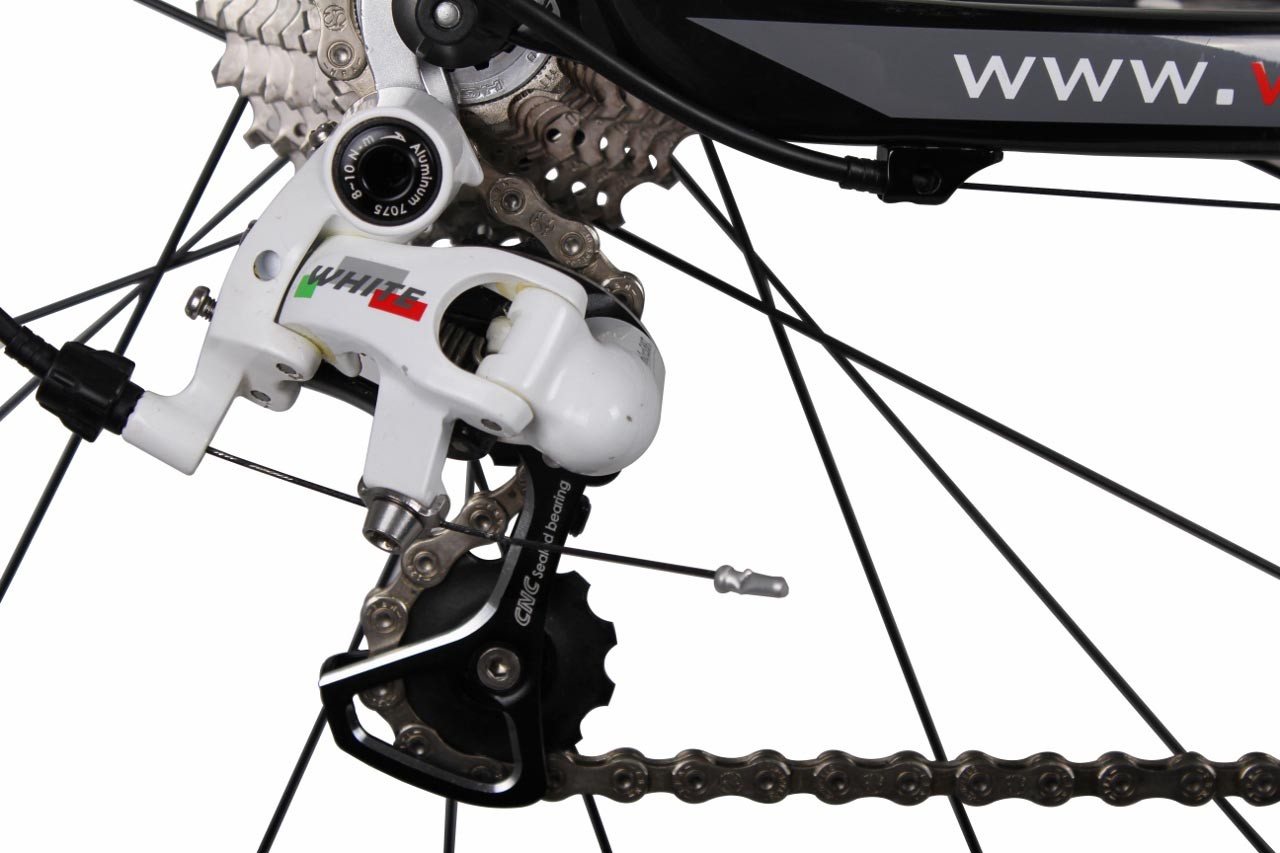

REAR DERAILLEUR |
MICROSHIFT |
|
STEM |
ITM 31.8*90mm |
|
HANDLEBARS |
ITM 31.8*420mm |
|
SEATPOST |
ITM 31.6*350mm |
|
SADDLE |
WIEL, BLACK |
|
CASSETTE |
SHIMANO 4600 |
|
FULCRUM-R7 |
|
|
TIRE |
CST 700*23C |
|
INNER TUBES |
CST 700*19 |
|
WEIGHT |
8.5kg |
| GEOMETRY | |||||
| * *Not all sizes available in all markets | |||||
| Size | 430mm | 450mm | 490mm | 530mm | 560mm |
| Seat Tube (BB Center to Top) | 430mm | 450mm | 490mm | 530mm | 560mm |
| Top Tube (effective) | 510mm | 530mm | 546mm | 565mm | 580mm |
| Chain Stay (actual) | 406mm | 406mm | 406mm | 406mm | 406mm |
| Seat Tube Angle | 74.5° | 74° | 73° | 73° | 72.5° |
| Bottom Bracket Drop | 68mm | 68mm | 68mm | 68mm | 68mm |
| Head Tube Length | 100mm | 115mm | 140mm | 160mm | 180mm |
| Head Tube Angle | 71.5° | 72.5° | 73° | 73° | 73.5° |
| Seat-Post ID | 31.6mm | 31.6mm | 31.6mm | 31.6mm | 31.6mm |
| Seat-Clamp ID | 34.9mm | 34.9mm | 34.9mm | 34.9mm | 34.9mm |
| Fork Length | 370.7mm | 370.7mm | 370.7mm | 370.7mm | 370.7mm |
| Fork Rake | 45mm | 45mm | 45mm | 45mm | 45mm |
| Wheelbase | 964mm | 972mm | 974mm | 993mm | 999mm |
| Front-Center | 568mm | 575mm | 577mm | 595mm | 600mm |
| Handle-Bar Width | 420mm | 420mm | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm | 170mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm | 350mm |
