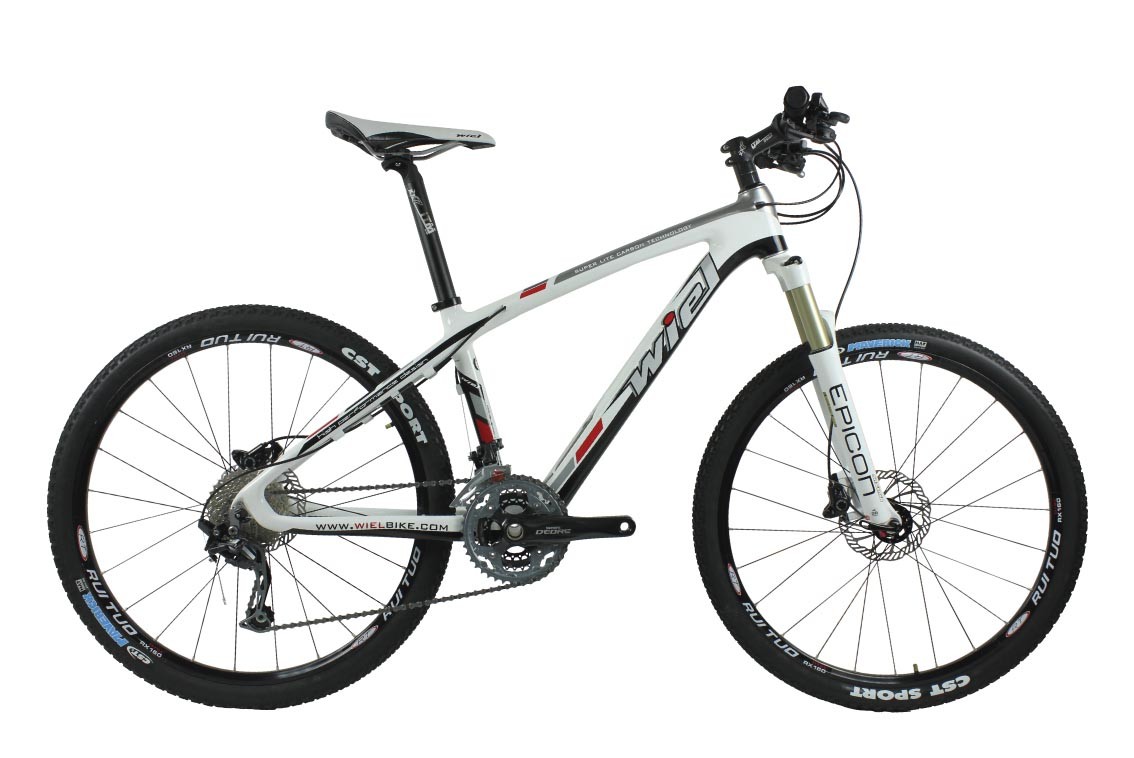

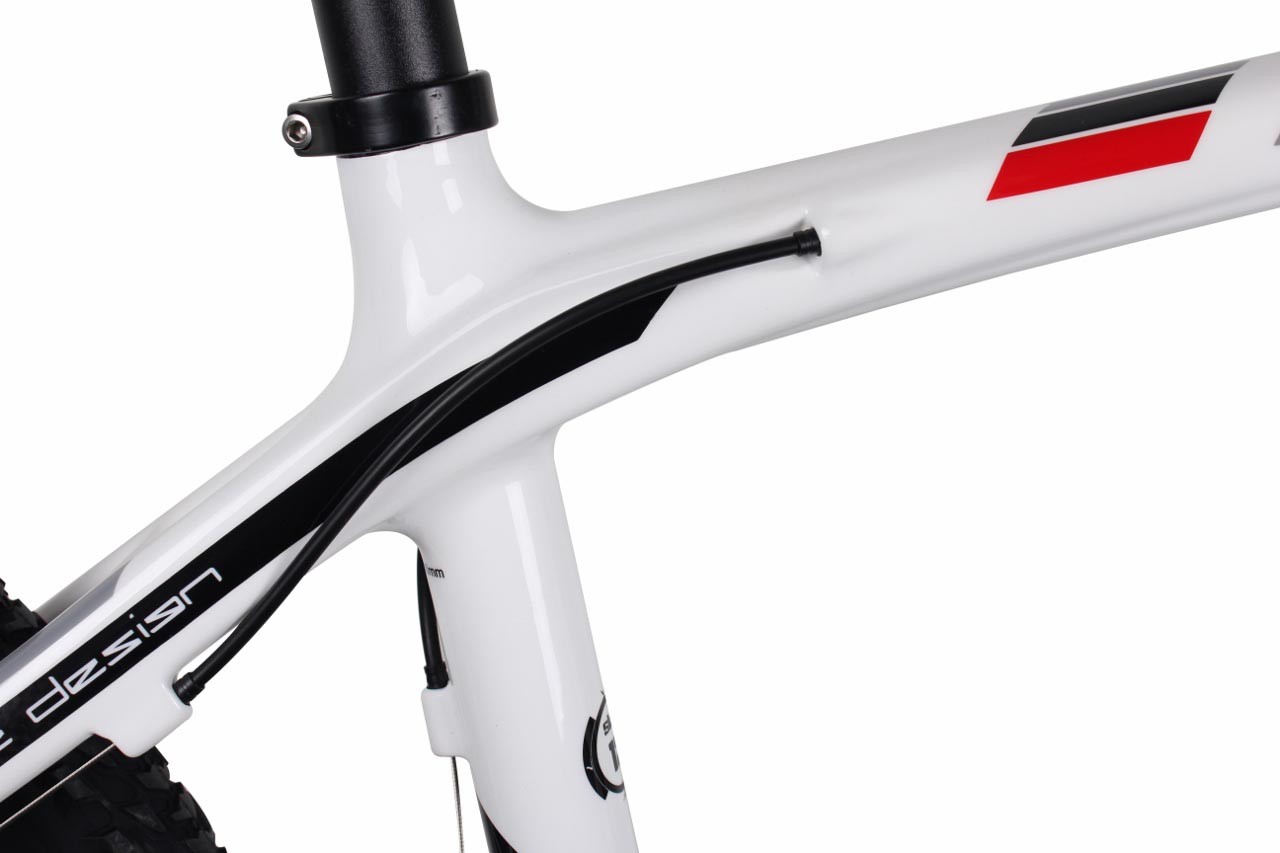

The front triangle is with internal cable routing, rear triangle using integrated stopper technology, the complete bicycle is clean and beautiful, assemble with SHIMANO 30 shifting parts, oil disc system, it is designed for casual cyclists. Strong playability and shock absorption is its core value, and of course the price of it is a very leisure.
| TECHNICAL SPECIFICATIONS | |
| MODEL | STRIDING |
| OUT LOOKING | 3K GLOSSY, WHITE |
| FRAME | WIEL B074 |
| SIZE | 26"MTB, 17"/19" ARE IN STOCK |
| FORK | SRSUNTOLR-EPICON, BLACK/WHITE |

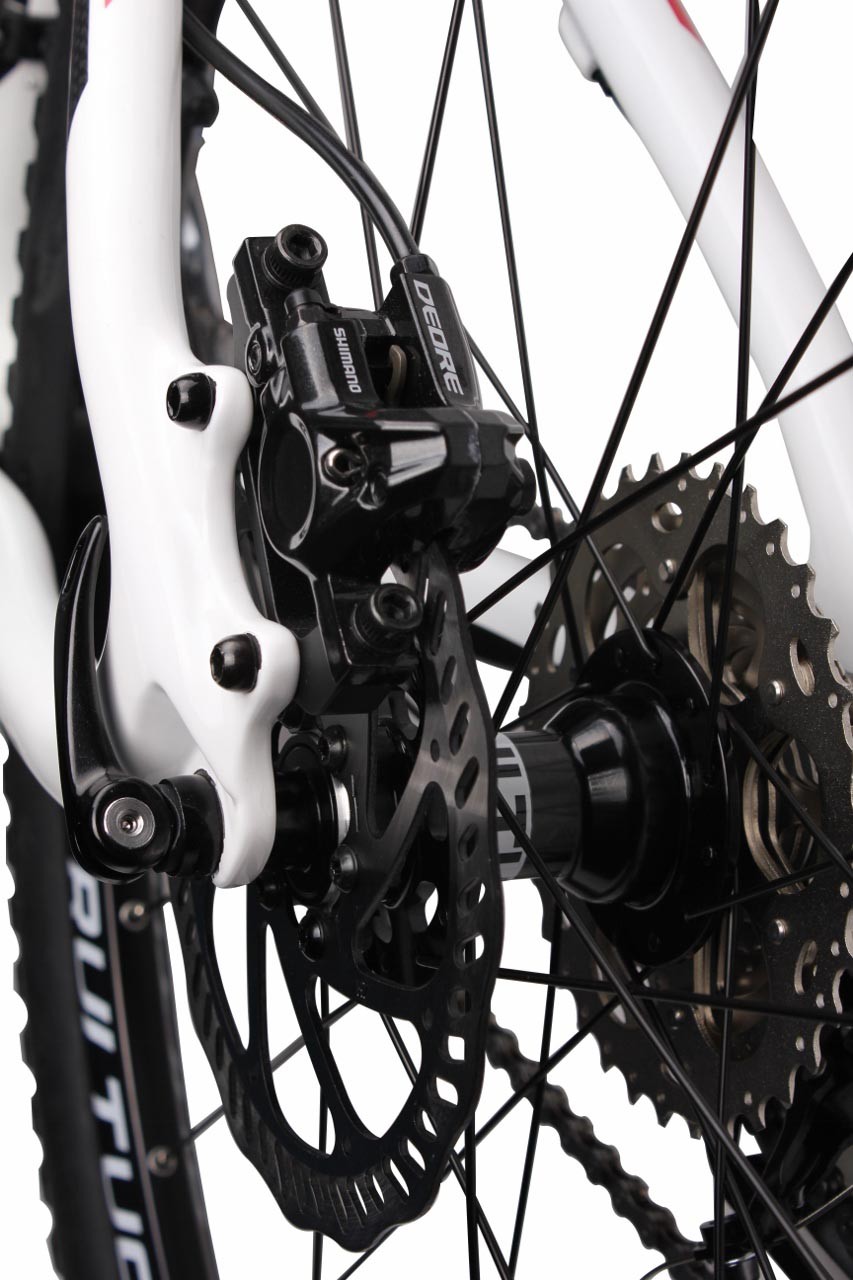

| BRAKE | SHIMANO DEORE |
| CHAIN | SHIMANO DEORE |
| CRANKSET | SHIMANO DEORE |

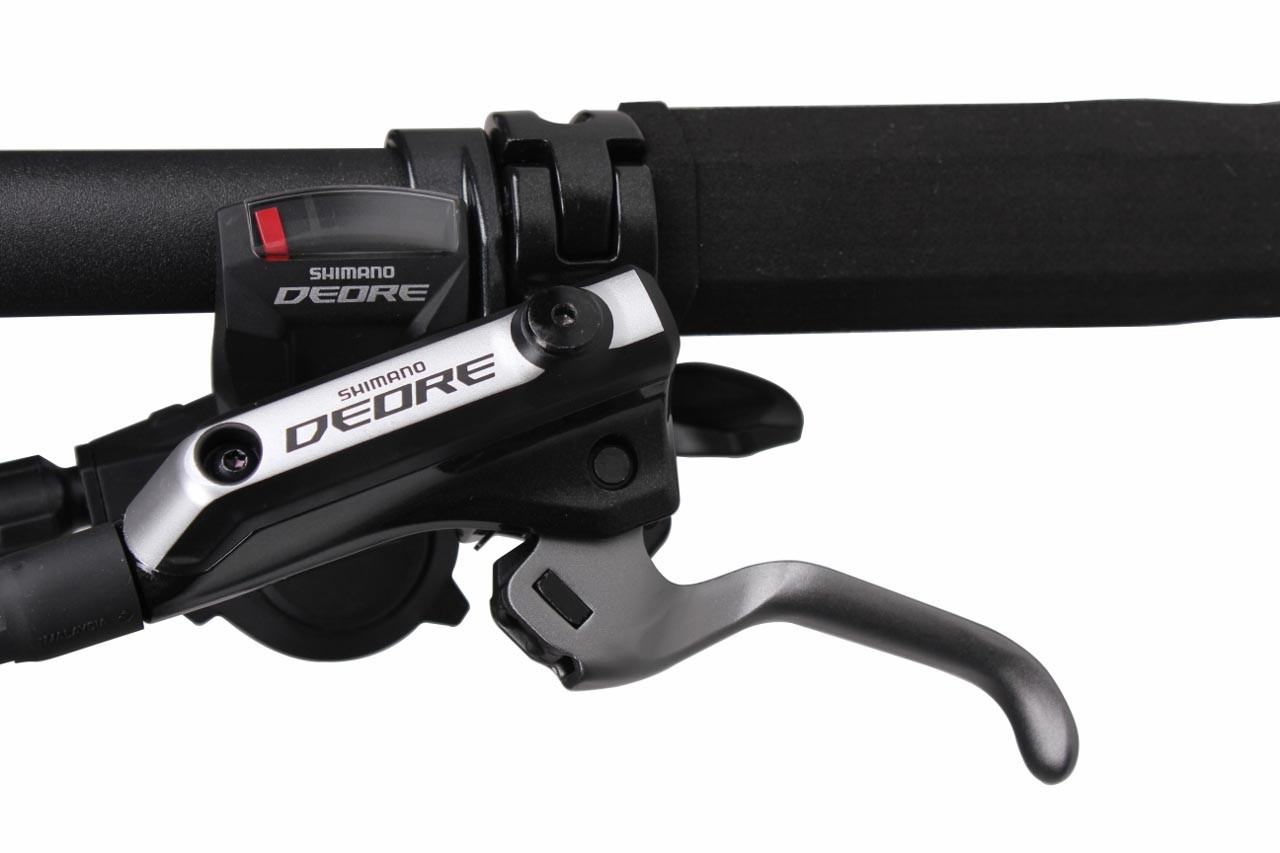

| SHIFT LEVERS | SHIMANO DEORE |
| FRONT DERAILLEUR | SHIMANO DEORE |

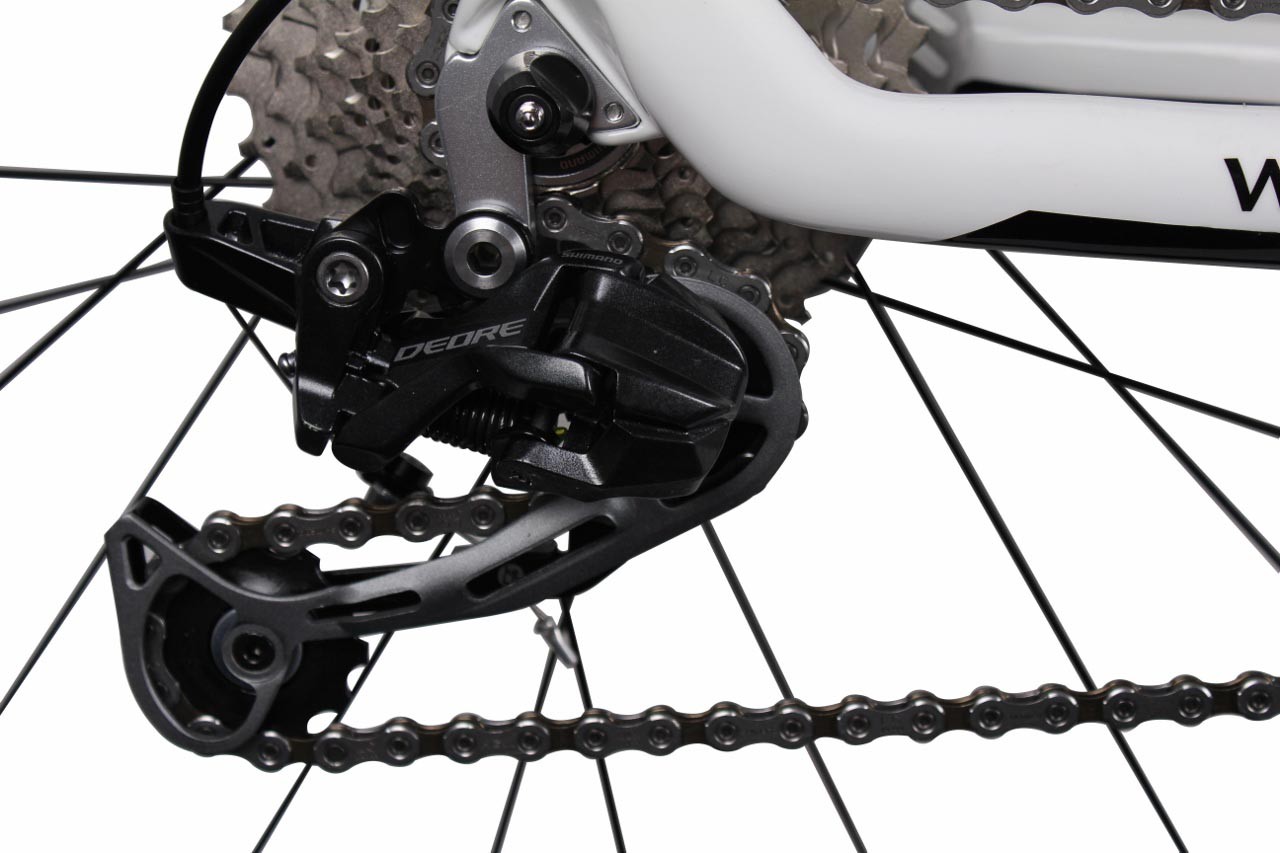

| REAR DERAILLEUR | SHIMANO DEORE |
| STEM | ITM 31.8*90mm |
| HANDLEBARS | ITM 31.8*580mm |
| SEATPOST | ITM 31.6*350mm |
| SADDLE | WIEL, WHITE |
| CASSETTE | SHIMANO DEORE |
| WHEELS | RT |
| TIRE | CST 26*1.95 |
| INNER TUBES | CST 26*1.90 |
| WEIGHT | 10.9kg |
| GEOMETRY | ||||
| * *Not all sizes available in all markets | ||||
| Size | 15“ | 17” | 19“ | 21” |
| Seat Tube (BB Center to Top) | 381mm | 430mm | 483mm | 534mm |
| Top Tube (effective) | 555mm | 570mm | 595mm | 610mm |
| Chain Stay (actual) | 425mm | 425mm | 425mm | 425mm |
| Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° |
| Bottom Bracket Drop | 30mm | 30mm | 30mm | 30mm |
| Head Tube Length | 115mm | 120mm | 130mm | 140mm |
| Head Tube Angle | 71° | 71° | 71° | 71° |
| Seat-Post ID | 31.6mm | 31.6mm | 31.6mm | 31.6mm |
| Seat-Clamp ID | 34.9mm | 34.9mm | 34.9mm | 34.9mm |
| Fork Length | 456mm | 456mm | 456mm | 456mm |
| Fork Rake | 42mm | 42mm | 42mm | 42mm |
| Wheelbase | 1040mm | 1058mm | 1084mm | 1099mm |
| Front-Center | 616mm | 635mm | 660mm | 676mm |
| Handle-Bar Width | 580mm | 580mm | 580mm | 580mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm |
| Seat-Post Length | 350mm | 350mm | 350mm | 350mm |
