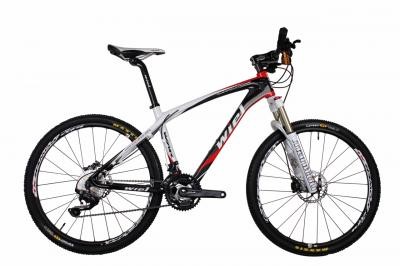

Super light design, satisfy the demands of weight and speed. You can feel more comfortable while riding. The outline is like a strong arc type crossbow gaining momentum.Ride on it in the city and surroundings, to find the joy and happiness.
| TECHNICAL SPECIFICATIONS | |
| MODEL | MATADOR |
| COLOR | UD GLOSSY, RED/BULE/YELLOW |
| FRAME | WIEL B024 |
| SIZE | 26"MTB, 16.5"/17.5"/19" IN STOCK |
| FORK | MANITOU-R7, BLACK/WHITE |

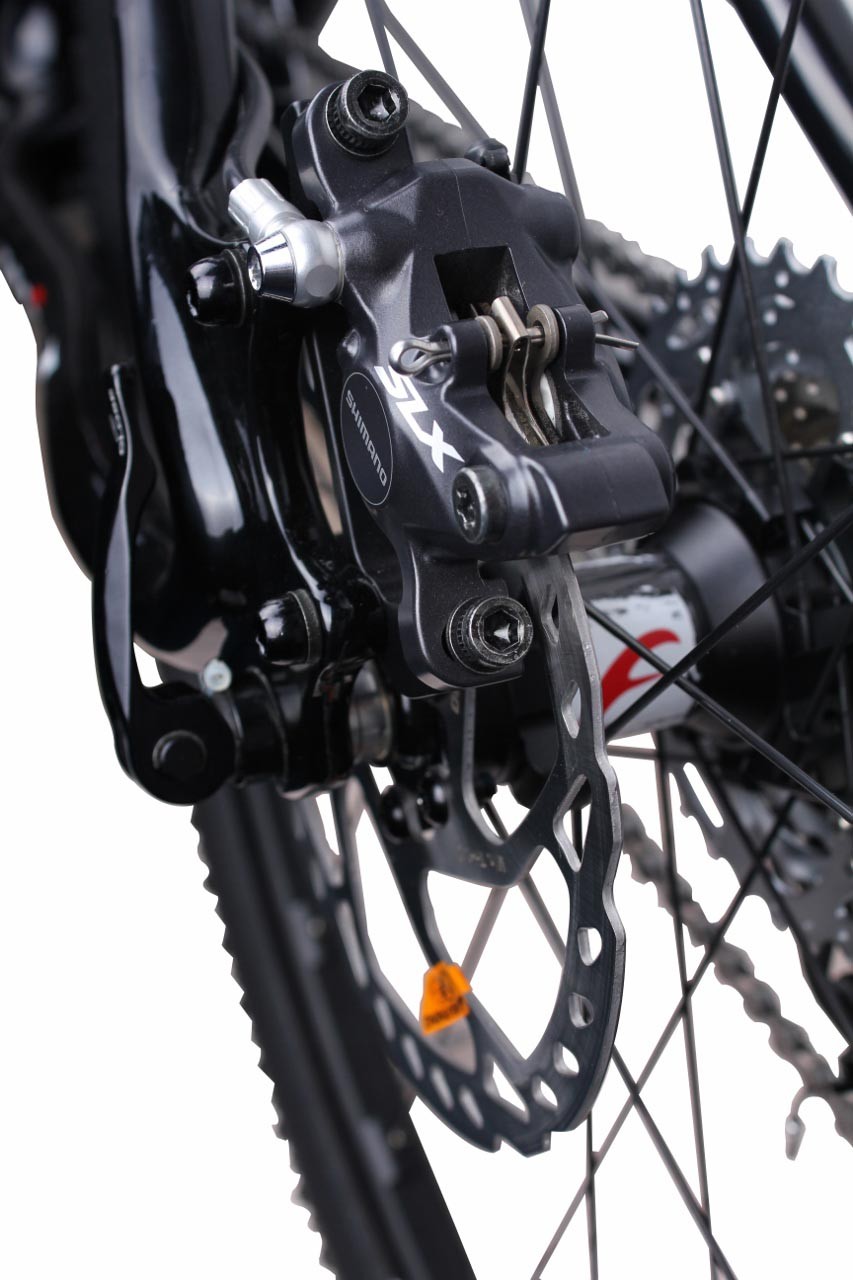

| BRAKE | SHIMANO SLX |
| CHAIN | SHIMANO SLX |
| CRANKSET | SHIMANO SLX |

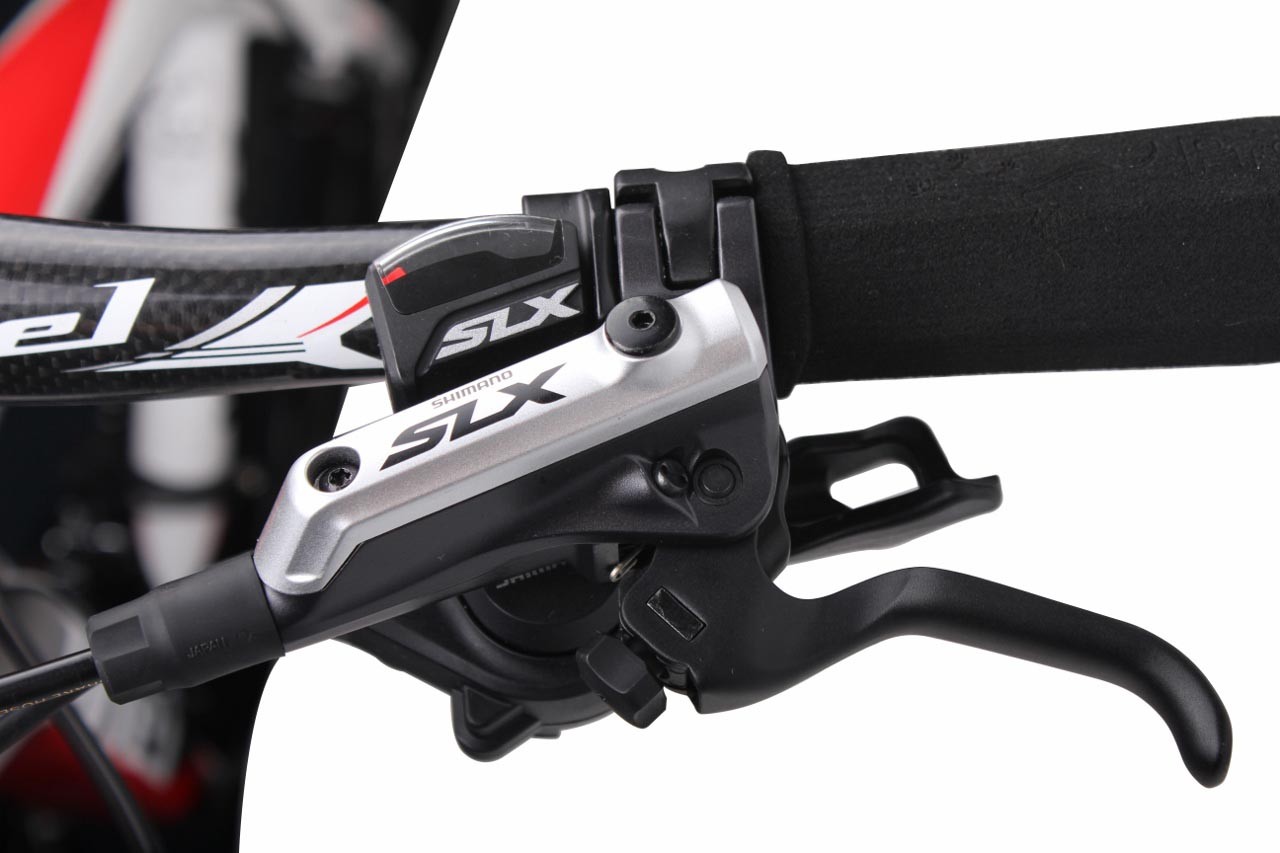

| SHIFT LEVERS | SHIMANO SLX |
| FRONT DERAILLEUR | SHIMANO SLX |

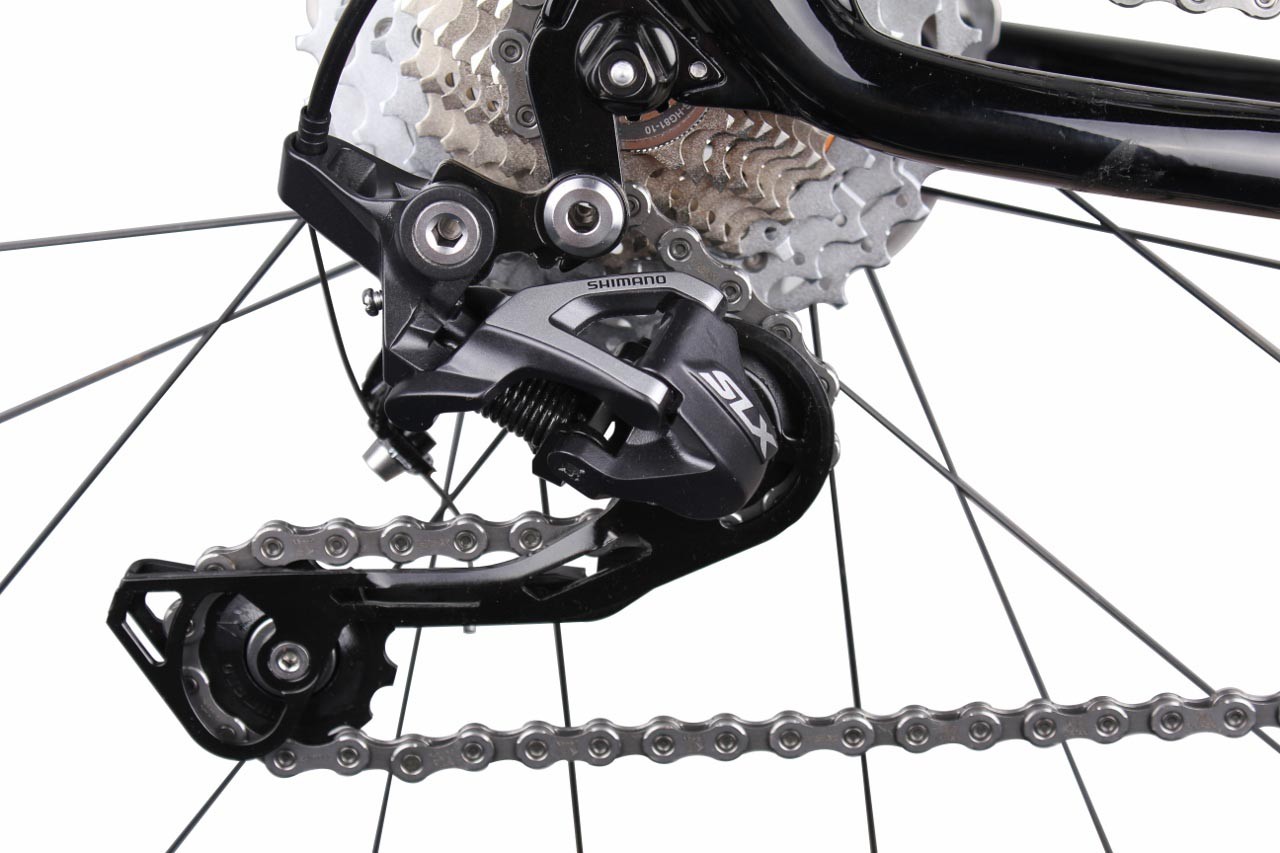

| REAR DERAILLEUR | SHIMANO SLX |
| STEM | WIEL 31.8*90mm |
| HANDLEBARS | WIEL 31.8*580mm |
| SEATPOST | WIEL SP08 |
| SADDLE | WIEL, GRAY WHITE |
| CASSETTE | SHIMANO SLX |
| WHEELS | FULUCRUM-RPO-12DFB |
| TIRE | MAXXIS TT 26*1.95 |
| INNER TUBES | MAXXIS 26*1.90 |
| WEIGHT | 10.3kg |
| GEOMETRY | |||
| * *Not all sizes available in all markets | |||
| Size | 16.5“ | 17.5” | 19“ |
| Seat Tube (BB Center to Top) | 425mm | 444.5mm | 588mm |
| Top Tube (effective) | 556mm | 588mm | 610.6mm |
| Chain Stay (actual) | 420mm | 420mm | 420mm |
| Seat Tube Angle | 73° | 73° | 73° |
| Bottom Bracket Drop | 42mm | 42mm | 42mm |
| Head Tube Length | 124mm | 124mm | 124mm |
| Head Tube Angle | 71° | 71° | 71° |
| Seat-Post ID | 31.6mm | 31.6mm | 31.6mm |
| Seat-Clamp ID | 34.9mm | 34.9mm | 34.9mm |
| Fork Length | 434mm | 434mm | 434mm |
| Fork Rake | 45mm | 45mm | 45mm |
| Wheelbase | 1029mm | 1060mm | 1082mm |
| Front-Center | 612.5mm | 644mm | 665.5mm |
| Handle-Bar Width | 580mm | 580mm | 580mm |
| Crank Length | 170mm | 170mm | 170mm |
| Seat-Post Length | 350mm | 350mm | 350mm |
