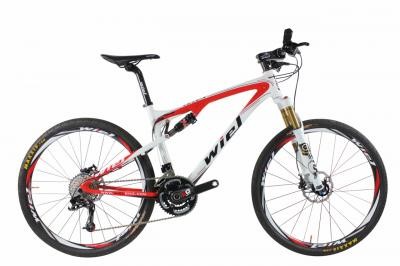

WIEL Carbon Full Suspension Bicycle
Double Suspension Bike

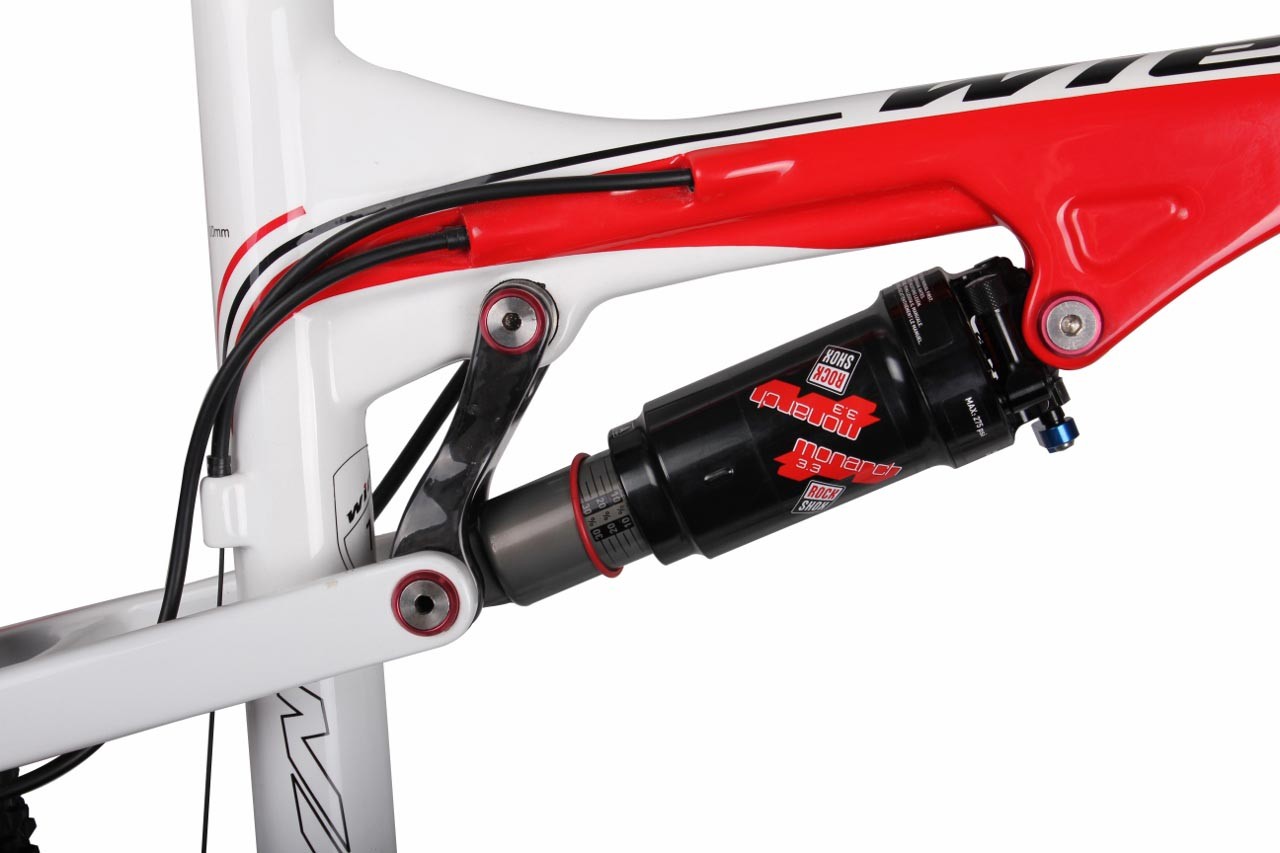

Internal cable routing makes this bike with good outline looking and high performance.It gathers climbing and cross-country as a whole. The 80 mm rear suspensiontravel also make you feel comfortable whatever you ride on rugged mountain, would you like to practice it with all the possibilities?
TECHNICAL SPECIFICATIONS
| MODEL | WIEL Carbon Full Suspension Bike |
| COLOR | 3K GLOSSY, RED WHITE |
| FRAME | WIEL B013 |
| FRAME SIZE | 26*16.5"17.5" |
| FORK | FOX |

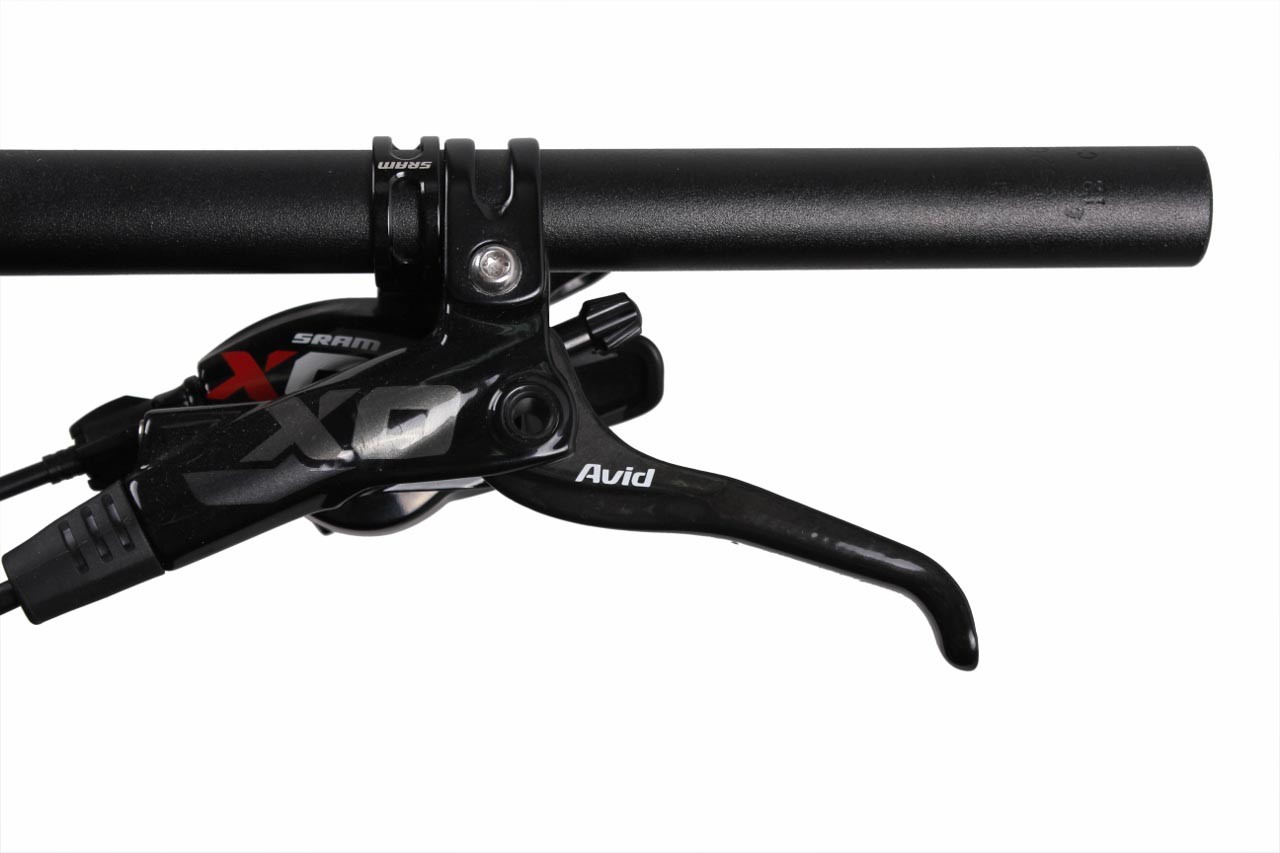

| BRAKE | SRAM XO |
| CHAIN | SRAM XO |
| CRANKSET | SRAM XO |
| SHIFT LEVERS | SRAM XO |
| FRONT DERAILLEUR | SRAM XO |

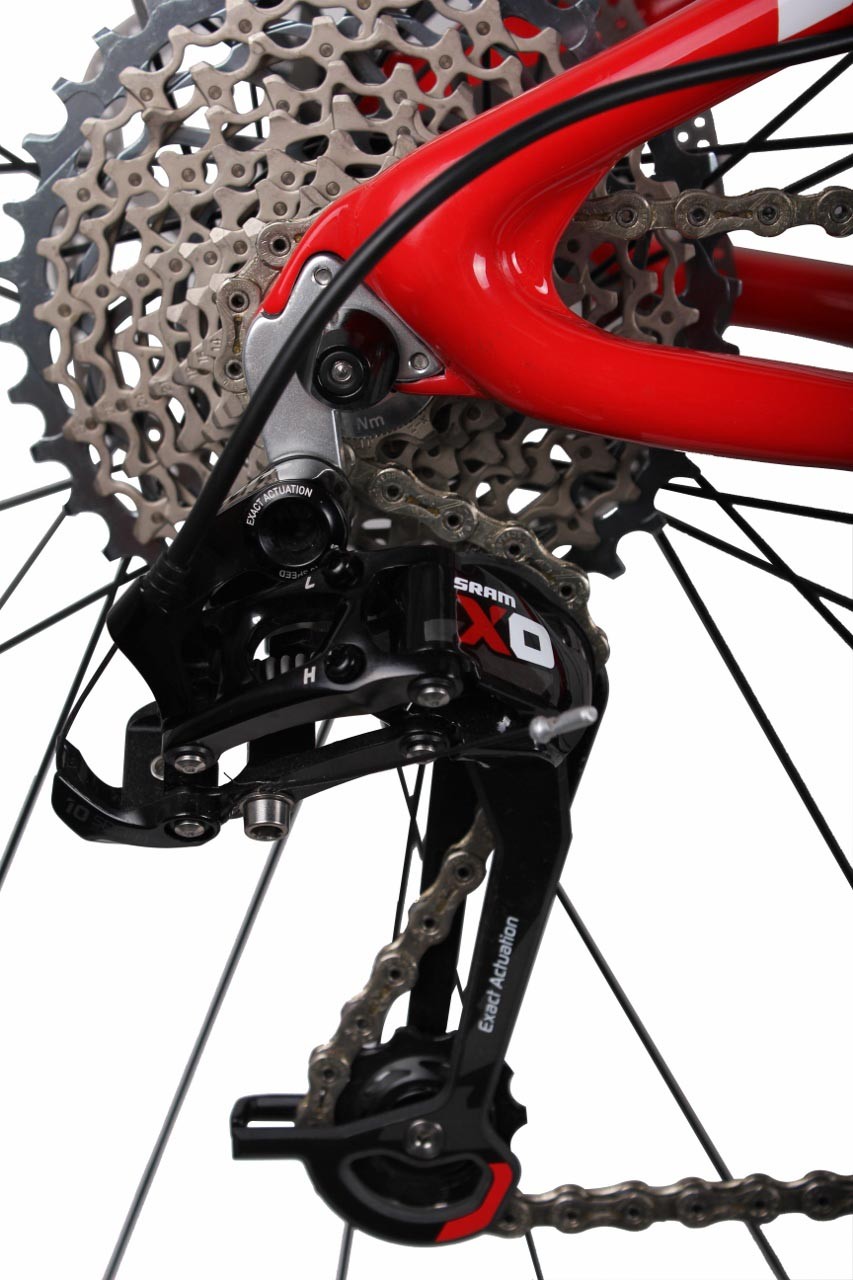

| REAR DERAILLEUR | SRAM XO |
| STEM | WIEL 31.8*90mm |
| HANDLEBARS | WIEL 31.8*580mm |
| SEATPOST | WIEL SP08 |
| SADDLE | WIEL, BLACK |
| CASSETTE | SRAM CS-XG-1080-A1 |
| HUBS | CHOSEN A8076BH-24/A8527BH-28H |
| SPOKE | PILLAR |
| RIMS | WIEL M23 |
| TIRE | MAXXIS 310 26*1.95 |
| INNER TUBES | MAXXIS 310 26*1.95 |
| WEIGHT | 9.5kg |
| GEOMETRY | ||||||
|
* *Not all sizes available in all markets |
||||||
| Size | 16.5“ | 17.5” |
| Seat Tube (BB Center to Top) | 561mm | 559mm |
| Top Tube (horizontal) | 575mm | 590mm |
| Chain Stay (actual) | 428mm | 428mm |
| Seat Tube Angle | 73° | 73° |
| Bottom Bracket Drop | 27mm | 27mm |
| Head Tube Length | 125mm | 125mm |
| Head Tube Angle | 70.5° | 70.5° |
| Seat-Post ID | 31.6mm | 31.6mm |
| Seat-Clamp ID | 34.9mm | 34.9mm |
| Fork Length | 456mm | 456mm |
| Fork Rake | 45mm | 45mm |
| Wheelbase | 1050mm | 1090mm |
| Weight(g) | 1922±50 | 1970±50 |
| Front-Center | 626mm | 665mm |
| Handle-Bar Width | 600mm | 600mm |
| Crank Length | 170mm | 170mm |
| Seat-Post Length | 350mm | 350mm |
