It has a unique shape, fashionable element fully highlighted. Carbon fiber’s performance makes rider feel more comfortable, and more convenient to carry. It is the environmental protection equipment for city life. The core technology of the manufacturer is the guarantee of quality and fashion, and it makes the riding stable.
| TECHNICAL SPECIFICATIONS | |

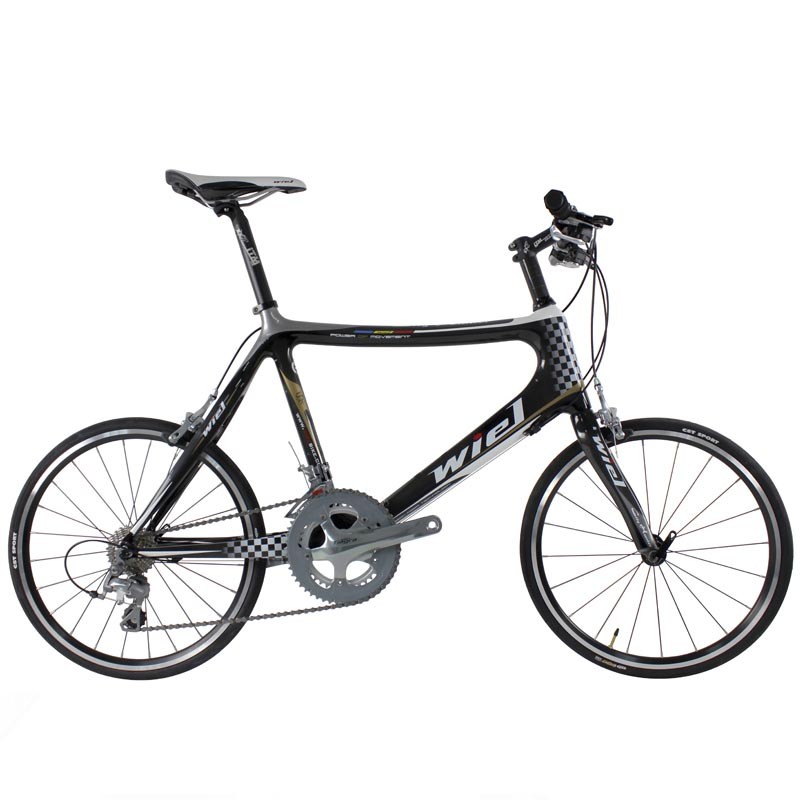

| MODEL | CITY HUNTER |
| OUT LOOKING | 3K GLOOSY, GRAY WHITE |
| FRAME | WIEL B057 |
| FRAME SIZE | 480MM ARE IN STOCK |
| FORK | WIEL FK460-6 |
| BRAKE HANDLE | SRAM AVID |
| BINDER | SHIMANO 4600 |
| CHAIN | SHIMANO 4600 |
| CRANKSET | SHIMANO 4600 |
| SHIFT LEVERS | MICROSHIFT |
| FRONT DERAILLEUR | SHIMANO 4600 |
| REAR DERAILLEUR | SHIMANO 4600 |
| STEM | ITM 31.8*90mm |
| HANDLEBARS | ITM 31.8*580mm |
| SEATPOST | ITM 31.6*350mm |
| SADDLE | WIEL, WHITE |
| CASSETTE | SHIMANO 4600 |
| HUBS | JOYTECH A171DSE-20H/A172DSE-20H |
| SPOKE | SLE, DOUBLE BUTTED |
| RIMS | STARS CIRCLE, ALLOY |
| TIRE | CST 20*1*1/8 |
| INNER TUBES | CST 20*1.2 |
| WEIGHT | 8kg |
| GEOMETRY | |
| * *Not all sizes available in all markets | |
| Size | 480mm |
| Seat Tube (BB Center to Top) | 480mm |
| Top Tube (effective) | 515mm |
| Chain Stay (actual) | 398mm |
| Seat Tube Angle | 72° |
| Bottom Bracket Drop | 15mm |
| Head Tube Length | 130mm |
| Head Tube Angle | 72° |
| Seat-Post ID | 31.6mm |
| Seat-Clamp ID | 34.9mm |
| Fork Length | 295mm |
| Fork Rake | 45mm |
| Wheelbase | 984mm |
| Front-Center | 586mm |
| Handle-Bar Width | 580mm |
| Crank Length | 170mm |
| Seat-Post Length | 350mm |
