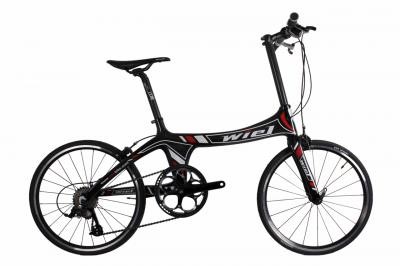

The mode of Elf is beautiful, not only designed to be unique but with multiple gear shifting which can save time and effort better when riding, it’s a best bike suitable for people of all ages
| TECHNICAL SPECIFICATIONS | |
| MODEL | ELF |
| OUT LOOKING | UD GLOOSY, RED WHITE |
| FRAME | WIEL B036 |
| FRAME SIZE | 480 |
| FORK | WIEL FK021-B |

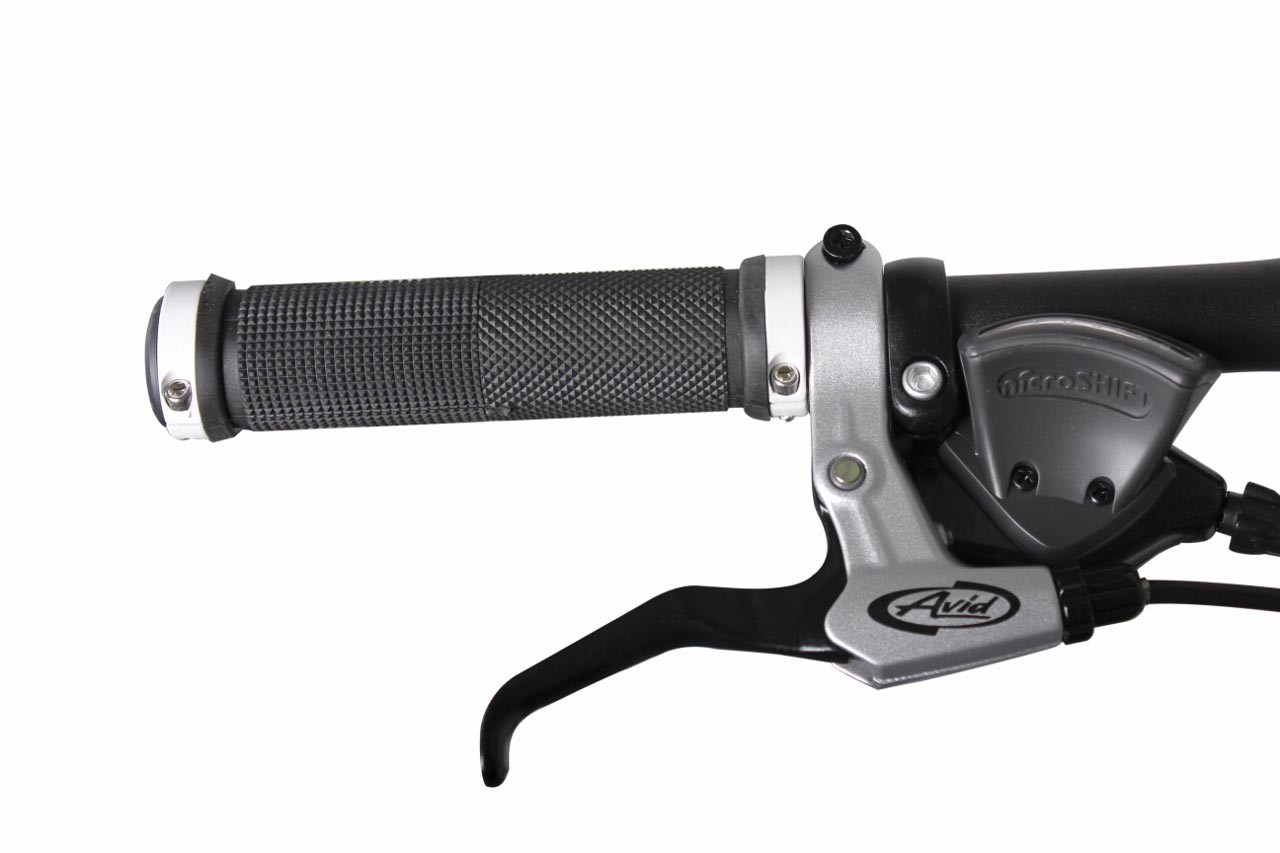

| BRAKE HANDLE | SRAM AVID |
| BINDER | TEKTRO |
| CHAIN | YABANG 7S |
| CRANKSET | |
| SHIFT LEVERS | MICROSHIFT 7S |

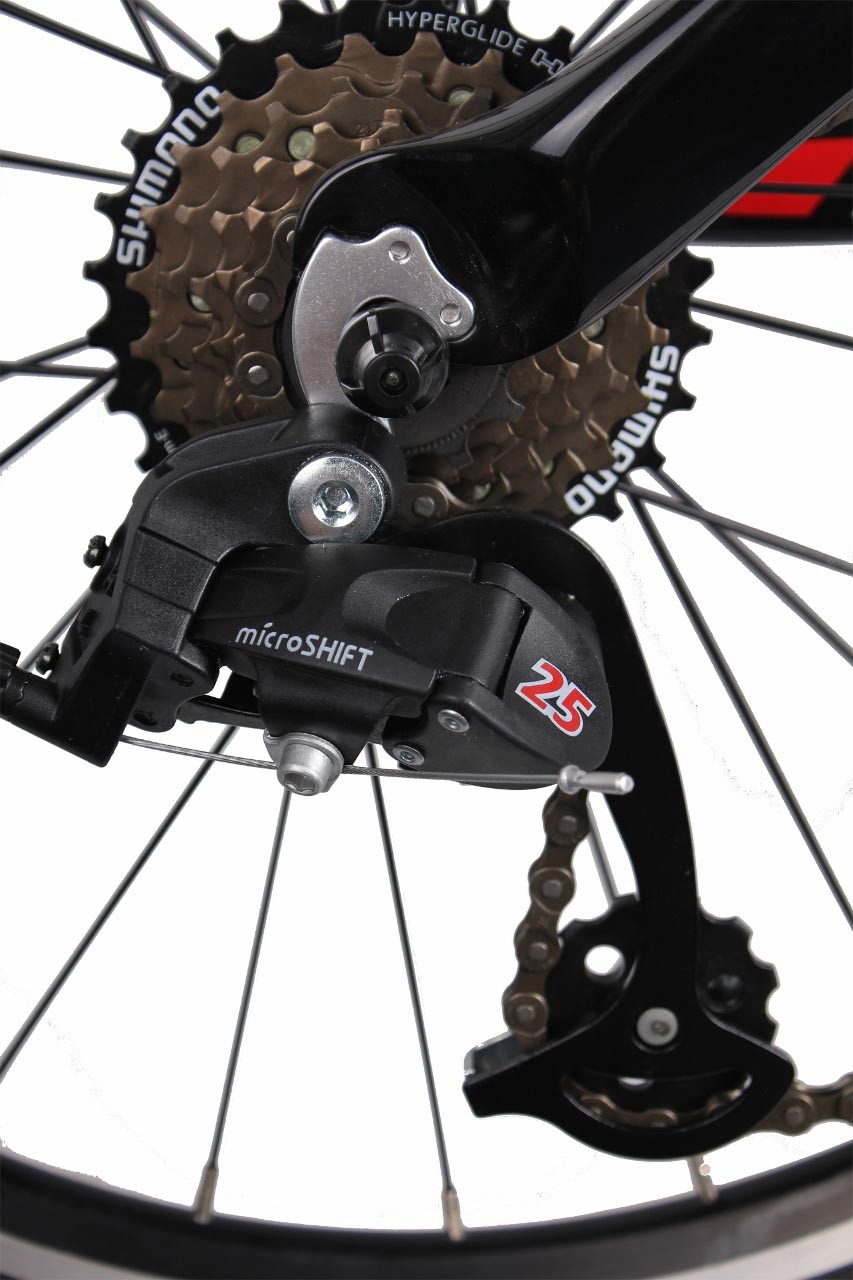

| REAR DERAILLEUR | MICROSHIFT 7S |
| STEM | ITM 31.8*90mm |
| HANDLEBARS | ITM 31.8*580mm |
| SEATPOST | ITM 31.6*350mm |
| SADDLE | WIEL, BLACK |
| CASSETTE | SUNRACE |
| HUBS | NOVATEC 271SB-20H/372SB-24H |
| SPOKE | SLE, DOUBLE BUTTED |
| RIMS | STARS CIRCLE, ALLOY |
| TIRE | CST 20*1*1/8 |
| INNER TUBES | CST 20*1.2 |
| WEIGHT | 8.8kg |
| GEOMETRY | |
| * *Not all sizes available in all markets | |
| Size | 320mm |
| Seat Tube (BB Center to Top) | 320mm |
| Top Tube (effective) | 558mm |
| Chain Stay (actual) | 410mm |
| Seat Tube Angle | 71° |
| Bottom Bracket Drop | 40mm |
| Head Tube Length | 130mm |
| Head Tube Angle | 71.5° |
| Seat-Post ID | 31.6mm |
| Seat-Clamp ID | 34.9mm |
| Fork Length | 295mm |
| Fork Rake | 45mm |
| Wheelbase | 1023.7mm |
| Front-Center | 616.91mm |
| Handle-Bar Width | 580mm |
| Crank Length | 170mm |
| Seat-Post Length | 350mm |
