Home > Products Show > Carbon Rim > Clincher Rim > 60mm clincher carbon road rim with TG point resin

60mm clincher carbon road rim with TG point resin

Products Visitors:1007

Product Name:60mm clincher carbon road rim with TG point resin
MODEL:FM-B076

Products description: 60mm clincher carbon road rim with TG point resin

Item	WH-R60-C
Model	60mm clincher carbon road rim with 240°C TG point
Size	*700c(633mm)60mm clincher/road**
Material	Full Carbon Fiber, high TG resin, 240°C TG
Patented Technology	3D Automatic Wrapping to make braking area more resilient & EPS as core for better molding
Depth	60mm
Appearance	3K/UD
Finish	matt /glossy
Tire Bead	13mm+0/-0.3mm
Holes	12/16/18/20/24/28/holes
Weight	535±15g/pc
Braking Width	20mm
Brake track top to bottom	14mm
Brake surface material	high temperature resist carbon fiber and resin
Rim ERD	521mm
Max recommended rider weight	250lbs
Single spoke max tension	300kgf
Max recommended inflated air pressure	130psi
Recommended for usage	Amateur/Daily Use/Training

Features

• Our patented technology makes sure the carbon rim super light and supper stiff, so that you will have a best performance when you are accelerating and sprinting.

• Our hot-melt carbon fiber prepreg weaving machine can provide the most applicable prepreg, where resin and carbon fiber are in their best expected content. It helps the quality of our every carbon fiber product stable.

• 3D automatic wrapping at the braking area, so that the carbon fiber can be super smoothly distributed there. Every fiber can be best performed.

• The automatic drilling machine offers the most precisely located spoke holes and assemble holes. It also can greatly reduce the labor cost.

• Strict controlling system makes sure our rims’ best quality.

• UCI and EN standard rim testing system to offer the top quality rims.

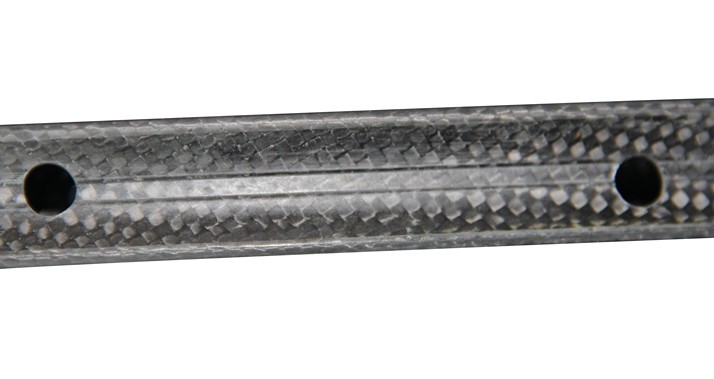

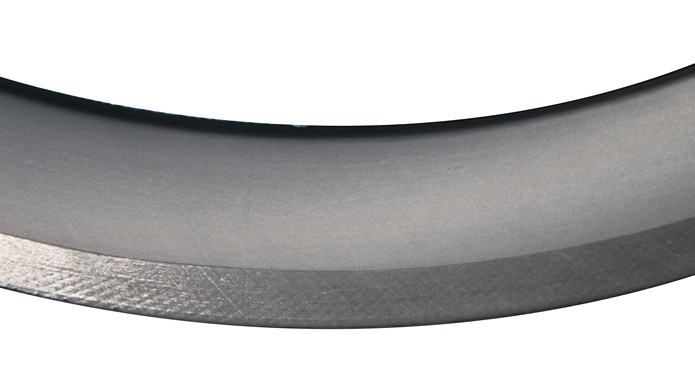

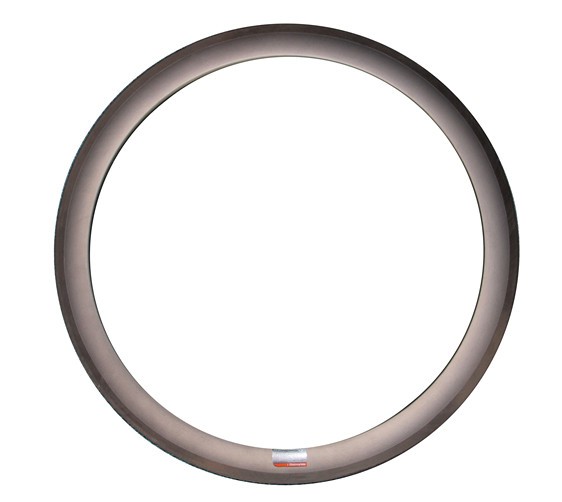

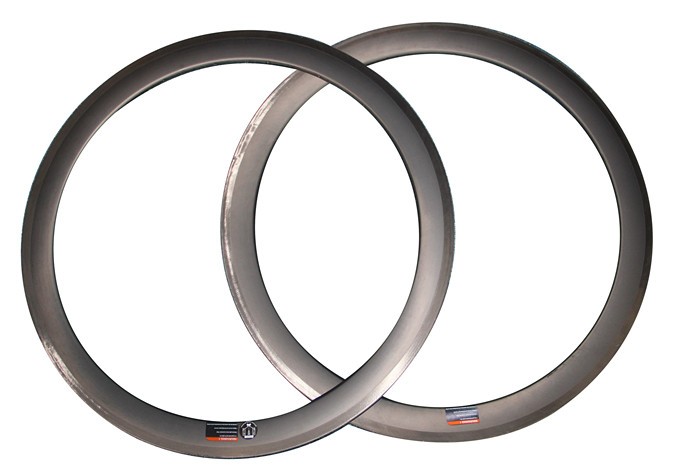

Product Images: 60mm clincher carbon road rim with TG point resin
