50mm tubular carbon road wheels with TG point

Products Visitors:632

Product Name:50mm tubular carbon road wheels with TG point
MODEL:FM-B076

Products description: 50mm tubular carbon road wheels with TG point

Item:	WH-50T
Model name:	50mm Tubular Road Carbon Wheels with 2:1 Spokes Ratio
Size:	*700c20mm tubular/road**
Material:	Full Carbon Fiber, high TG resin, 240°C TG
Patented Technology:	3D Automatic Wrapping to make braking area more resilient & EPS as core for better molding
Finish:	3k/UD matt /glossy
Brake track width:	20mm
Brake track area top to bottom:	14mm
Brake surface material:	high temperature resist carbon fiber and resin
Rim ERD:	541mm

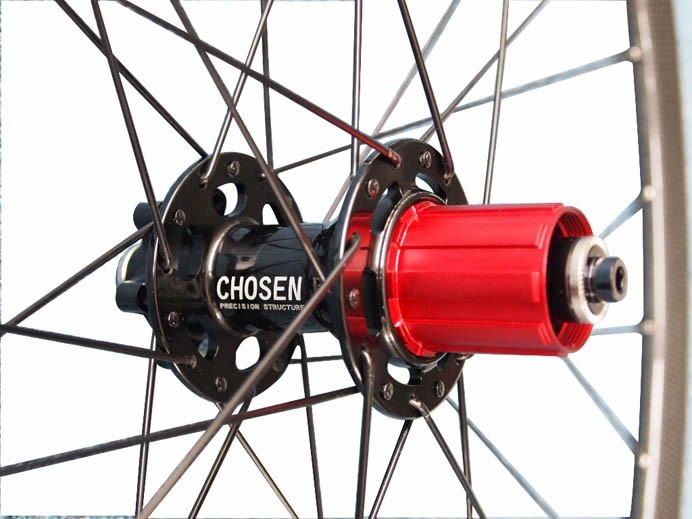

Hub:	Chosen alloy hubs, Black color, 82+222g=304g/pair, made in taiwan, With 2:1 rear spoke radio /other choices would be welcomed
Rotor:	Shimano 9/10/11 speed/ Campagnolo 10/11 speed
Spoke:	*Sapim Race spokes, Black color, 5.6g44=246.4g/pair, Other choices would be welcomed**
Spoke count:	Front:20holes; Rear:24holes /other choices would be welcomed
Lacing:	Front: radial(20);Rear: cross(16) drive side; radial(8) non-drive side Other choices would be welcomed
Spoke length:	Front: 255mm; Rear: 262mm(drive side), 248mm(non-drive side) Other choices would be welcomed
Nipple system:	Aluminum external nipple, sapim polyax sisl(back)
Weight of the wheelset:	1364±30g/pair,Front:600±30g/pc,Rear:764±30g/pc,Excluding Skewers
Max recommended rider weight:	250lbs
Max recommended tyre pressure:	130psi
Recommended for usage:	Professional cyclist/ compete use
Accessories:	Skewers, Brake pads, Spare Spoke set, Spare Nipples
Packing:	825mm x 170mm x 660mm
Warranty:	1 year

Features

• Our patented technology makes sure the carbon rim super light and supper stiff, so that you will have a best performance when you are accelerating and sprinting.

• Our hot-melt carbon fiber prepreg weaving machine can provide the most applicable prepreg, where resin and carbon fiber are in their best expected content. It helps the quality of our every carbon fiber product stable.

• 3D automatic wrapping at the braking area, so that the carbon fiber can be super smoothly distributed there. Every fiber can be best performed.

• The automatic drilling machine offers the most precisely located spoke holes and assemble holes. It also can greatly reduce the labor cost.

• Strict controlling system makes sure our rims’ best quality.

• UCI and EN standard rim testing system to offer the top quality rims.

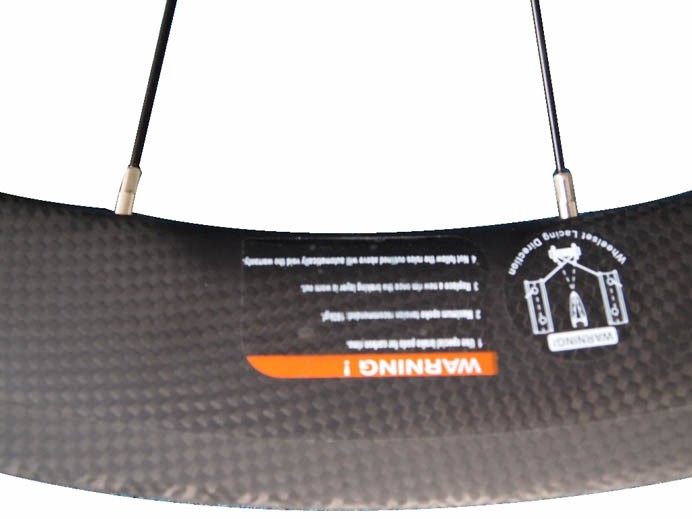

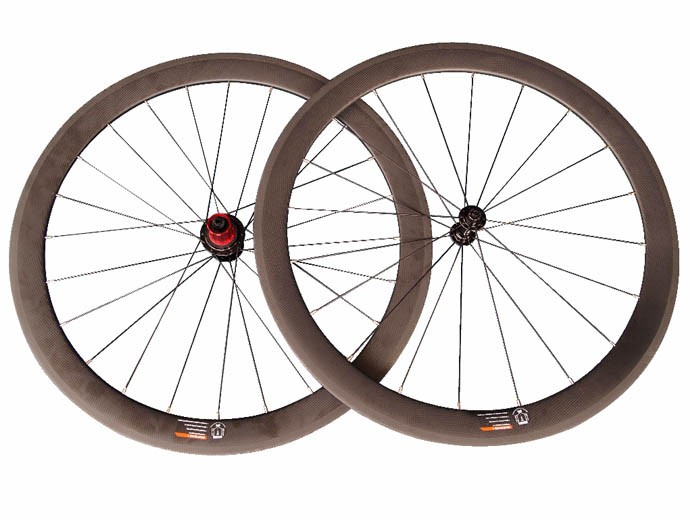

Product Images: 50mm tubular carbon road wheels with TG point
