Home > Products Show > Carbon Rim > MTB Rim > 27.5 inch full carbon MTB rim 650B, with TG resin

27.5 inch full carbon MTB rim 650B, with TG resin

Products Visitors:623

Product Name:27.5 inch full carbon MTB rim 650B, with TG resin
MODEL:FM-B076

Products description: 27.5 inch full carbon MTB rim 650B, with TG resin

Item	WH-R25-M
Model	27.5 inch full carbon MTB rim 650B, with 240°C TG resin
Size	596mm
Material	Full Carbon Fiber, high TG resin, 240°C TG
Patented Technology	3D Automatic Wrapping to make braking area more resilient&EPSas core for better molding
Depth	25mm
Appearance	3K/UD
Finish	matt /glossy
Tire Bead	17mm+0/-0.3mm
Holes	24/28/32holes
Weight	420±15g/pc

Braking Width	25mm
Brake surface material	high temperature resist carbon fiber and resin
Rim ERD	560mm
Max recommended rider weight	230lbs
Single spoke max tension	300kgf
Max recommended inflated air pressure	65psi
Recommended for usage	Amateur/Daily Use/Training

Features

• Our patented technology makes sure the carbon rim super light and supper stiff, so that you will have a best performance when you are accelerating and sprinting.
• Our hot-melt carbon fiber prepreg weaving machine can provide the most applicable prepreg, where resin and carbon fiber are in their best expected content. It helps the quality of our every carbon fiber product stable.
• 3D automatic wrapping at the braking area, so that the carbon fiber can be super smoothly distributed there. Every fiber can be best performed.
• The automatic drilling machine offers the most precisely located spoke holes and assemble holes. It also can greatly reduce the labor cost.
• Strict controlling system makes sure our rims’ best quality.
• UCI and EN standard rim testing system to offer the top quality rims.

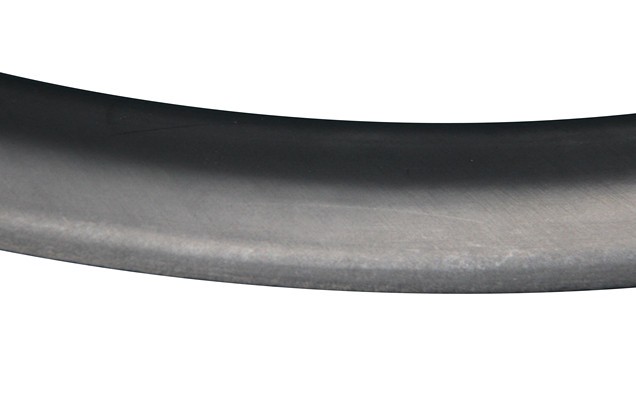

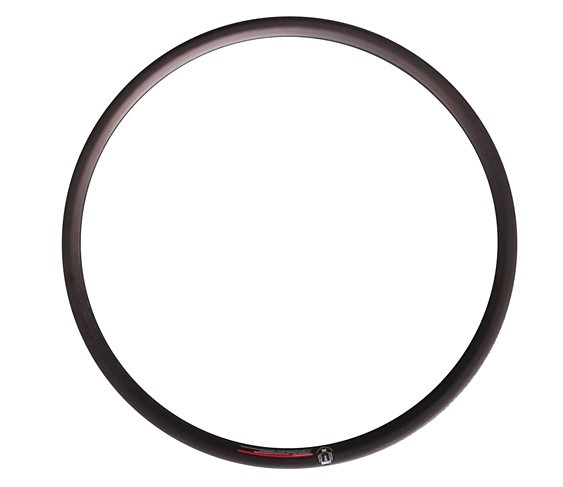

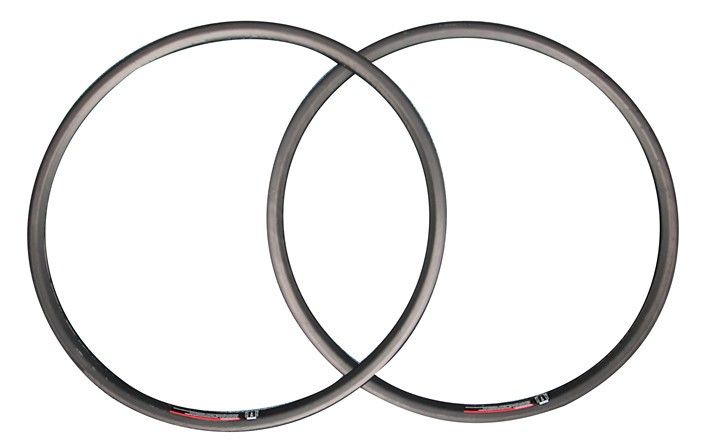

Product Images: 27.5 inch full carbon MTB rim 650B, with TG resin
