Item |
WH-M23-C |
|
Model |

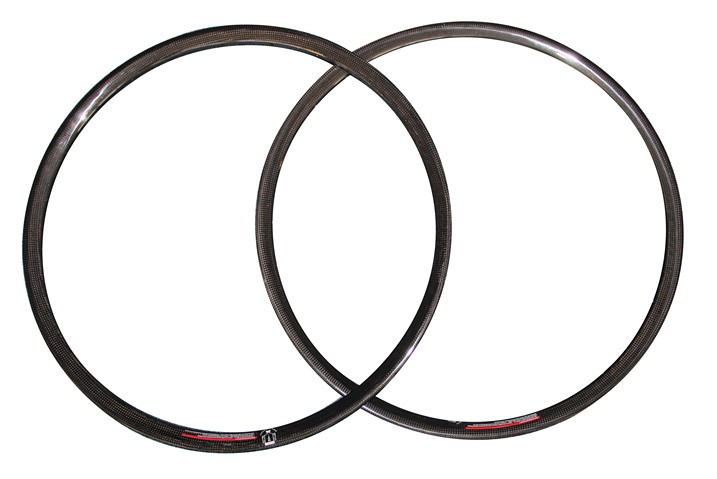

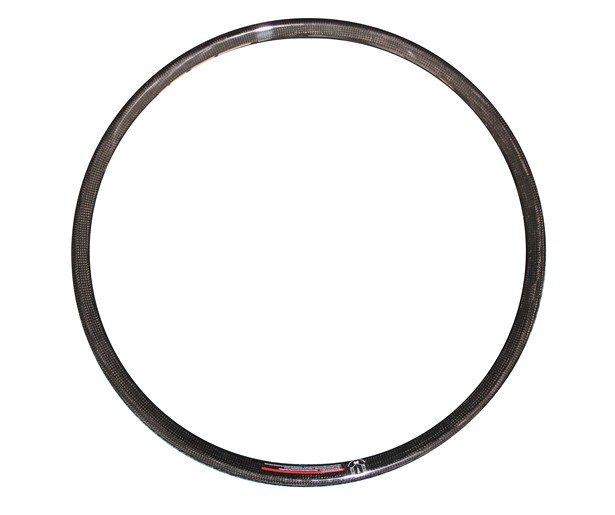

26er full carbon MTB rim, with 240°C TG resin |
|
Size |
574mm |
|
Material |
Full Carbon Fiber, high TG resin, 240°C TG |
|
Patented Technology |
3D Automatic Wrapping to make braking area more resilient &EPS as core for better molding |
|
Depth |
23mm |
|
Appearance |
3K/UD |
|
Finish |
matt /glossy |
|
Tire Bead |
17mm+0/-0.3mm |
|
Holes |
24/28/32holes |
|
Weight |
323±15g/pc |
|
|
|
|
Braking Width |
24mm |
|
Brake surface material |
high temperature resist carbon fiber and resin |
|
Rim ERD |
538mm |
|
Max recommended rider weight |
230lbs |
|
Single spoke max tension |
300kgf |
|
Max recommended inflated air pressure |
130psi |
|
Recommended for usage |
Amateur/Daily Use/Training |
Features
•Our patented technology makes sure the carbon rim super light and supper stiff, so that you will have a best performance when you are accelerating and sprinting.
• Our hotmelt carbon fiber prepreg weaving machine can provide the most applicable prepreg, where resin and carbon fiber are in their best expected content. It helps the quality of our every carbon fiber product stable.

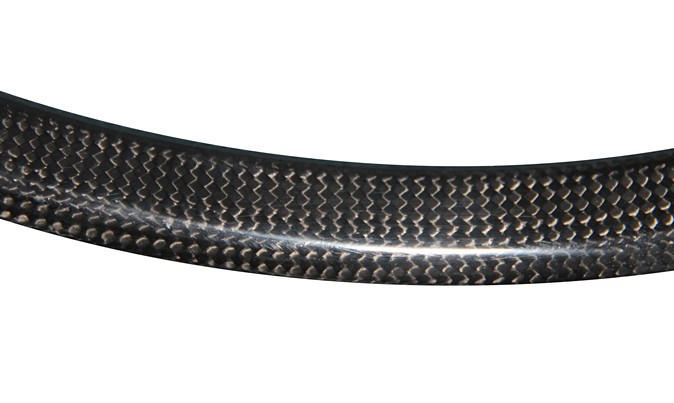

•3D automatic wrapping at the braking area, so that the carbon fiber can be super smoothly distributed there. Every fiber can be best performed.
The automatic drilling machine offers the most precisely located spoke holes and assemble holes. It also can greatly reduce the labor cost.•Strict controlling system makes sure our rims’ best quality.
•UCI and EN standard rim testing system to offer the top quality rims.
