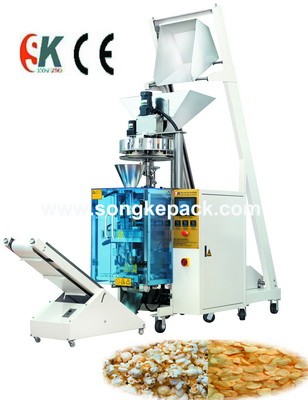

Vertical automatic packaging machine
volumetric cup metering packaging machinery Auger type filling vertical packaging machine multi-heads combined weighing packaging mechine Semi-automatic vertical packaging machine Pillow packing machine Automatic bag-feeding packaging machine pouch bag packaging machine Combination weigher Check weigher Metal detector Nitrogen -making machine Packaging machine equipment
;){kind=small}
Suitable for packing infrangible with regular shaped granule goods such as nuts,beans,soybeans,peanuts,popcorn,puffy food,sugar,salt,candy,small biscuit,cookies and so on.
Standard Technique Specification:
|
Principal packing machine type |
SK-420 |
|
Metering system |
Volumetric cup measuring system |
|
Material conveyor |
Simple hopper material conveyor |
|
Standard sealing form |
Back sealing |
|
Film material |
OPP/CPP,OPP/CE,MST/PE/PET/PE |
|
Bag length |
80 |
|
Bag width |
80 |
|
Film roll dia. |
Max |
|
Packing speed |
5-60bag/min |
|
Packing thickness |
0.04 |
|
Power supply specification |
220V,50/60Hz,3KAV |
Feature:
1.This machine is with high precision structure for simple and easy operation and repair.
2.Two synchronous belt device and servomotor film transporting system, makes the film move stably and form bag smoothly.
3.Two independent sealing cylinders design,makes the excellent sealing and nice sealing stripes.
4.PLC system and large touch screen,high automatic ,simple operation and maintenance, it works with low noise and stable.
5.Adopt external film feeding mechanism. Film setting will be more easy and quick.
6.Different kinds of sealing forms are available according to customers' requirement.
7.Volumetric cup measuring system with photocell eye,high efficiency.
Optional devices:
1. Nitrogen gas flushing
2. Vacuum packing device
3. Flip device
4. Gusset device
5. Hole punch device
6. Linking bag device
7. Tear notch device
8. PE sealing system
