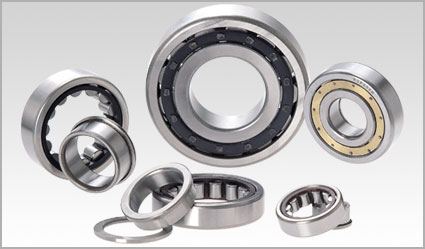

The structure of cylindrical roller bearing is distinguished in accordance with the different shoulders. Model NU cylindrical roller bearing has the outer ring with two shoulders and one inner ring without shoulder. As for Model N cylindrical roller bearing, the inner ring has two shoulders and the outer ring has no shoulder. Model NU, N cylindrical roller bearings are running bearings. The inner ring and outer ring can be separated conveniently for mounting and dismounting. As for Model NJ cylindrical roller bearing, the outer ring has double shoulders and the inner ring has single shoulder. As for Model NF cylindrical roller bearing, the inner ring has double shoulder and the outer has single shoulder, they can withstand the single-directional axial force. Model NUP cylindrical roller bearing is used as fixing bearing, withstanding the alternate directional axial force. The
outer ring of it has double shoulder and one baffle ring

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions			Basic Load Rating		Limiting Speed
	Current Code	Original Code		d	D	C	Dynamic	Static	Grease	Oil
mm			g	mm			N		rpm
