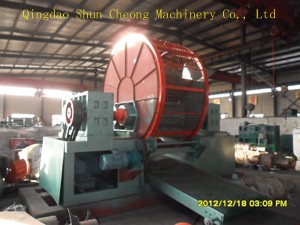

Whole Tire Shredder,Rubber Shredding Machine ZPS-900

This product is our company introduced the advanced technology research and absorbing and second generation product. At the general temperature, can be put directly crushed into 50 * 50 block, so the next rotating can grind into 10-30 meshes or wire and fiber separation equipment.

Feature:

This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; rotary screen for the lattice structure of steel mesh, blanking large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!

Mechanical description: the tire of 800mm diameter and rubber ring can directly be broken into 50-300 mm of rubber block.

Principle:

Motor drive hydraulic motors through planetary gear reducer with a strong cutting torque, under general temperature, continuous cutting, pressing, frustrated, after grinding, crushing the material into the cutting room the initial cut into blocks, the automatic sorting sieve screen, broken qualified material output, the rest of the larger materials with other materials to be broken again with the broken back to cutting room, and so forth until the output of qualified circulation of materials.
