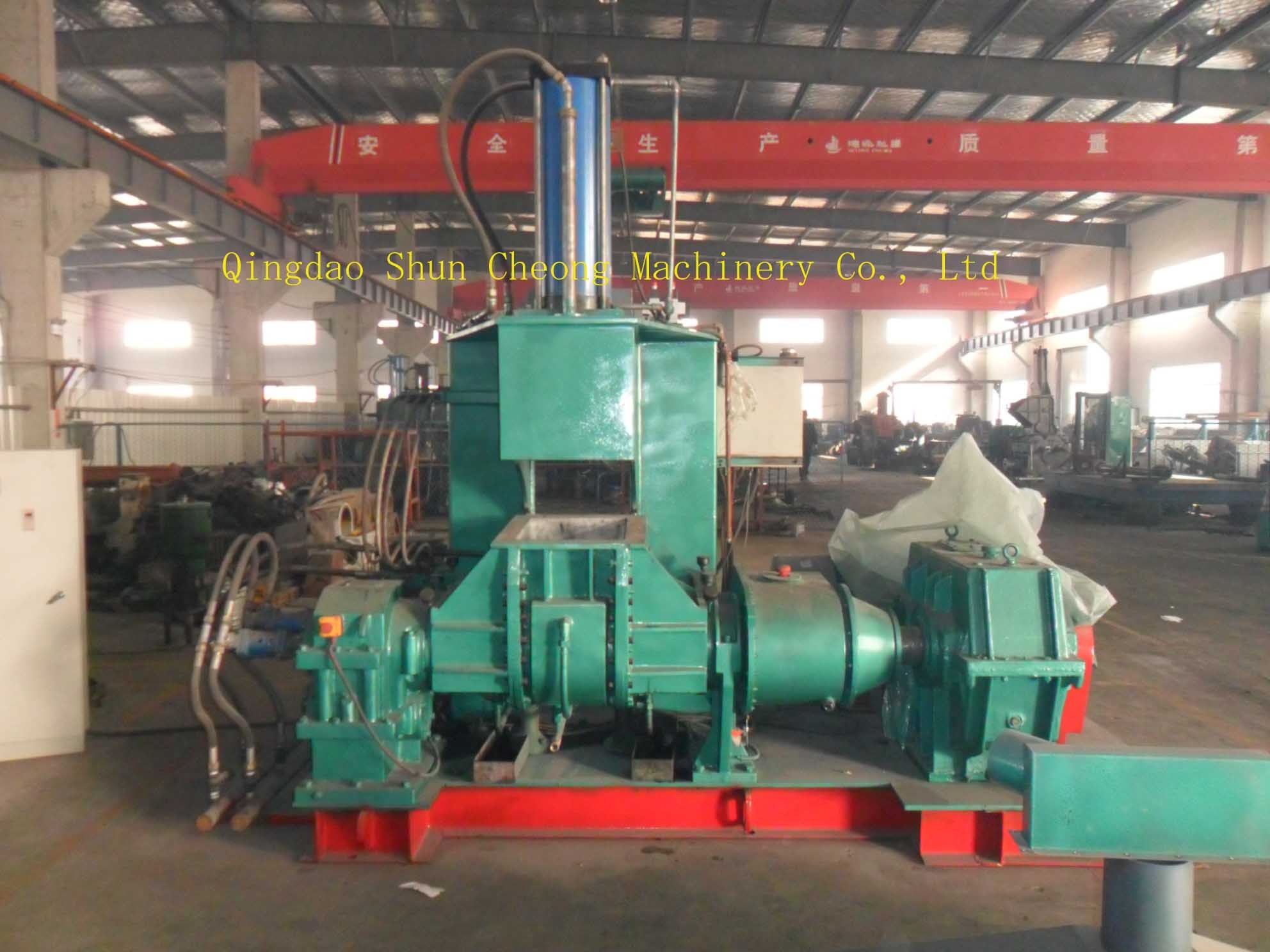

Rubber Kneader,Rubber Dispersion Kneader,Rubber Internal Mixer

Features:

1.      Mixing chamber

It is high-quality steel plate welded. It composed of the body and two side panels. Use of the jacket structure, for cooling or Heating Used. Inner face Chrome-plated.

2.      Thermal Resistance

Mixing chamber underside Central with a plug-in thermal resistance, with PLC, Detection, control, is mixing temperature.

3.      Rotor

It is similar with Banbury Rotor. Rotor axis central have hole communicate with the wing, forming of cooling and heating channels. Arrises peak and the end surface welded wear-resistant carbide, through hard chrome plating after polishing.

4.      Heating and cooling systems

 A common set of piping systems, cooling water or heating steam in three columns to pass into the rotor wing, Mixing chamber and ram room, circulating cooling or heating for the Materials.

5.      Tilting mechanism:

Brake motors, cycloid speed reducer, sprial gear and helical gear develop the second speed reducing device.The drive mixing chamber around the rotor to flip 140°

6.      Dust stop

Using rotor shaft and the end surface three defense lines floating oil film sealing, Durable and completely solve the problem of leaking powder.

7.      Main transmission System

Including the main motor, reducer, the speed ratio gear box, two rotors is the opposite differential rotation speed.

8.      Gas control system

Including the PLC order control, two-way cylinder to drive the ram lift and down. When mixing overload, the ram automatically go up to protect motor. If necessary, you can manually force the ram go up.

 9.  Electronic control system

     Used import PLC device, all imported electrical components or introduced technology products improve system reliability.
