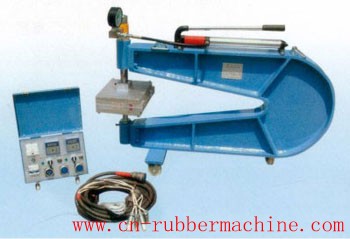

Hydraulic Point Belt Vulcanizing Repair Machine JXQ series of hydraulic-point belt vulcanizing repair machines, the frame is welded by high strength aluminum alloy, heating plate, pressure plate are made by aluminum alloy, the machine size is samll, light weight, with self-propelled device, easy handling, safe and reliable. For repair tape is less than 300 * 300 DOT damage. The main specifications are JXQ-250 * 300.
Introduction:
During the running of conveyor, due to certain reasons, such as weight, fall, and equipment malfunction, etc, may lead to the exposure or leaking material. You must repair it immediately, when you use our repair machine, please repair it by vulcanization way on the surface of belt as the transporter stopping.
Characteristics and Usage:
Electrical Conveyor Belt Repair Machine mainly uses to repair the small area broken belt and restore the broken core layer. It's repairing a spot or a piece of belt. Its characteristics are: Simple structure, light in weight, operate easily and lower the cost relying on the help of cross beam of vulcanizer machine, as it's the same operating method with curing machine.
Technical Parameters:
Electrical Conveyor Belt Repair Machine divides as the high- voltage and low- voltage machines.
1. Sulfide Pressure: 0.5Mpa;
2. Temperature: 145;
3. Rated Power: 2 KW;
4. Repairing maximum belt width: 1, 400 mm.
|
No. |
Name |
|
Data and Type |
||
|
1 |
Repair temperature |
℃ |
145 |
145 |
|
|
2 |
Repair pressure |
MPa |
1.0 |
0.5 |
|
|
3 |
Platen Heating time |
min |
＜30 |
＜30 |
|
|
4 |
Time to repair |
min |
According to the conveyor belt thickness |
＜20 |
|
|
5 |
Operating voltage |
V |
380 |
380 |
|
|
6 |
Total power |
KW |
1.96 |
1.96 |
|
|
7 |
Frame Number of roots |
Set |
2（up and down each 1） |
1（Body） |
|
|
8 |
Platen |
Power |
KW |
0.98 |
0.98 |
|
9 |
Water pressure plate |
Pressure of water |
MPa |
1.2 |
0.7 |
|
10 |
Test pump |
Model |
MPa |
S-SY12.5/4 |
S-SY12.5/4 |
|
11 |
Electrical control box |
Main circuit voltage Control loop voltage
Output power |
V |
380 |
380 |
