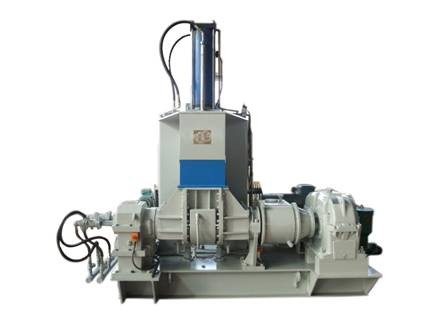

Dispersion Kneader,Rubber Interal Mixer X(S)N-35L

New Type Rubber Kneader Advantage:

1. Three sealing line of defense can be repeated to form a floating zero-friction oil film seal.

Copper seal ring wear resistant for long time Completely solved the world problems of powder leakage the mixing rubber is stable quality.

2. Seals zero friction, Can be energy-saving more than 10%, The sealing system is not easy to damage, saving maintenance costs.

3. Flip system uses a spiral bevel gear reducer, Two level drive, Stability and durability, Long service life.

4. Automatic lubrication system, Intermittent, regular quantitative oil.

Item		X(S)N-35x 30	X(S)N-55x 30	X(S)N-75 x30	X(S)N-110x30	X(S)M-150 x30
Total Volume of Kneading Chamber	L	75	125	180	250	325
Total Volume of Mixing Chamber	L	35	55	75	110	150
Driving Motor Power	KW	55	75	110	185	220
Tipping Motor Power	KW	1.1	1.1	2.2	4	5.5
Tipping Angle		140	140	140	140	140
Rotate Speed (Front / Rear)	r/min	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air	MPa	0.5~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Flow Rate of Compressed Air	m3/min	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0
Cooling Water Pressure ( Rubber Mixing)	MPa	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heated Steam (Plastic Mixing )	MPa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall Dimension	mm	3800x2100 x3000	4400x2200 x3100	4500x2500 x3200	4800x3000 x3700	5000x3300 x3900
Weight	Kg	6500	7800	10500	14500	19500
