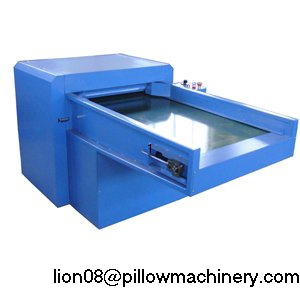

Fiber opening machine

Specification:

• Model 1:
• Item no.: SX1710-A7H
• Dimension: 2400*1010*1010mm
• Voltage: 380v 50Hz 3phase
• Power: 6.25kw
• Capacity: 200-250kg/h
• Weight: 580kg

Model 2:

• Item no.: SX1790-A7H
• Dimension: 2400*1100*1010mm
• Voltage: 380v 50Hz 3phase
• Power: 6.25kw
• Capacity: 280-320kg/h
• Weight: 680kg

Model 3:

• Item no.: QL1000-A7H
• Dimension: 2400*1310*1010mm
• Voltage: 380v 50Hz 3phase
• Power: 8.25kw
• Capacity: 400-450kg/h
• Weight: 780kg

Description:

• The fiber opening machine is mainly used for opening conjugated hollow silicon polyester fiber that short than 100mm length.
• Automatic raw material feeding conveyer sends the material into the rollers automatically that assures the operators safety
• The developed rollers that assembled with metallic self-lock V model wire that the fiber can be opened for more than 98% to 100% and not be damaged.
• High opening capacity that can be 150kg to 450kg per hour according to different machine model and the material
• It can be handled by only one operator with simple operation
• Good dynamic balance processing that assured the machine running without shaking and noise
• The main structure is made by computerized laser cutting machine which is very stable quality to the machine.
• We are producing our machines by Australia safe standard and all electricity key parts are imported.
• Overload protection
• Long life operation and lower repairing rate
• Easy to maintain & good after sale service
• Please feel free to contact us for more photos & VD
