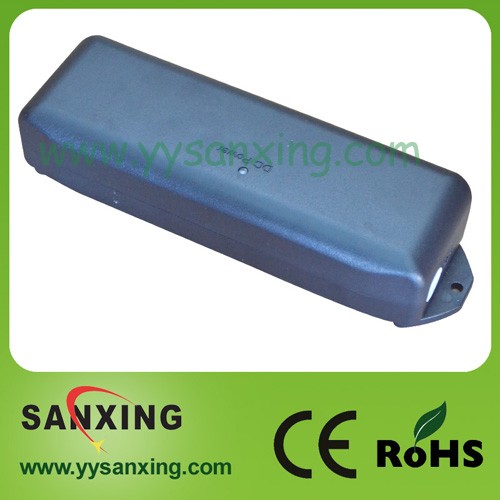

1.       Summary

Linear actuator adapter is an interface converter. Linear actuator adapter can be a separate hardware interface device, and allows hardware or electronic interface to connect with other hardware or electronic interface, also can be the information interface. For example: power adapter, a tripod base through parts, USB and serial connecting equipment, etc. Linear actuator adapter is the power supply transform equipment of small portable electronic equipment and electronic appliances. It generally composed by shell, power transformers and rectifier circuit. According to the output type, adapter can be divided into AC output type and DC output type; According to the connection mode, adapter can be divided into wall type and desktop type. As mobile PC without battery, power adapter is especially important to it.

2.       Operating principle

(1) 220 V AC voltage power supply is reduced to a proper voltage.

(2) Buck the low voltage after rectification, change alternating current to pulse direct current.

(3) Pulse direct capacitor with capacitance filter into a flat direct current.

3.       Installation dimension

4.       Specifications

5.       Notice for ordering

(1) Users reference series linear actuator adapter specifications and installation dimension which our factory provides, and choose appropriate linear actuator adapter, then put forward the linear actuator adapter model.

(2) If users need linear actuator adapter accessories, such as linear actuator, control box and handset, our factory can supply a complete set, it also can be supplied alone.

(3) From the date of delivery within a year, the user in normal conditions, with the linear actuator adapter quality issues caused by mechanical failure or damage, our factory is responsible for maintenance.

(4) Welcome new and old customers place orders.
