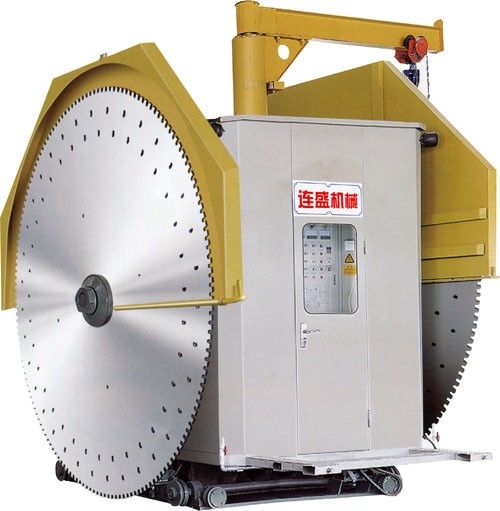

1.YZK1950/2450 Quarry stone cutting machine--quarry granite
2.High efficient and energy saving
3.Using diamond segment
4.Passed CE
Quarry Stone Cutting Machine is much popular to granite & marble quarry
1.this machine is a modification of original style.
2.the rising and falling of main spindle is controlled by the hydraulic pressure of the oil cylinder
3.four cylinders as the guide
4.more efficient and energy saving.
NAME |
UNIT |
YZK-1360/1900 |
YZK-1500/2000 |
YZK-1950/2450 |
YZK-2600/3100 |
Blade diameter |
mm |
φ2200~φ3500x2 |
φ2200~φ3600x2 |
φ2200~φ4800x2 |
φ2200~φ4800x2 |
cutting depth |
mm |
850~1500 |
850~1550 |
850~2200 |
850~2200 |
Cutting width |
mm |
1360~1900 |
1500~2000 |
1950~2450 |
2600~2000 |
Power of main motor |
kW |
30~45x2 |
30~45x2 |
37~55x2 |
37~55x2 |
Water consumption |
m²/h |
5 |
5 |
5 |
5 |
Power of totall |
kw |
79.2~95.2 |
79.2~95.2 |
79.2~115.2 |
79.2~115.2 |
Gross weight |
kg |
≈8000 |
≈8000 |
≈11000 |
≈11500 |
Dimensions(L×W×H) |
mm |
3550x1450x2850 |
3550x1600x2850 |
5200x2100x3600 |
5200x2700x3600 |
Mark |
we can supply railway with 18#(light)and 21#(light) |
