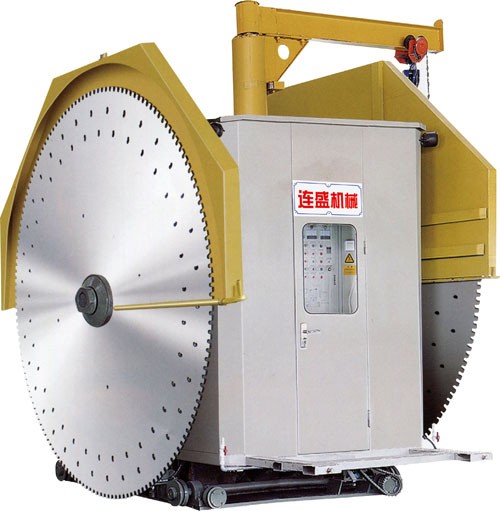

Double blade stone cutting machine

Product Catalogue

Company Name:
Liansheng Hydraulic Machinery Co ., Ltd
Contact Person: Peter Cai
Tel: 86-592-6015077
Mobile:
Fax: 86-592-6015079
Email: rongsheng01@lianshengcs.com
Address:
Quanzhou Export processing Zone
WebSite:
http://www.yeskey.com/space/rongsheng014222/
http://www.lianshengcs.com

Products Visitors:1035

1.Marble block cutter
2.High efficient and energy saving
3.Using diamond segment
4.Passed CE

Double blade mining machine is much popular to granite&marble quarry
1.this machine is a modification of original style.

2.the rising and falling of main spindle is controlled by the hydraulic pressure of the oil cylinder

3.four cylinders as the guide

4.more efficient and energy saving.

Double blade mining machine data

NAME	UNIT	YZK-1360/1900	YZK-1500/2000	YZK-1950/2450	YZK-2600/3100
Blade diameter	mm	φ 2200--φ 3500x2	φ 2200--φ 3600x2	φ 2200--φ 4800x2	φ 2200--φ 4800x2
cutting depth	mm	850--1500	850--1550	850--2200	850--2200
Cutting width	mm	1360--1900	1500--2000	1950--2450	2600--2000
Power of main motor	kW	30--45x2	30--45x2	37--55x2	37--55x2
Water consumption	m² /h	5	5	5	5
Power of totall	kw	79.2--95.2	79.2--95.2	79.2--115.2	79.2--115.2
Gross weight	kg	≈ 8000	≈ 8000	≈ 11000	≈ 11500
Dimensions(L× W× H)	mm	3550x1450x2850	3550x1600x2850	5200x2100x3600	5200x2700x3600
Mark	we can supply railway with 18#(light)and 21#(light)
