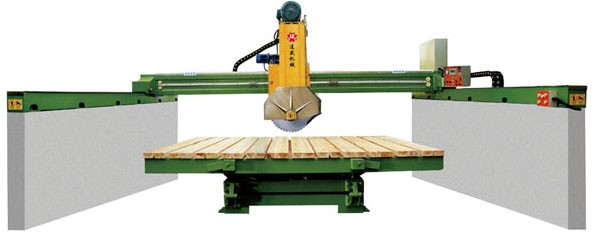

Infrared Automatic Stone Cutter
|
Technical Data |
||
|
Item |
unit |
LS-600-1000 SERIES |
|
Blades Diameter |
mm |
Φ600 Φ800 Φ1000 |
|
Blade up and down stroke |
mm |
450 |
|
Main motor power |
kw |
18.5 |
|
Feeding motor |
kw |
1.5 |
|
Slicing motor |
kw |
1.1 |
|
Max.cutting size |
mm |
3200 x 2000 |
|
Workable rotation angle (by hydraulic) |
|
90° or 360° |
|
Workable upturning angle |
|
0° ~85° |
|
Dimension (L x W x H) |
mm |
6300 x 4700 x 2800 |
|
Weight |
Kg |
6500 |
