QINGDAO RAINBOW FOODSTUFF MACHINERY CO.,LTD

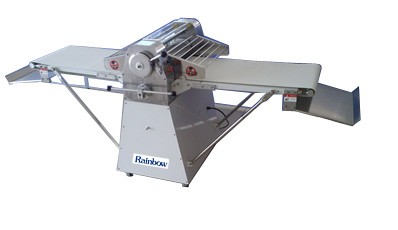

1 The items:dough sheeter
2 the model QDR-600+
3 Voltage 380V
4 Power:0.75KW
5 Conveyor spec :630*2400mm
6 Weight:250Kg
7 packing size :1200*3100*1330mm
8 External size :1100*3000*1180mm
9 QTY20GP/40GP:6sets/10sets
10 Price :FOBqingdao port get the latest price
11 Delivery time :10 -80working-days
12 supply ability :20 sets per week
13 Original place :Shandong ,china
14 The packing : The wood carton
15 MOQ:1 set
16 Payment : T/T ,30% as deposit and the balance against L/C on representation of copy B/L ,western union ..
1 Going ahead as the arrow direction,the the mixer move with double speed if opposite direction .
2 The speed of double motor can be set from low speed to high speed automatically ,
automatic set Ding machine, reasonable design.two motor rotation alone
3 There is much less space between mixing hook with uniform,
reasonable radian and bottom ,which even can mix together with moisture and flour
B style
The style of machine can be manual and can be customized
Notice :
1 Do not scrape bowl whiling mixer is operating
2 make sure the plug is not half connected or not ,it will damage the motor
Installation and important notes:
1. Place the machine on the horizontal floor, and the environment should keep
in the suitable temperature.
Check the power supply corresponds to the machine requires
and make sure the wires are connected properly
!!! Warning: the machine must be earthed properly!
2. After checked by professional electrician, turn on the power
switch on the right side of the machine and
check whether the indicator lamp is on.
The rotation direction must be consistent with the mark shown on bowl.
Or else shut off the power
and change another power wire.
3. Raise the safe-cover, the machine will be stopped and cannot be working.
If you want to start the machine, you should lay down the safe-cover at its original position and press start button.
4. Raise the safe-cover and put adequate flour into the bowl each time( do not beyond the rated maximum)
5. fill the bowl with water whose weight is 45%-50% of the required flour
6. Put down the safe-cover and start the machine
7. When the dough has been kneaded (probably for 8 minutes), please push stop-button to stop the machine. Then open the safe-cover and take out the dough.
