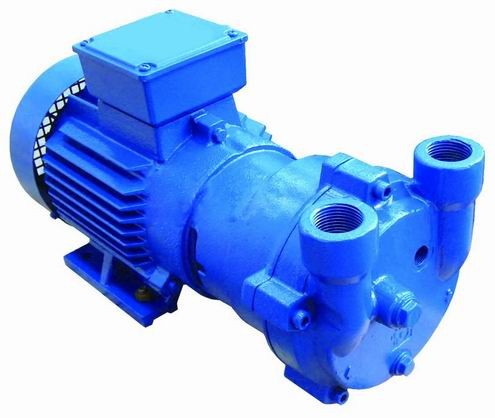

Liquid ring vacuum pump 2BV2 series
2BV2 series water ring vacuum pumps are suitable for pumping the gases and steam. Its suction pressure can reach 33mbar (abs) (i.e. 97 % vacuum degree). If the transformer oil is used as the operating liquid, these pumps are called oil ring vacuum pump and the suction pressure can reach 6.7mbar (abs) (i.e. 99 % vacuum degree). So the oil ring vacuum pumps can replace the reciprocated vacuum pumps completely. When the liquid ring vacuum pumps work under the condition near the limited vacuum for a long time, it is necessary to couple with the cavitation protection pipe in order to get rid of the screaming and protect the pump.
When the compressors work, the maximum pressure is 0.26MPa(abs). And the higher of discharge pressure, the larger of the power of the compressors. So it is necessary that the data of the discharge pressure is provided to choose the proper motor.
2BV2 series water ring vacuum pumps and compressors will replace the SK and 2SK series water ring pumps and the W, WY, WL series reciprocated vacuum pumps completely with their superior performance and advantages.
|
Model |
Power (kW) |
Suction capacity (m³/h) |
Operating liquid flow （m³/h） |
Weight （kg） |
Noise （dBA） |
|
2BV2060 |
0.81 |
27 |
0.12 |
33 |
62 |
|
2BV2061 |
1.45 |
52 |
0.12 |
34 |
65 |
|
2BV2070 |
2.35 |
80 |
0.15 |
54 |
66 |
|
2BV2071 |
3.85 |
110 |
0.25 |
62 |
72 |
|
Model |
A |
B |
B1 |
R |
T |
H4 |
P2 |
M |
E |
S2 |
d/DIN |
|
2BV2 060 |
455 |
186 |
140 |
217 |
110 |
195 |
250 |
244 |
100 |
￠10 |
G1’’ |
|
2BV2 061 |
476 |
186 |
140 |
236 |
110 |
195 |
250 |
283 |
100 |
￠10 |
G1’’ |
|
2BV2 070 |
545 |
223 |
160 |
252 |
110 |
222 |
270 |
280 |
100 |
￠12 |
G1/’’ |
|
2BV2 071 |
566 |
223 |
190 |
278 |
110 |
234 |
300 |
309 |
100 |
￠12 |
G1/’’ |
