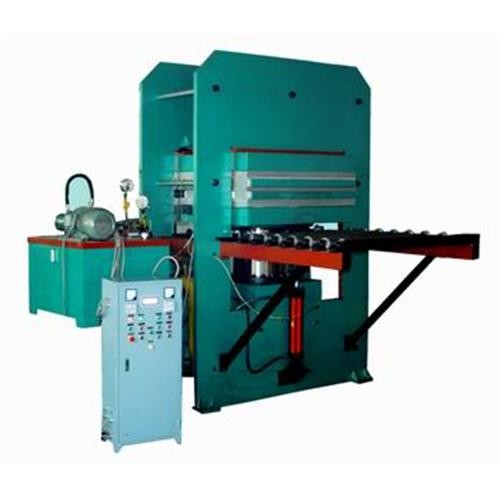

Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
Type XLB-DQ1200×1200×2 XLB-DQ1300×2000×1 XLB-Q1200×2500×1 XLB-Q1500×2000×1 XLB-Q2000×3000×1 XLB-Q1400×5700×1 Total pressure(MN) 315t 560t 750t 1000t 1800t 2800t Platen size(mm) 1200×1200 1300×2000 1200×2500 1500×2000 2000×3000 1400×5700 Daylight (mm) 200 400 400 400 400 400 No of Daylights 2 1 1 1 1 1 Piston stroke(mm) 400 400 400 400 400 400 Plate Unit Area pressure(Kg/cm2) 22 21.5 25 33.5 30 35 Main motor power(KW) 3 8 9.5 11 26 43.5 Overall dimension(L×W×H)(mm) 1685×1320×2450 2000×1860×2500 2560×1700×2780 2810×1550×3325 2900×3200×2860 2400×5800×3600 Weight(kg) 9500 17000 20000 24000 66000 110000
