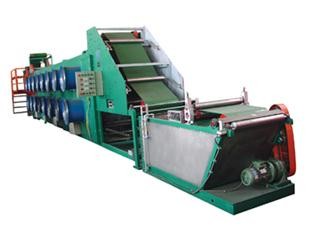

Batch off machine is the downstream auxiliary to the mixer or the dispersion mixer. It works with the double conical-screw extruder sheeter and is designed to perform continuous operations of rubber slab conveying, separant applying, air cooling, drying, cutting and wig-wag stacking.
Model |
XPG-600 |
XPG-800 |
|
Max.Rubber sheet width (mm) |
600 |
800 |
|
The thickness of the rubber sheet (mm) |
4-10 |
4-10 |
|
Temperature over room temperature |
10 |
15 |
|
Linear speed of taking-in conveyer (m/min) |
24.075 |
35 |
|
Linear speed of sheet hanging chain (m/min) |
0.822 |
0.117-1.17 |
|
Hanging height of the sheet hanging bar (mm) |
1000-1500 |
1000-1500 |
|
Number of cooing fans Sets |
12 |
20 |
|
Total power (kw) |
13.7 |
28.8 |
|
Overall dimensions(L*W*H) mm |
14253*4500*3405 |
16800*4700*3520 |
|
About weight (t) |
11 |
16.8 |
