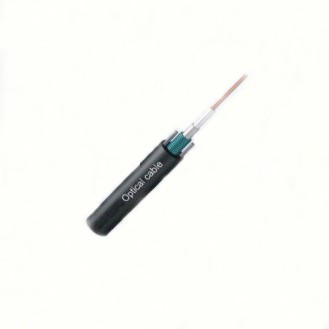

Central tube type optical fiber cable for outdoor
Structure: Central tube type, Jelly filled within cable core, Double steel wires as strength member, Steel tape with PE sheath.
Applications: Local area network system, Long distance communication system, Subscriber network system.
Installation method: Conduit, aerial, cable trench, direct burial.
Operating temperature: -40℃~+70℃
Cable specifications:
Fiber count |
Out diameter (mm) |
Cable Wt. (Kg/km) |
Max. tensile strength (N) |
Max. crush resistance (N/10mm) |
2-8 |
8.2 |
73 |
1500 |
2000 |
10-12 |
8.5 |
80 |
1500 |
2000 |
Cable cross-section:
