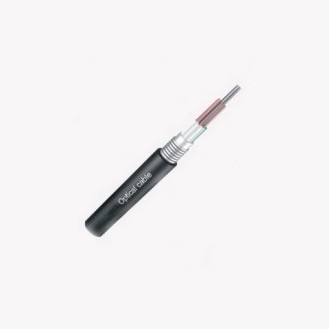

Structure: Metallic strength member, Loose tube stranded and filled with jelly, Corrugated steel tape with PE outer sheath.
Applications: Local area network system, Long distance communication system, Subscriber network system.
Installation method: Aerial, conduit, cable trench.
Operating temperature: -40℃~+70℃
Cable specification:
|
Fiber count |
Out diameter (mm) |
Cable Wt. (Kg/km) |
Max. tensile strength (N) |
Max. crush resistance (N/10mm) |
|
2-30 |
10.2 |
93 |
1500 |
1000 |
|
32-36 |
10.6 |
106 |
1500 |
1000 |
|
38-60 |
11.2 |
109 |
1500 |
1000 |
|
62-72 |
11.8 |
135 |
1500 |
1000 |
|
74-96 |
13.2 |
145 |
1500 |
1000 |
|
98-108 |
13.9 |
170 |
1500 |
1000 |
|
146-216 |
16.6 |
225 |
1500 |
1000 |
Cable cross-section:
