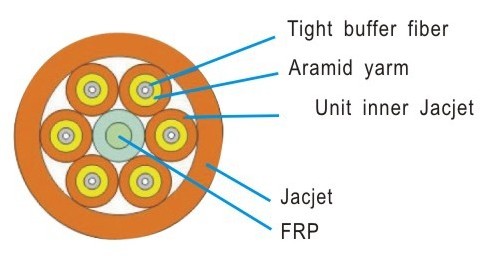

Cross-Section Diagram

Features: Tight buffer fiber

              Aramid yarn

              Non-mental central strength member FRP

              PVC jacket

Installation method: Duct

Temperature range: -20℃~+70℃

Cable specifications:

Fiber countOut diameter

(mm)Cable weight

(kg/km)

Max tensile strength(N)Min. bending radius(N)Max. crush resistance (N/100mm)Short-termLong-termDynamicStaticShort-termLong-term4-107.0-12.252-110200-66090-20020D

10D1000300
