articulating tv mount
;){kind=small}
Products description:
|

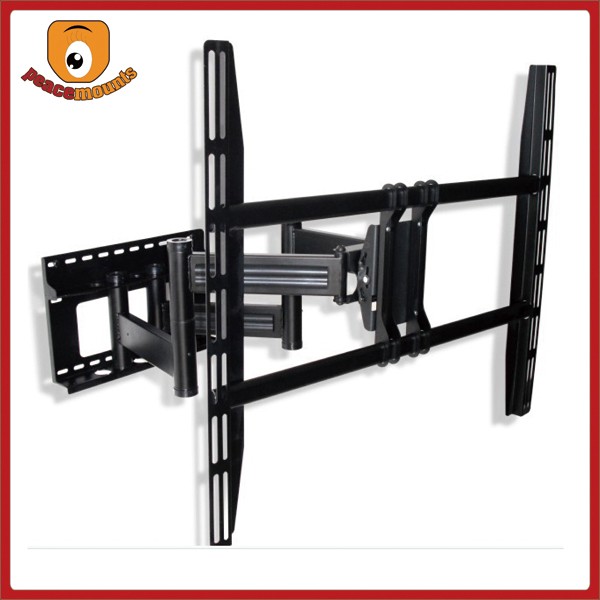

This adjustable tilting/swiveling wall mount
bracket gives you a rock solid platform to mount your flat panel display onto.
The long cantilever arms provide smooth and easy movement and a wide range of
motion. Display mounting arms easily adjust to fit a wide range of mounting
patterns. Cable management covers keep cords neat and hidden.
Features:
- Supports VESA compliant mounting patterns
up to 850x750.
- Minimum VESA mounting pattern: 400x400.
This mount is NOT compatible with displays that have mounting patterns smaller
than 400x400.
- Maximum weight capacity: 300lbs
(136kg)
- Convenient and easy to use tilt lock
lever.
- Includes all necessary mounting hardware
for mounting to wooden studs, concrete, or solid block.
- Distance from the wall when fully
retracted: 5".
- Extension arm reaches a maximum of 30" from
the wall when fully extended.
- Integrated cable management
covers.
- Wall plate dimensions: 18.5" wide x 11.25"
tall.
- Maximum tilt: 15 degrees.
- Maximum swivel: 90 degrees in each
direction left/right (180 degrees).
|
| SPECIFICATIONS | |
| Model # | CHA-72 |
| Type | Articulating |
| Minimum VESA | 400 x 400 |
| Maximum VESA | 850 x 750 |
| Maximum Weight | 300 lbs |
| Minimum Req. Display Size | 52" |
| Maximum Req. Display Size | 72" |
| Minimum Extension | 5" |
| Maximum Extension | 30" |
| Tilt Range | 15 degrees |
| Swivel Range | 180 degrees |
| Construction | Steel |
| Color | Black |
| Wall Plate Dimensions | 18.5" x 11.25" |
| Front Plate Dimensions | 33.6"*31.5" |
| Built In Level | No |
| Cable Management | Yes |
| Notes: |
