TV swivel bracket
;){kind=small}
Products description:
| Adjustable Tilting/Swiveling TV Wall Mount Bracket for LCD LED Plasma - Corner Friendly (Max 80Lbs, 24~46inch) |
|

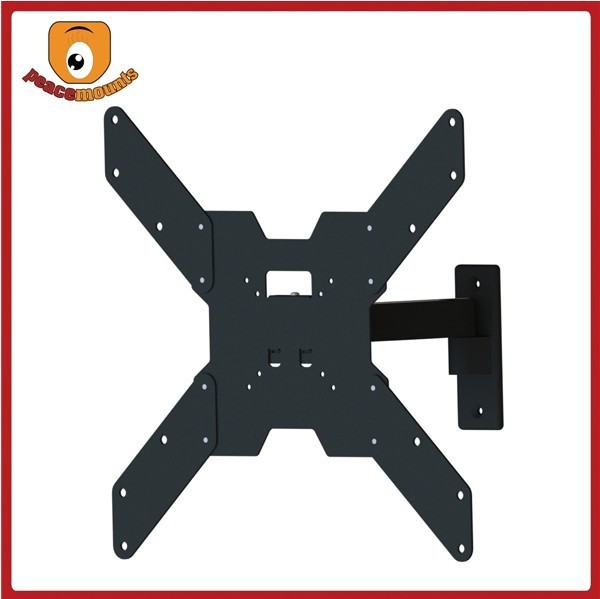

The AM1-400 Adjustable Tilting/Swiveling Wall
mount bracket gives you a rock solid platform to mount your flat panel display
onto. The long cantilever arm provides smooth and easy movement and a wide range
of motion. The monitor mounting plate is able to tilt, swivel, and
pan.
Corner friendly design due to extension arm
orientation. Check out the images!
Features:
- Full motion mount with tilting, swiveling,
and pan functions.
- Includes all necessary mounting
hardware.
- Fits VESA patterns 75x75, 100x100,
200x200,200x300,300x400,400x400
- Tilts up to 15 degrees.
- Pan up to 5 degrees left to
right.
- Mounts to a single stud.
- Maximum load capacity: 80lbs
- Fixed 10" arm
length
|
| SPECIFICATIONS | |
| Model # | AM1-400 |
| Type | Articulating |
| Minimum VESA | 75 x 75 |
| Maximum VESA | 400 x 400 |
| Maximum Weight | 80 lbs |
| Minimum Req. Display Size | 24" |
| Maximum Req. Display Size | 46" |
| Minimum Extension | 3.23" |
| Maximum Extension | 10" |
| Tilt Range | 15 degrees |
| Swivel Range | 180 degrees |
| Construction | Aluminum |
| Color | Black |
| Wall Plate Dimensions | 6.5" x 2" |
| Front Plate Dimensions | 9.1"*9.1" |
| Built In Level | No |
| Cable Management | Yes |
| Notes: | Corner friendly |
Product Images:
