Low Profile Fixed TV Wall Mount Bracket for LCD LE
Products Visitors:456
- Product Name:Low Profile Fixed TV Wall Mount Bracket for LCD LE
- Package:carton boxes
- Model:F37
;){kind=small}
Products description:
This high quality low profile TV wall mount sits a super slim 17mm (approximately .7") from the wall and will support VESA compliant displays with mounting patterns up to 200x200.
Features:
- Low profile design that sits less than an inch from
the wall! (Approximately .7")
- Supports VESA compliant displays with mounting
patterns of 75x75, 100x100, and 200x200.
- Maximum load capacity: 80lbs (36kg)
| SPECIFICATIONS | |
| Model # | MHF-37 |
| Type | Low Profile |
| Minimum VESA | 75 x 75 |
| Maximum VESA | 200 x 200 |
| Maximum Weight | 80 lbs |
| Minimum Req. Display Size | 24" |
| Maximum Req. Display Size | 37" |
| Minimum Extension | .7" |
| Maximum Extension | N/A |
| Tilt Range | N/A |
| Swivel Range | N/A |
| Construction | Steel |
| Color | Black |
| Wall Plate Dimensions | 3.9"*2.4" |
| Front Plate Dimensions | 9.1"*9.1" |
| Built In Level | No |
| Cable Management | No |
| Notes: | Brick/concrete only |

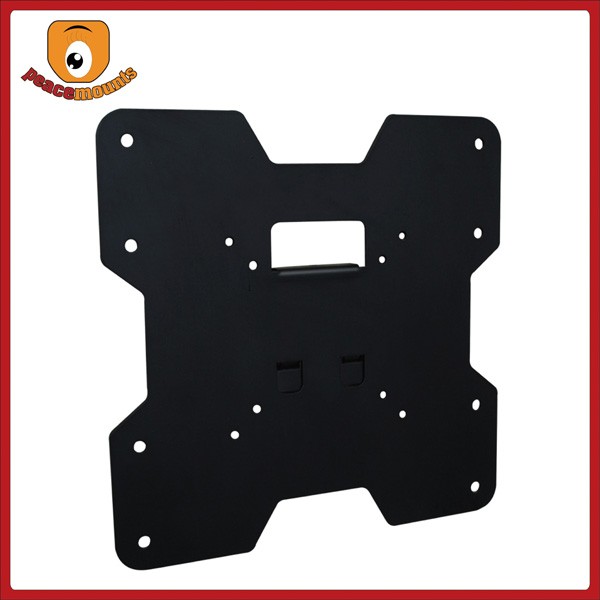

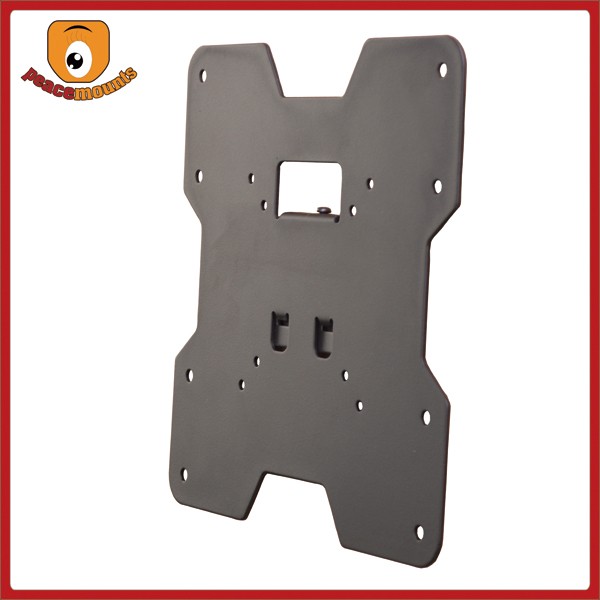

Product Images:
