Articulating Swiveling Fits Up to 72' tv wall moun

Original Image

Products Visitors:249

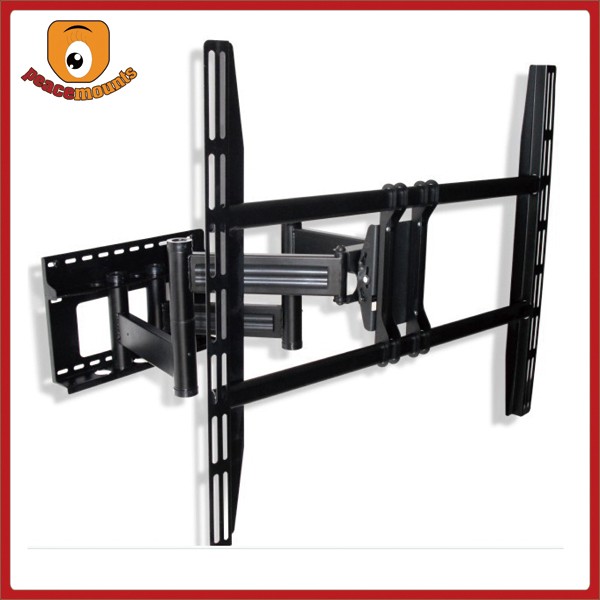

Product Name:Articulating Swiveling Fits Up to 72' tv wall moun
Package:carton boxes
Model:A72

Products description:

This adjustable tilting/swiveling wall mount bracket gives you a rock solid platform to mount your flat panel display onto. The long cantilever arms provide smooth and easy movement and a wide range of motion. Display mounting arms easily adjust to fit a wide range of mounting patterns. Cable management covers keep cords neat and hidden.

Features:

- Supports VESA compliant mounting patterns up to 850x750.

- Minimum VESA mounting pattern: 400x400. This mount is NOT compatible with displays that have mounting patterns smaller than 400x400.

- Maximum weight capacity: 300lbs (136kg)

- Convenient and easy to use tilt lock lever.

- Includes all necessary mounting hardware for mounting to wooden studs, concrete, or solid block.

- Distance from the wall when fully retracted: 5".

- Extension arm reaches a maximum of 30" from the wall when fully extended.

- Integrated cable management covers.

- Wall plate dimensions: 18.5" wide x 11.25" tall.

- Maximum tilt: 15 degrees.

- Maximum swivel: 90 degrees in each direction left/right (180 degrees).

SPECIFICATIONS
Model #	CHA-72
Type	Articulating
Minimum VESA	400 x 400
Maximum VESA	850 x 750
Maximum Weight	300 lbs
Minimum Req. Display Size	52"
Maximum Req. Display Size	72"
Minimum Extension	5"
Maximum Extension	30"
Tilt Range	15 degrees
Swivel Range	180 degrees
Construction	Steel
Color	Black
Wall Plate Dimensions	18.5" x 11.25"
Front Plate Dimensions	33.6"*31.5"
Built In Level	No
Cable Management	Yes

Product Images:
