Articulating Black TV Wall Mount Bracket A100
Products Visitors:367
- Product Name:Articulating Black TV Wall Mount Bracket A100
- Package:carton boxes
- Model:A100
;){kind=small}
Products description:

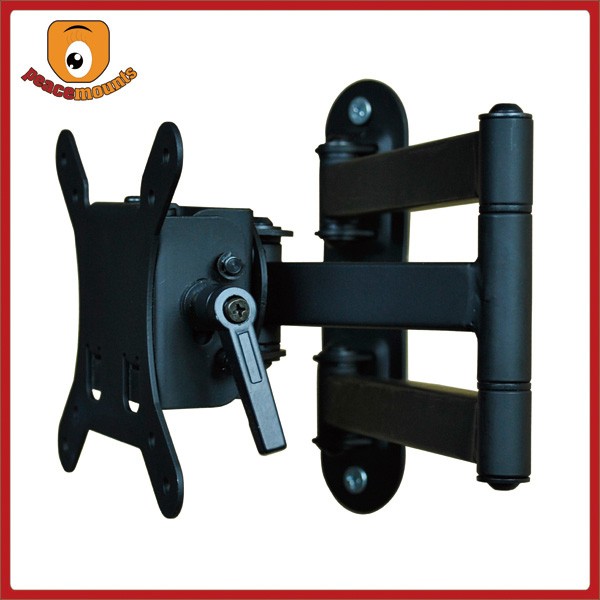

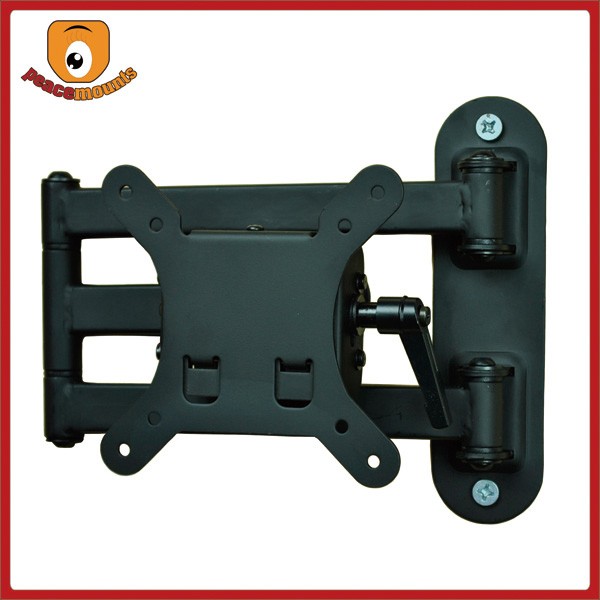

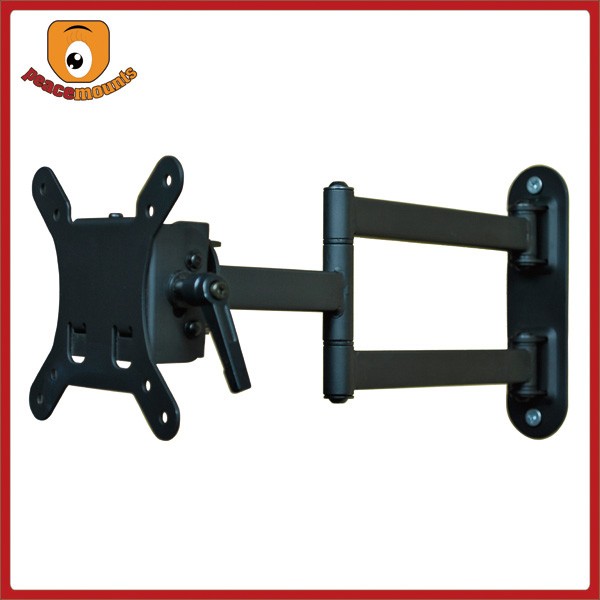

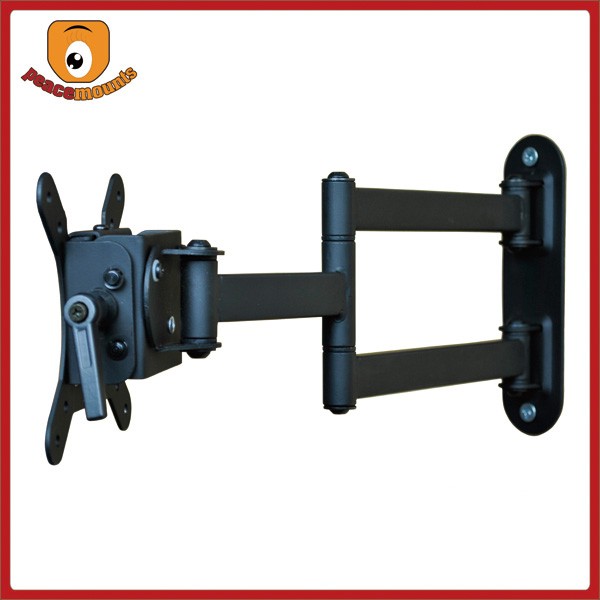

The Articulating Black TV Bracket CHA100
Adjustable Tilting/Swiveling Wall mount bracket gives you a rock solid platform
to mount your flat panel display onto. The long cantilever arm provides smooth
and easy movement and a wide range of motion. Display mounting arms easily
adjust to fit a wide range of mounting patterns.
- Supports VESA :: 75x75 or 100x100
- Max Load Capacity :: 30 lbs
- Min / Max Extension :: 2.5" - 13.5"
| SPECIFICATIONS | |
| Model # | CHA-100 |
| Type | Articulating |
| Minimum VESA | 75mm x 75mm |
| Maximum VESA | 100mm x 100mm |
| Maximum Weight | 30 lbs |
| Minimum Req. Display Size | 10" |
| Maximum Req. Display Size | 24" |
| Minimum Extension | 2.5" |
| Maximum Extention | 13.5" |
| Tilt Range | 15 degrees |
| Swivel Range | 180 degrees |
| Construction | Steel |
| Color | Black |
| Wall Plate Dimensions | 6.7"*1.8" |
| Front Plate Dimensions | 4.7"*4.7" |
| Built In Level | No |
| Cable Management | No |
| Notes: |
Product Images:
