Aluminum Swivel/articulating TV Mounts
Products Visitors:253
- Product Name:Aluminum Swivel/articulating TV Mounts
- Model:AM3
- Package:carton boxes
;){kind=small}
Products description:

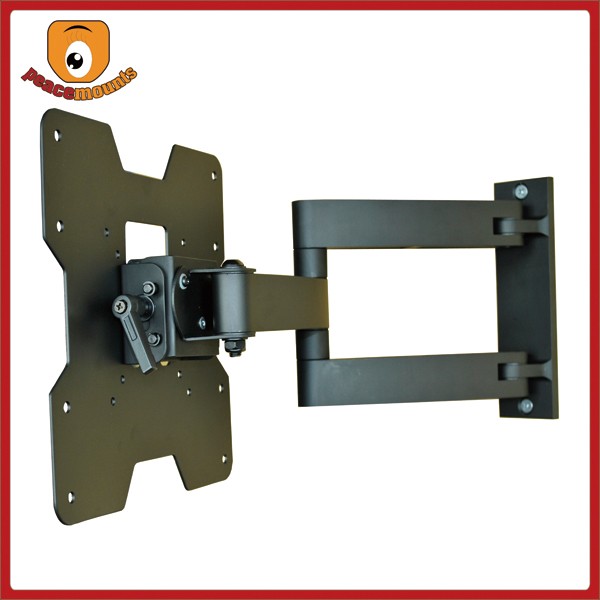

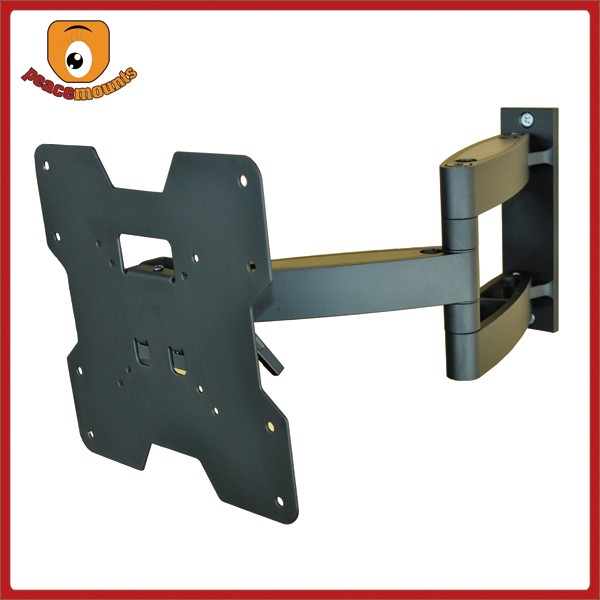

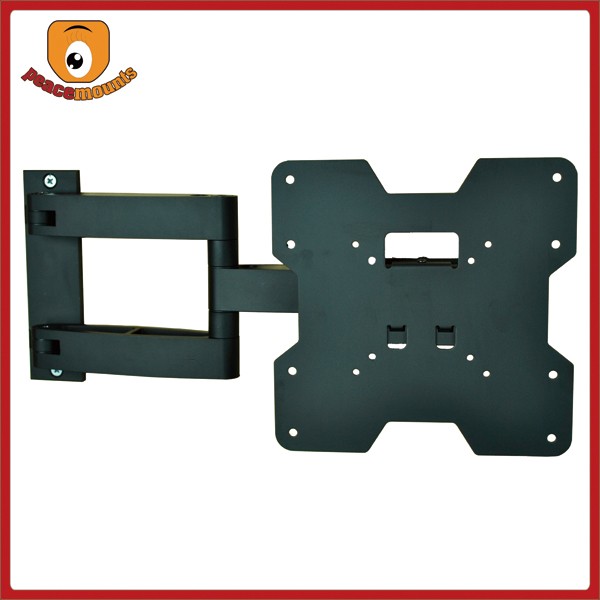

AM-3 Adjustable Tilting/Swiveling Wall mount
bracket gives you a rock solid platform to mount your flat panel display onto.
The long cantilever arm provides smooth and easy movement and a wide range of
motion. The monitor mounting plate is able to tilt, swivel, and
pan.
Corner friendly design due to extension arm
orientation. Check out the images!
Features:
- Full motion mount with tilting, swiveling,
and pan functions.
- Includes all necessary mounting
hardware.
- Fits VESA patterns 75x75, 100x100, 200x100,
200x200.
- Tilts up to 15 degrees.
- Pan up to 5 degrees left to
right.
- Mounts to a single stud.
- Maximum load capacity: 80lbs
- Maximum extension from wall:
16.5"
| SPECIFICATIONS | |
| Model # | AM-3 |
| Type | Articulating |
| Minimum VESA | 75 x 75 |
| Maximum VESA | 200 x 200 |
| Maximum Weight | 80 lbs |
| Minimum Req. Display Size | 24" |
| Maximum Req. Display Size | 37" |
| Minimum Extension | 3.23" |
| Maximum Extension | 16.5"" |
| Tilt Range | 15 degrees |
| Swivel Range | 180 degrees |
| Construction | Aluminum |
| Color | Black |
| Wall Plate Dimensions | 6.5" x 2" |
| Front Plate Dimensions | 9.1"*9.1" |
| Built In Level | No |
| Cable Management | Yes |
| Notes: | Corner friendly |
Product Images:
