Aluminum Articulating TV Wall Mounts Up to 46'
Products Visitors:245

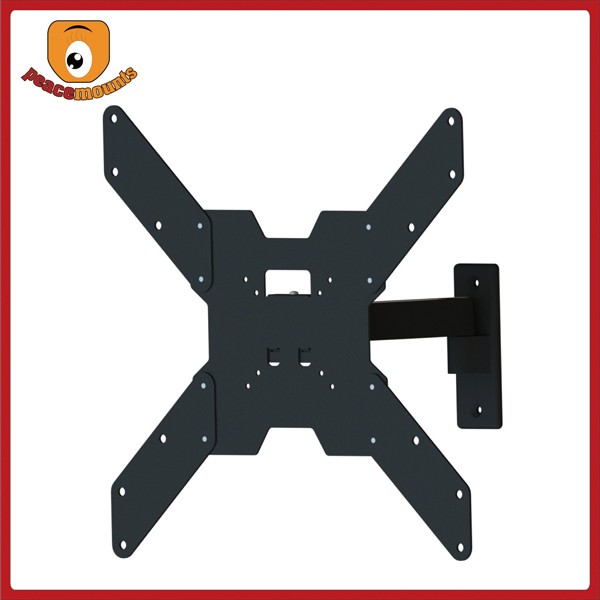

- Product Name:Aluminum Articulating TV Wall Mounts Up to 46'
- Model:AM1-400
- Package:carton boxes
;){kind=small}
Products description:
The AM1-400 Adjustable Tilting/Swiveling Wall
mount bracket gives you a rock solid platform to mount your flat panel display
onto. The long cantilever arm provides smooth and easy movement and a wide range
of motion. The monitor mounting plate is able to tilt, swivel, and
pan.
mount bracket gives you a rock solid platform to mount your flat panel display
onto. The long cantilever arm provides smooth and easy movement and a wide range
of motion. The monitor mounting plate is able to tilt, swivel, and
pan.
Corner friendly design due to extension arm
orientation. Check out the images!
orientation. Check out the images!
Features:
- Full motion mount with tilting, swiveling,
and pan functions.
and pan functions.
- Includes all necessary mounting
hardware.
hardware.
- Fits VESA patterns 75x75, 100x100,
200x200,200x300,300x400,400x400
200x200,200x300,300x400,400x400
- Tilts up to 15 degrees.
- Pan up to 5 degrees left to
right.
right.
- Mounts to a single stud.
- Maximum load capacity: 80lbs
- Fixed 10" arm length
| SPECIFICATIONS | |
| Model # | AM1-400 |
| Type | Articulating |
| Minimum VESA | 75 x 75 |
| Maximum VESA |
400 x 400 |
| Maximum Weight | 80 lbs |
|
Minimum Req. Display Size |
24" |
|
Maximum Req. Display Size |
46" |
|
Minimum Extension |
3.23" |
|
Maximum Extension |
10" |
| Tilt Range |
15 degrees |
| Swivel Range |
180 degrees |
| Construction | Aluminum |
| Color | Black |
|
Wall Plate Dimensions |
6.5" x 2" |
|
Front Plate Dimensions |
9.1"*9.1" |
|
Built In Level |
No |
|
Cable Management |
Yes |
| Notes: |
Corner friendly |
Product Images:
