Type

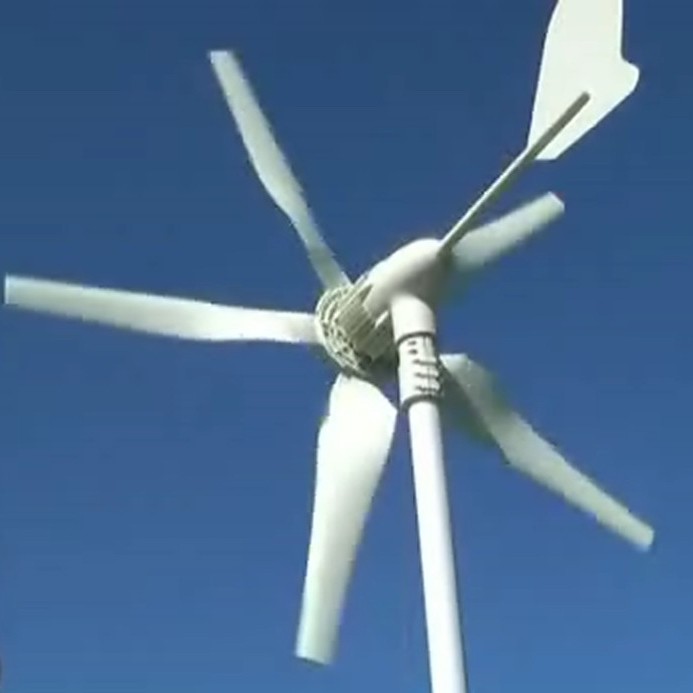

HY-1000WL

Rated Output

1000W

Peak Output

1200W

Rated Voltage(V)

DC 24/48

Start-up Speed

2.5m/s

Cut-in Speed

3m/s

Rotor Diameter(m)

1.96

Swept Area (m2)

3

Rated Charging Current (A)

41.7/20.8

KWH/Month (Monthly Avg. V=5.5m/s)

175

Net Weight

28kg

Quantity of Blades

5

Rated Rotor Speed (RPM)

750

Rated Wind Speed(m/s)

12m/s

System Average Cp.

≥0.36

Working Temp. Range °C

from -40°C to 60°C

Survival Max. Wind

50m/s or 110mph

Over-speed Control

Electromagnetic & blade aerodynamic braking

Blade Material

Reinforced nylon glass-fiber

Generator Type

Brushless 3-phase with permanent Neodymium Magnet

Generator Material

Aluminum alloy body & precision stainless steel rotor

Noise Level

<20dB (5m behind turbine @ 5m/s gusting)

Tower Connection

Flange connection

Lifespan(years)

15years maintenance free

Warranty (years)

3
