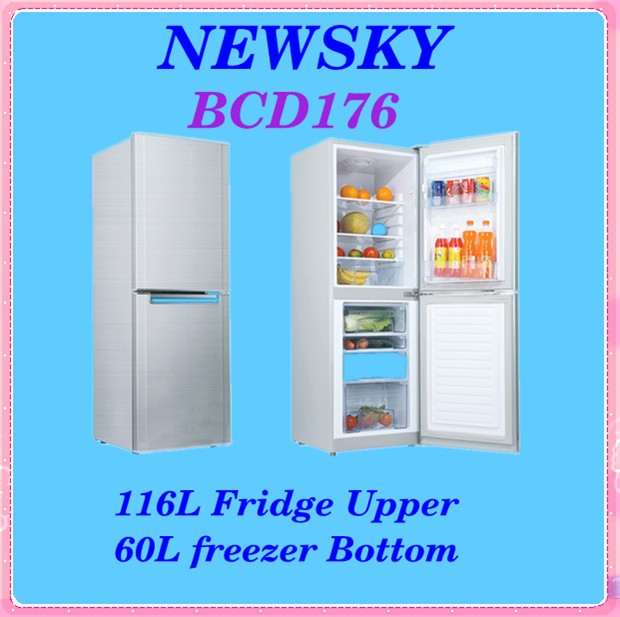

BCD176 Solar Refrigerator Freezer
1.DC 12V/ 24V
2.Solar Power Source
3. CE Certificated
4.Warranty:2 years
Model |
BCD176 |
Power Consumption |
72W |
Input Voltage |
DC 12V/24V |
Capacity |
176 Liters(116L Fridge Upper/60L Bottom Freezer) |
Product Size (mm) |
500(L) × 530(W) × 1450(H) |
Carton Size (mm) |
556(L) × 605(W) × 1504(H) |
N.W./G.W. (kg) |
43/47 |
Loading Quantity |
38 PCS/20GP , 79 PCS/40GP , 79 PCS/40HQ |
Recommended solar system |
solar panel (180W), battery (12V/150AH), controller (12V/150Ah) |
Feature
1.No AC Inverter needed
2.Input voltage automaticrecognition
3.Environmental friendly CFC-free refrigerant (R-134a)
5.Low power consumption
6.Automatically lowvoltage cut out to protect batteries
7.Using AC power throughAC/DC adaptor
8.0°C-10°C (32°F-50°F) forrefrigerator compartment
9.Max -18°C (-0.4°F) for freezer compartment at 30°C (86°F)ambient temperature
Connection Types (optional) :
1.Use Method: AC/DC adaptor
2. Use Method :Controller, solar panels, battery.
3. Use Method :AC/DC adaptor, AC/DC switch, controller, solar panels, battery
Quality guarantee:
1.Warranty: Two years for compressor, one year for everythins else.
2.Provide 1% spare free of charge in 20ft (not included solar panel and battery).
3.We can send the parts free on condition that there is any breakdown with convincing evidence.
Solar refrigerator: 92 L,118 L,142L,158L,176L
ShowCase refrigerator: 185L,208L
Solar freezer: 90L,138L,188L,238L,318L
Portable car freezer: 20 L, 30L, 45L, 55L, 60L, 70L, 80L
Certificated Approval:
MOQ: 5 sets
Delivery time: 15-20 days
Warranty: 2 years for compressor, 1 year for other parts
Payment Term: T/T, L/C, Western Union.
Producing Ability: 5000 sets / month
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
