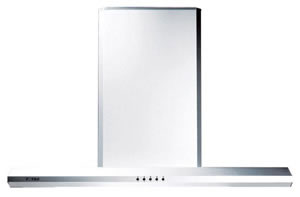

Name:Chimney Hood CXW-200-EH04S
Model:CXW-200-EH04S
Features of kitchen chimney hood:
- Thin cold-rolled steel with acrylic painted surface;
- Galvanized steel blade wheel and teflon coated blade contribute to good corrosion resistance and high oil guiding effect;
- Wide air inlet t for easy capture of cooking fume;
- Energy –saving cold lighting creates safe operation and long service life;
- Delayed shut-off function;
- Odor reduction factor: 97.1%, Grease absorption factor: 90.2%.

Main technology of kitchen chimney hood:
- Wireless linkage with cooktop: cooker hood induces the open state of the cooktop;
- Adopting the optimized cooking fume collecting technology to improve the collection effect of rising gas in the whole cooking course;
- Proprietary technological "clean and clear filter" combining with "double layer unidirectional half circular arc-shaped oil groove" can enhance the one-off oil filtering capacity while smoothly suck the airflow. It can avoid oil dripping and leakage and create easy cleaning;
- Varied R air passageway is used for smooth discharge of gas and smoke.

Certificates: CE, CB

Technology parameters of range hood:
N.W/1 piece(kg)     27.5
G.W/1 piece(kg)     33
Product Dimensions (mm)     895×515×560
Dimensions (mm)     995×640×625
vol.(m3)     0.3884
Power supply     220V—240V
Noise level(dB)     ≤57
Illumination power(W)     1.5×2
The maximum wind pressure(Pa)     ≥290
Wind pressure standard(Pa)     ≥230
Air flow(m3/h)     900
Motor power(W)     200
