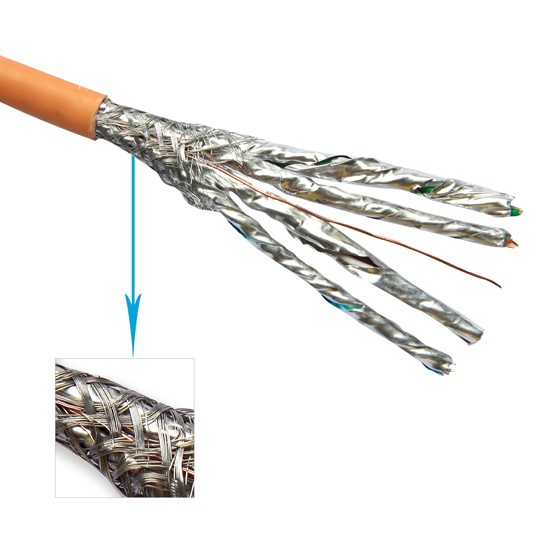

Features:
With solid bare copper (22AWG)
LSZH (orange) jacket, 600MHz with fluke test, 4,300/1,800X pass
Twisted pair screen: aluminum foil
Conductor insulation material: halogen-free foam/skin
Cable jacket material: halogen-free and flame-retardant
OEM orders are welcome
Sheath:
Sheath material: LSZH or PVC
Nominal diameter: 7.50 &177;0.2mm
Average thickness: 0.55mm
Point thickness: 0.45mm (minimum)
Applications:
10GBASE-T Ethernet, 1000BASE-Tx Gigabit Ethernet, 10BASE-T fast Ethernet (IEEE 802.3), 100 VG-AnyLAN (IEEE802.12), 155/622Mbps ATM, 550MHz broadband video, voice, T1 and ISDN
Standard compliance:
All proposed CAT7 requirements as per ANSI/TIA/EIA, ISO/IEC and CENELEC EN standards
Flame retardancy is verified according to IEC 60332-1-2
Electrical performances:
Spark test: 1,050V AC
Dielectric strength: 2,500V DC/three seconds
Insulation resistance test (minimum): 150M&937;/km
Conductor resistance (maximum): 9.38&937;/100m at 20&176;C
Resistance unbalance: 2&37; (maximum)
Capacitance unbalance: 160pF/100m (maximum)
Mutual capacitance: 5,600pF/100m (maximum)
Packaging: 305m/box
