1. Description:

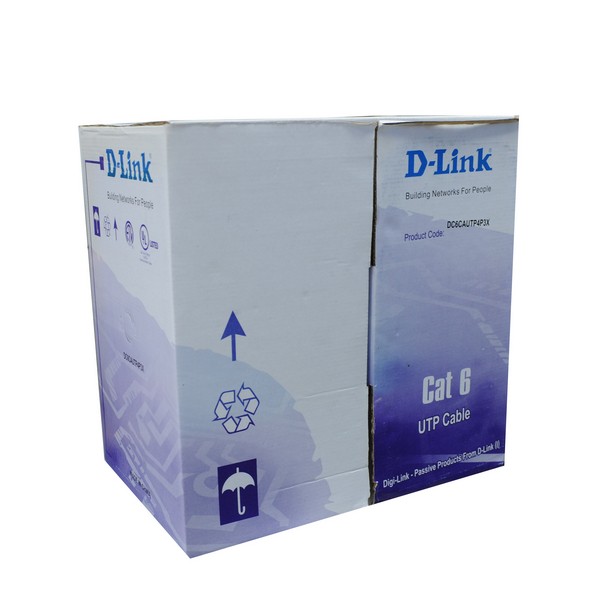

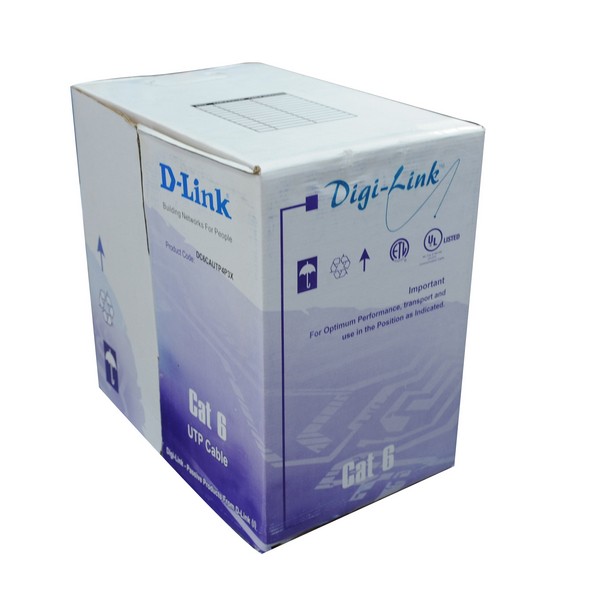

Category 6 UTP Cable(Cat 6 Cable) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
2. Standard:ISO/IEC11801
ANSI/EIA/TIA-568-B.2-1
3.Structure:
Conductor: Class 1 solid plain copper
Insulation: HDPE(High Density Polyethylene)
Jacket: PVC(Polyvinyl Chloride) or LSZH(Low Smoke Zero Halogen)
4.Electrical Characteristics:
Frequency
MHz
Attenuation
dB/100m
NEXT
dB
PS-NEXT
dB
RL
dB
ELFEXT
dB
PS-ELFEXT
dB
1
1.9
74.0
72.3
20.0
68.0
65.0
4
3.7
65.0
63.3
23.0
56.0
53.0
8
5.3
60.7
48.8
24.5
49.9
46.9
10
5.9
59.0
57.3
25.0
48.0
45.0
16
7.5
56.0
54.2
25.0
43.9
40.9
20
8.4
55.0
52.6
25.0
42.0
39.0
25
9.5
53.3
41.3
24.3
40.0
37.0
31.25
10.6
52.0
49.9
23.6
38.1
35.0
62.50
15.4
47.0
45.4
21.5
32.1
29.1
100
19.8
44.0
42.3
20.1
28.0
25.0
200
29.0
40.0
37.8
18.0
22.0
19.0
250
32.8
38.0
36.3
17.3
20.0
17.0
