wind turbine generator






Detailed Product Description


small wind turbine
1.CE proved+7 patents
2.high efficiency+small size
3.NO MOQ+wholesale price
4.professional factory

small wind turbine

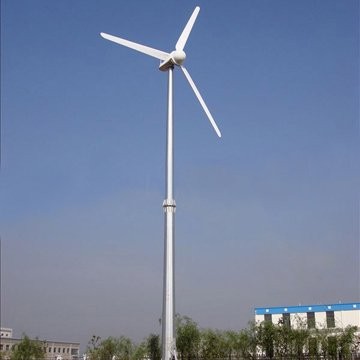

Hummer 10000w Wind Turbine which features high efficiency and low rated wind speed introducing several patented technologies and some special materials.

Off grid style H8.0-10000W is matched with wind-solar hybrid inverter controller, which can connect solar panel within 3000w simultaneously.

Inside , the wind-solar hybrid inverter system adopts CPU smart control . Control circuit is simplified , made of reliable and sensititive to outside environment change .

It is also designed with protection against overload ,over current and over heat . When there is no load for a long time , CPU will shut down the inverter to protect the battery .

User can check various working data on the LCD screen in front panel , or view through computer which can be linked to the inverter through RS485 port by side . We supply standard software for computer use .

Grid tied style of H8.0-10000W is matched with special HUMMER grid-tied inverter system ,which deisgned for state grid connection .

The special grid-tied inverter system adopts IGBT modules to greatly enhance sytem efficiency ,and introducing automatic optimization technology of MPPT to improve the system generation capacity .


Application of Model H8.0-10000W

It can drive air-condition (8-10 horsepower), 3kw water pump or other resistive appliances (≤10KW)

Well used in:

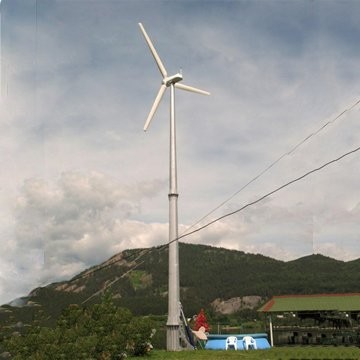

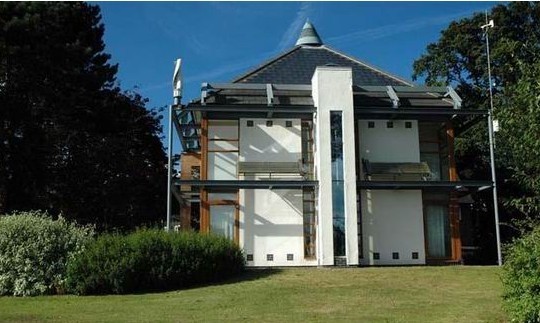

 Housing and factory and farm
 Telecommunication Station
 TV Transfer Station
 Monitoring Station (military, hydrology, observatory)
 Water-pumping Station
 shipping


Main technical data

Rated power (W) 10000
Maximum output power (W) 15000
Charging voltage (V) DC 240
Blade quantity 3
Rotor blade material GRP
Rotor blade diameter (ft.) 26  (8.0m)
Start-up wind speed (mph) 7    (3.0m/s)
Rated wind speed (mph) 22   (10.0m/s)
Rated rotating rate (r/min) 200
Wind energy utilizing ratio (Cp) 0.40
Generator output Frequency conversion AC
Rated charging current (A) 41.7
The maximum charging current (in a short time) (A) 65
Output AC frequency (Hz) 0~280
Generator efficiency >0.85
Free standing tower diameter (in.) 35.4*Ø24.8  (900*630mm)
Tower height (ft.) 49    (15m)
The weight of generator (lb) 633  (287kg)
Suggested Battery (Ah) 600/800
